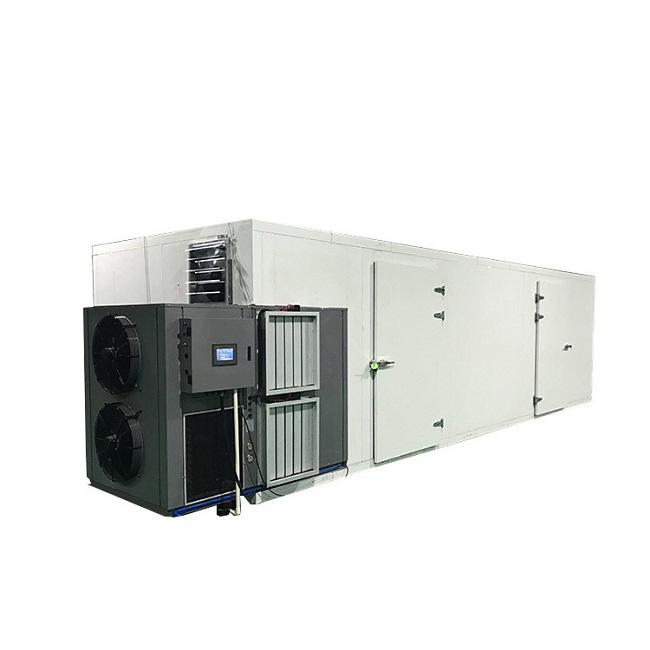

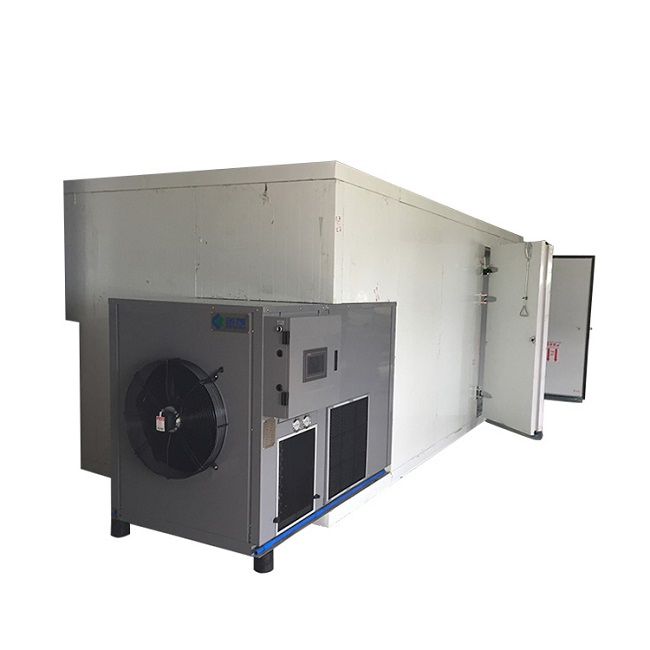

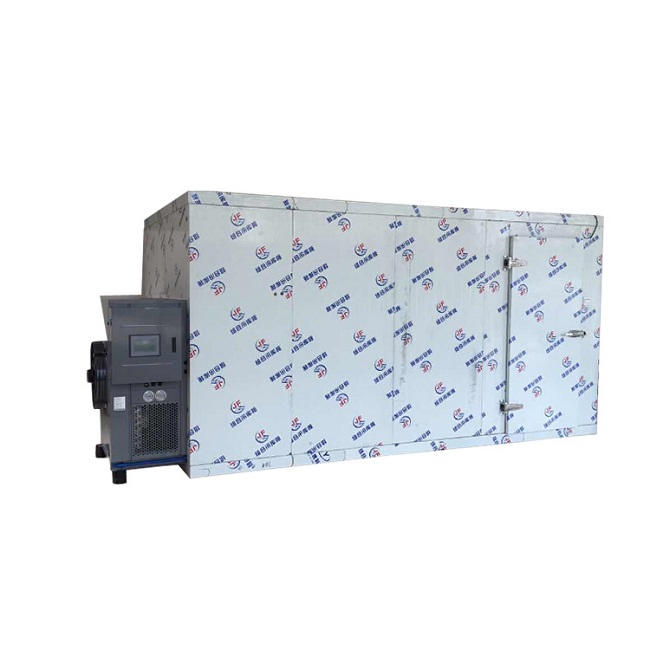

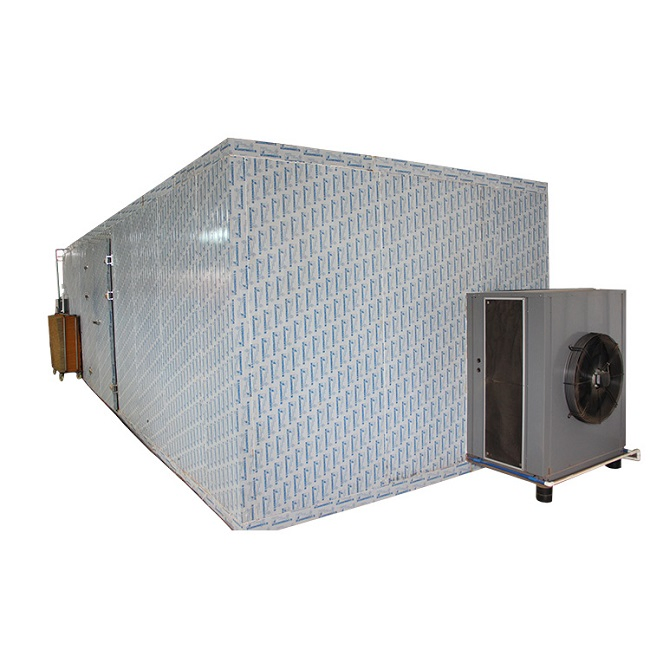

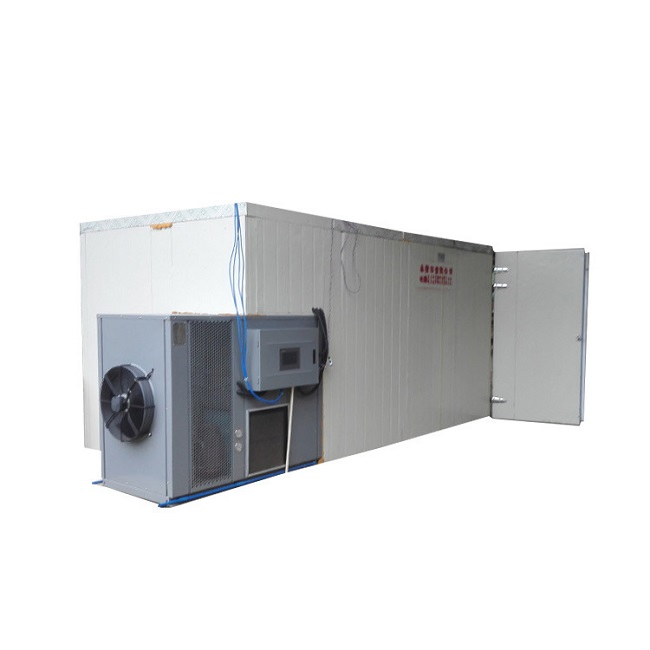

Multiple Temperature Control Meat Drying Equipment Industrial Meat Drying Machine Jerky Dryer Dehydrator
Multiple Temperature Control Meat Drying Equipment Industrial Meat Drying Machine Jerky Dryer Dehydrator
Multiple Temperature Control Meat Drying Equipment Industrial Meat Drying Machine Jerky Dryer Dehydrator
Multiple Temperature Control Meat Drying Equipment Industrial Meat Drying Machine Jerky Dryer Dehydrator
Multiple Temperature Control Meat Drying Equipment Industrial Meat Drying Machine Jerky Dryer Dehydrator
1 / 5
Multiple Temperature Control Meat Drying Equipment Industrial Meat Drying Machine Jerky Dryer Dehydrator
Multiple Temperature Control Meat Drying Equipment Industrial Meat Drying Machine Jerky Dryer Dehydrator
Multiple Temperature Control Meat Drying Equipment Industrial Meat Drying Machine Jerky Dryer Dehydrator
Multiple Temperature Control Meat Drying Equipment Industrial Meat Drying Machine Jerky Dryer Dehydrator
Multiple Temperature Control Meat Drying Equipment Industrial Meat Drying Machine Jerky Dryer Dehydrator

Multiple Temperature Control Meat Drying Equipment Industrial Meat Drying Machine Jerky Dryer Dehydrator

Customization: Available
Type: Dryer
Voltage: 380V
Send Inquiry

Product Description

Technical Specifications
Model
DT600H
Power
9.5kw
Drying Capacity
700kg
Heating Capacity
21kw
Material
Stainless Steel
Technology
Air Source Heat Pump
Chamber Size
L6150 x W2190 x H2200mm
Trolley Qty
12 PCS
Tray Qty
192 PCS
Warranty
1 Year
Product Description

Industrial Meat Drying Machine & Jerky Dehydrator

The Heat Pump Drying Machine utilizes the reversed Carnot principle, absorbing heat from the environment and transferring it to the materials within the chamber. This system is managed by an intelligent touch screen controller for precise temperature adjustment with significantly low electricity consumption.

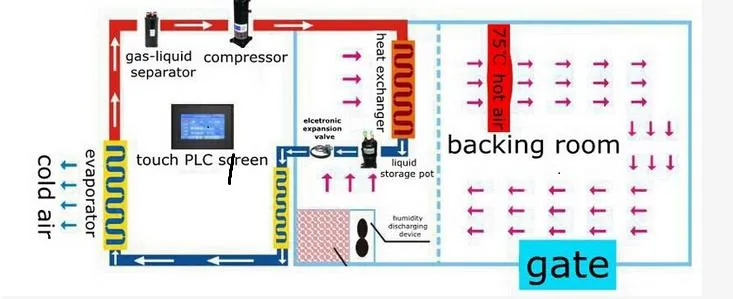

Working Principle
Drying + Dehumidify + Cooling
PLC Touch Screen Control | 7-10 Days Delivery
Model Capacity Options
Model Power Supply Input (KW) Chamber Size (mm) Trolleys Trays Capacity
DT100H220V/1PH3L1655xW1585xH1500136100kg/batch
DT300H380V/3PH5.5L3200xW2190xH2200696300kg/batch
DT600H380V/3PH9.5L6150xW2190xH220012192600kg/batch
DT1200H380V/3PH19.4L6350xW3230xH2200203201300kg/batch
DT1500HD380V/3PH43.6L12470xW4670xH22007211525000kg/batch
Project Showcase & Production
Project 1

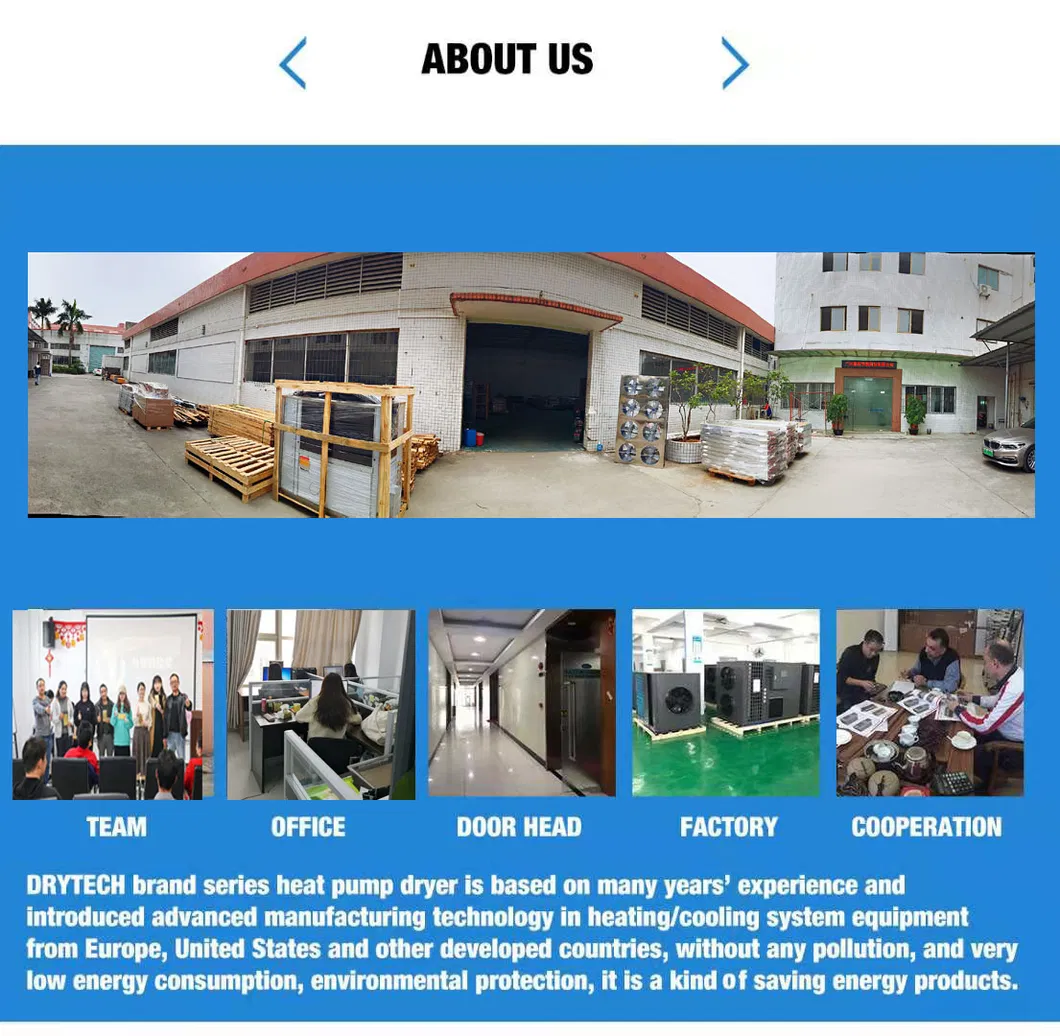

Project 2

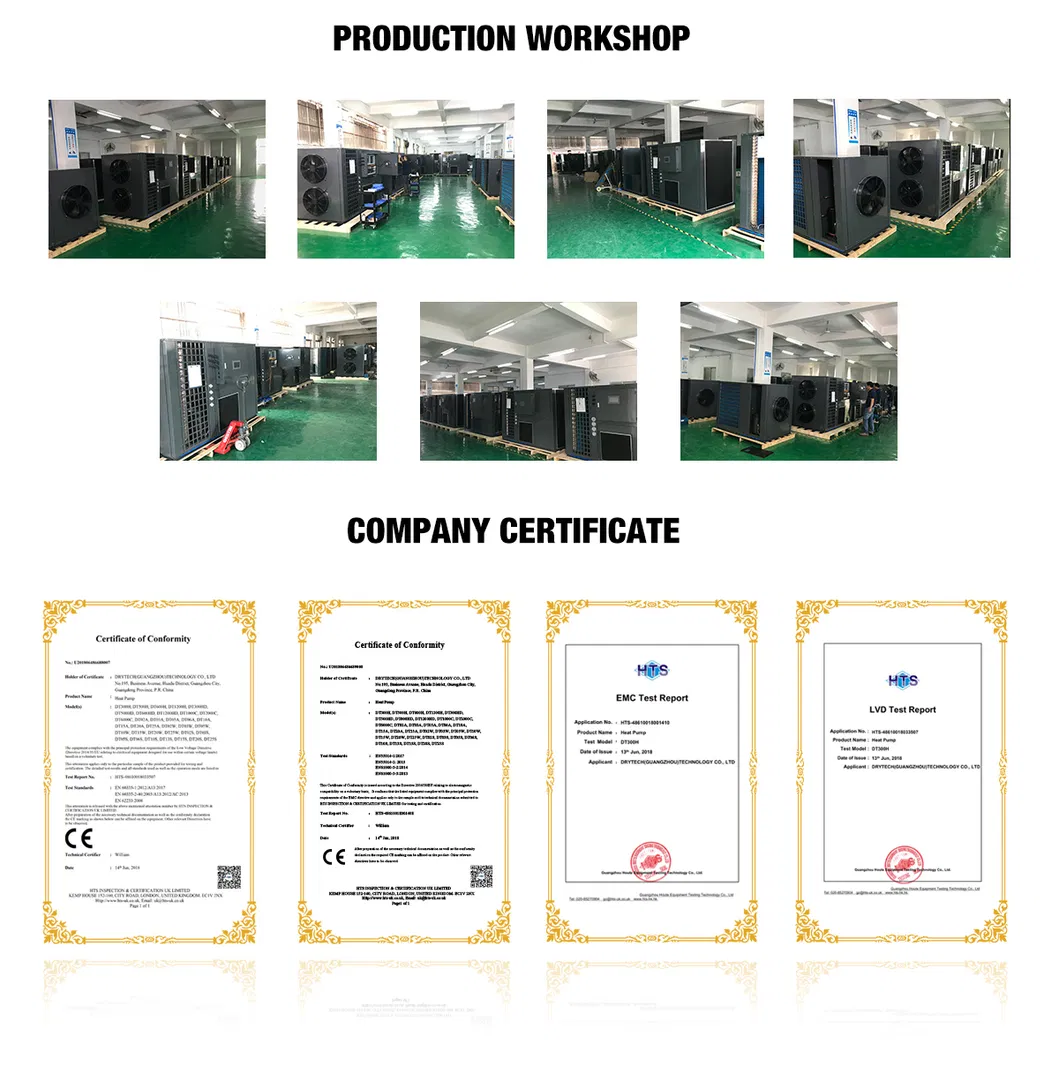

Production

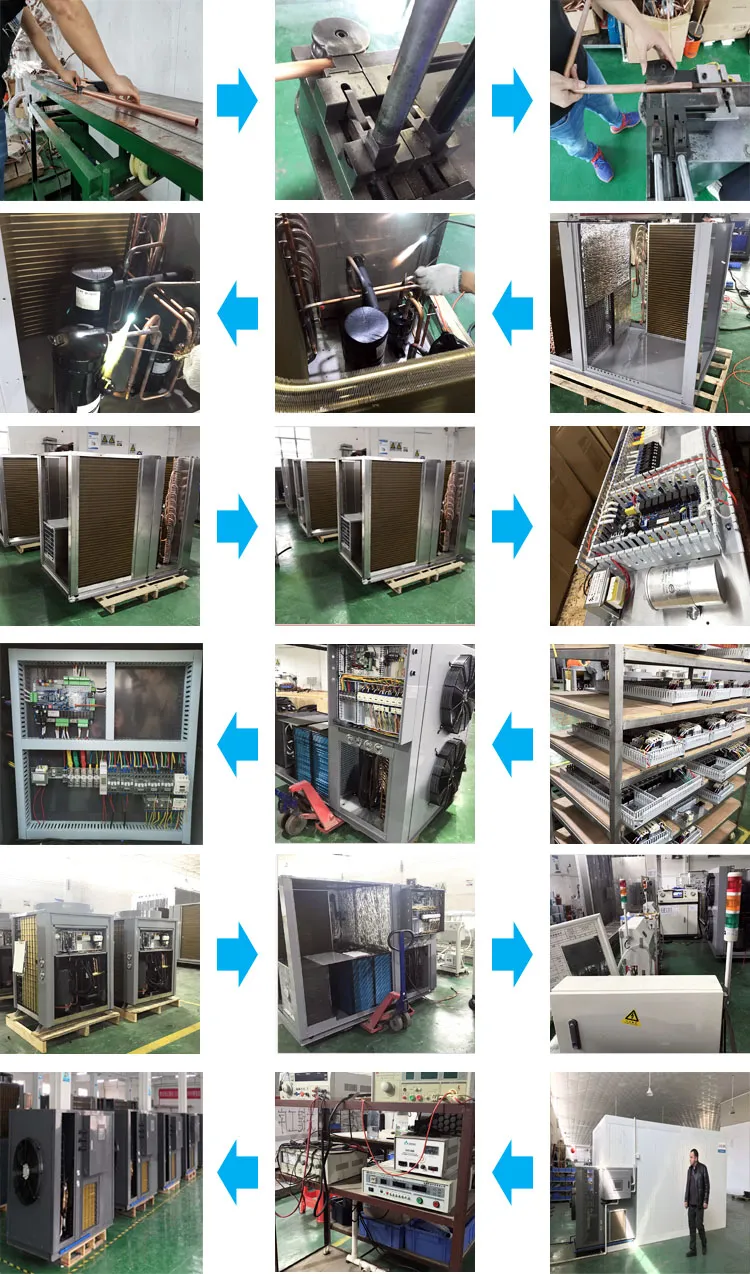

Process

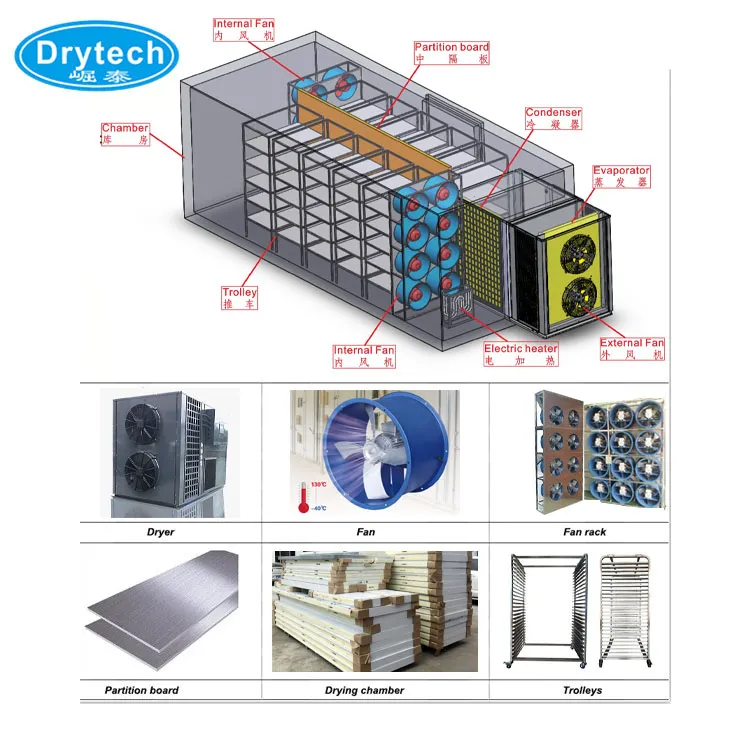

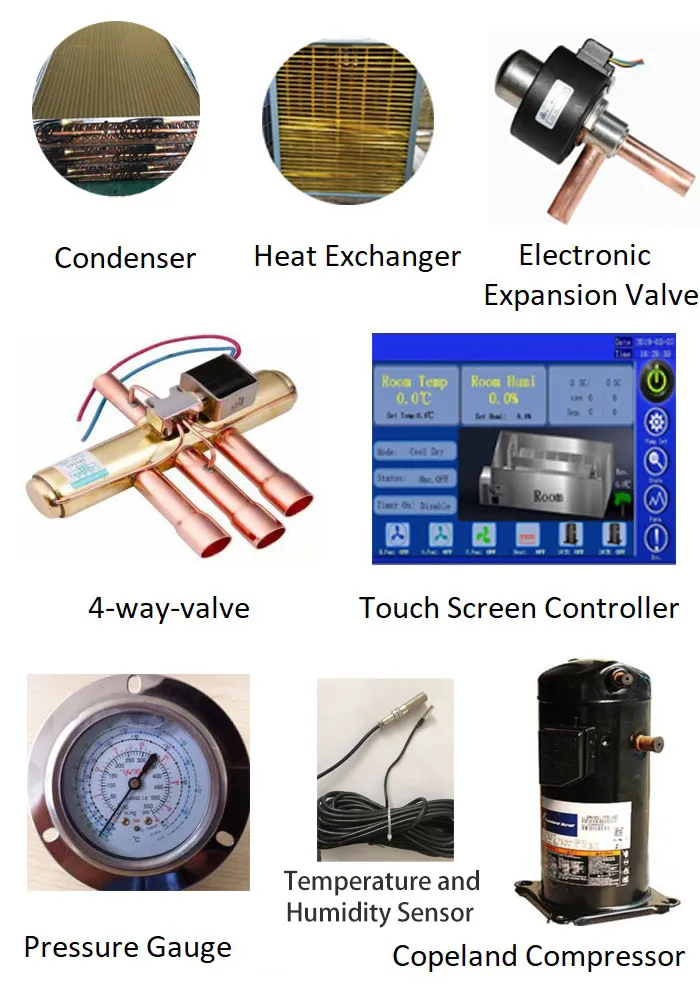

Components
Packaging & Shipping
Packaging 1
Shipping 2
Service & Support
  • Technical Service: Capacity calculation, professional refrigeration and electronic technical support for installation.
  • After-Sales: One-year warranty with technical support for operation and maintenance.
  • Payment: Flexible options including T/T and L/C for container orders.
  • Spare Parts: Available at economic prices both during and after the warranty period.
Frequently Asked Questions
1. What are the main working modes of the dryer?
There are three primary modes: Drying (fast temperature rise), Drying + Dehumidify (temperature rise with moisture discharge), and Cooling (can lower temperature to 10°C).
2. What causes High Pressure Protection?
Common causes include hot air circulating fans not working, overloaded AC contactors, damaged fans, or air blockage caused by over-packing trays.
3. How do I resolve Low Pressure Protection?
Check for gas leaks and repair them. In very cold weather, consider expanding the check time or using low-temperature refrigerant gas.
4. What if the exhaust temperature is too high?
This is usually caused by gas leaks or the electronic expansion valve failing to operate correctly. Check leak points and inspect the valve body.
5. What should I do if moisture discharge is too slow?
Check if the dehumidify fan is damaged, inspect the controller settings, or verify the power supply to the dehumidification system.
6. What is included in the technical service?
We provide capacity calculation, model recommendations, and full electronic and refrigeration technical support for installation and debugging.
