Product Description

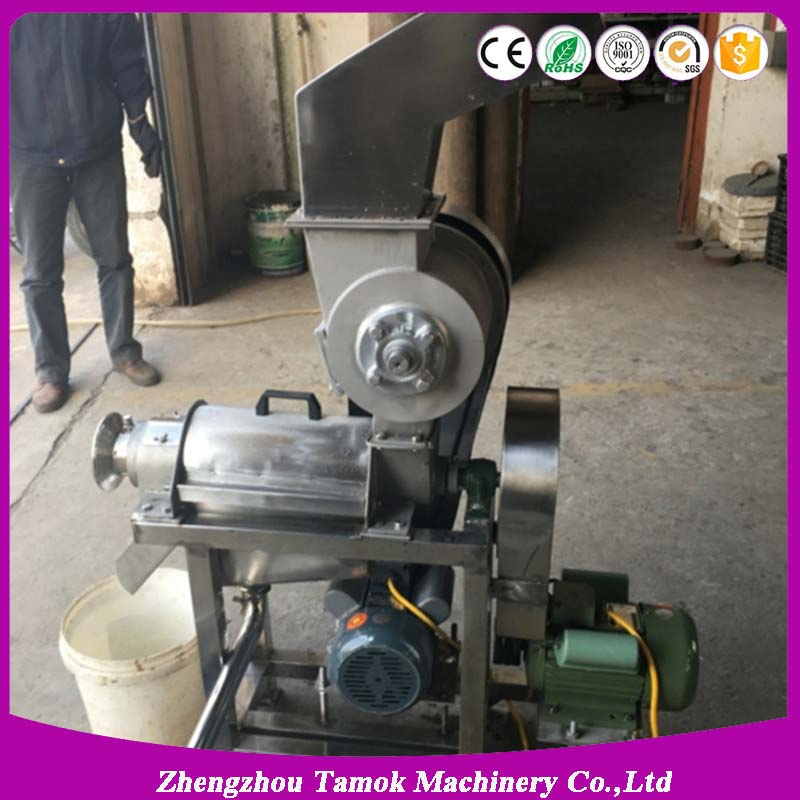

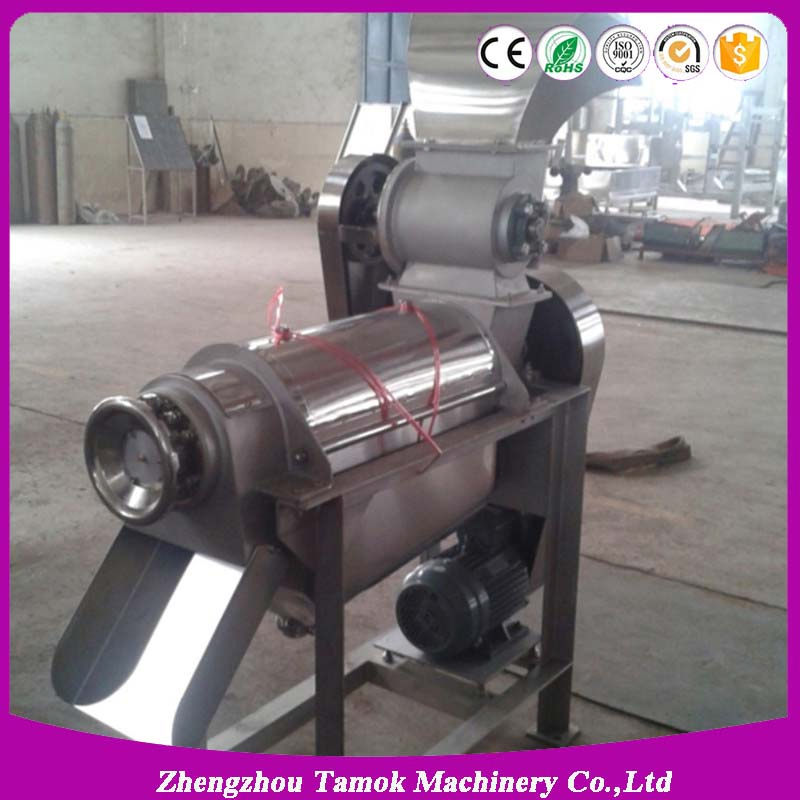

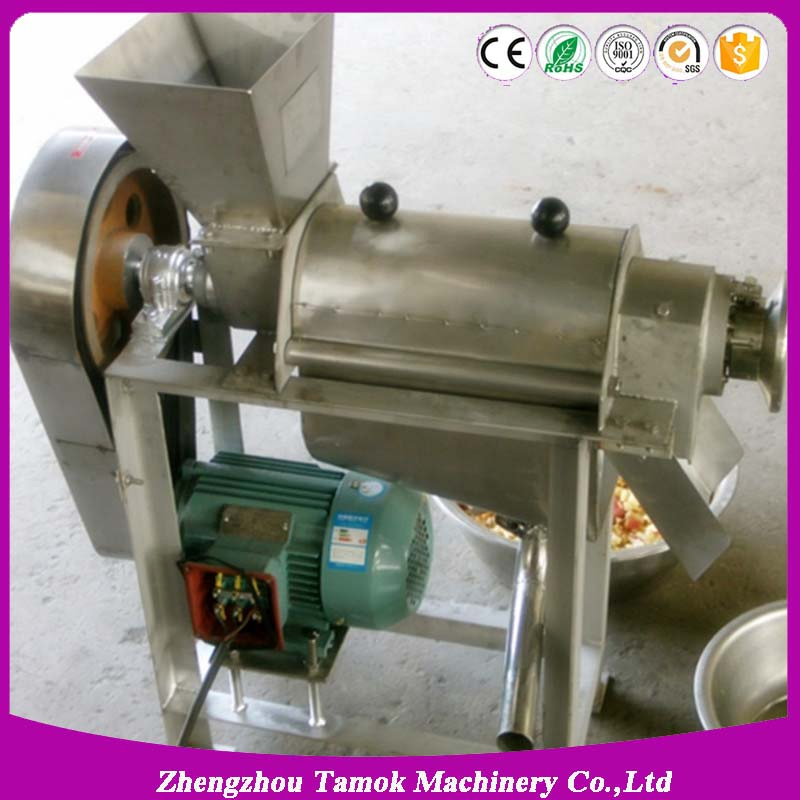

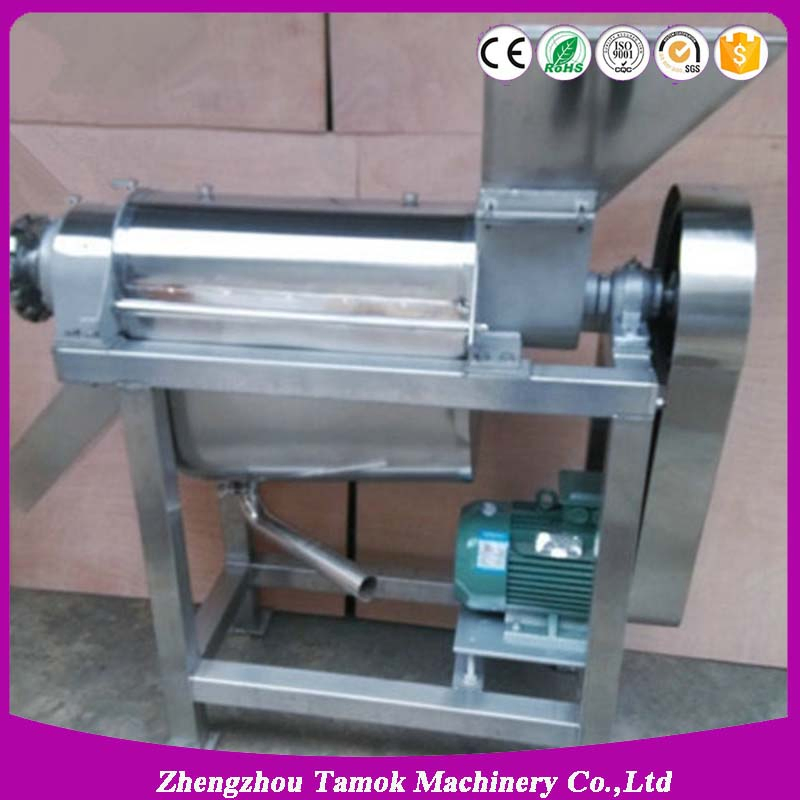

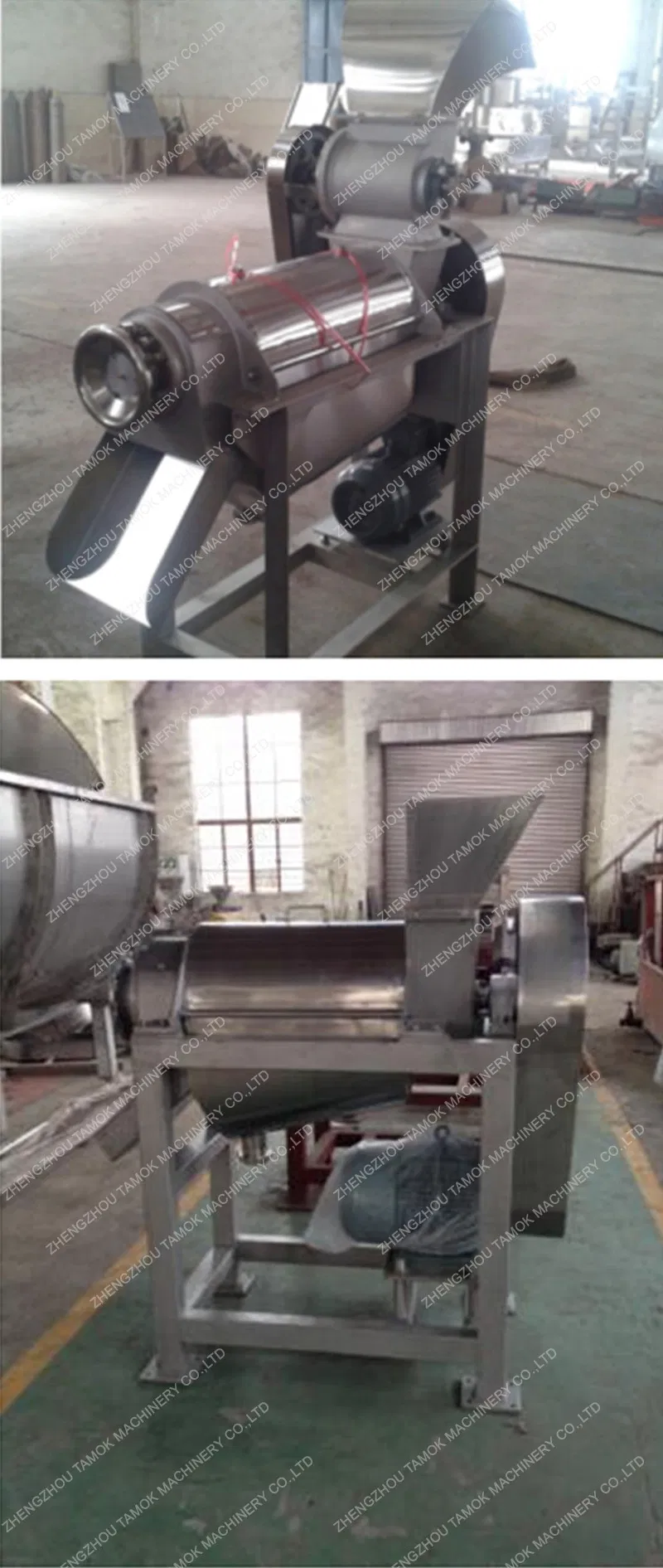

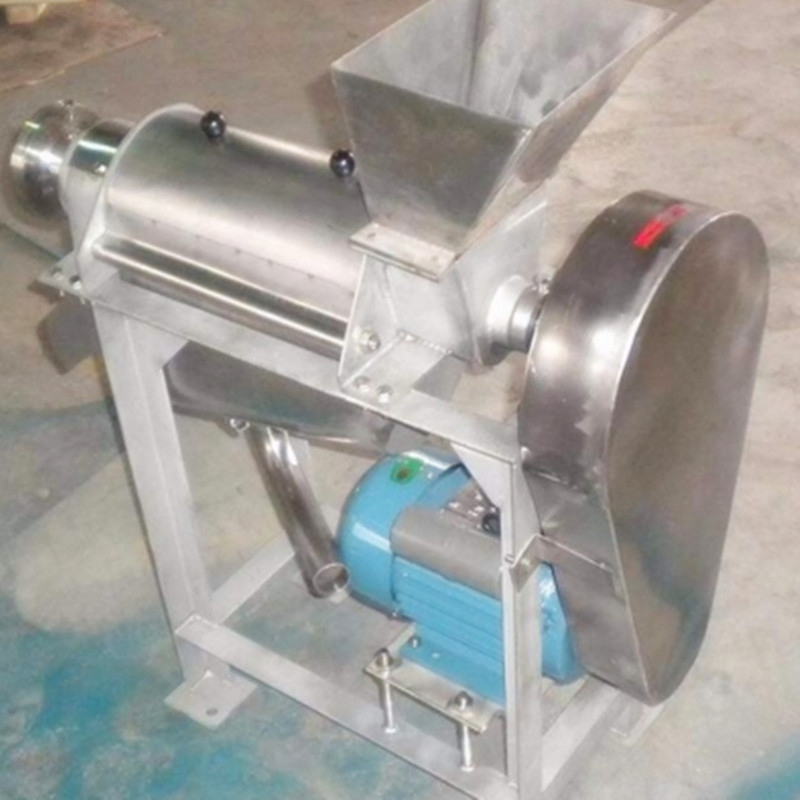

Small Space Occupy Lemon Ginger Strawberry Juicer Juice Extractor
The fruit and vegetable juicing machine is an ideal machine for making jam, fruit juice, vegetable juice, suitable for a variety of fresh fruit and vegetables in pulping separation. Such as: orange flesh, grapes, kiwi, mulberry, waxberry, peach (to nuclear) and so on, it can change them into jam juice, it can also pulping green vegetables, tomatoes, peppers, celery. The vegetables bar isolated, is an important equipment for food processing. The machine can separate fruit juice and tomato skin and seed.
Features
- Advanced design, compact structure, beautiful and generous.
- The screw juicer machine is composed of crusher and spiral juicer; a combination of automatic crushing, juicing and discharging process.
- The machine adopts conical screw with large capacity, high juice yield.
- High efficiency and energy saving, low noise, no pollution. All material contact parts are stainless steel.
How It Works

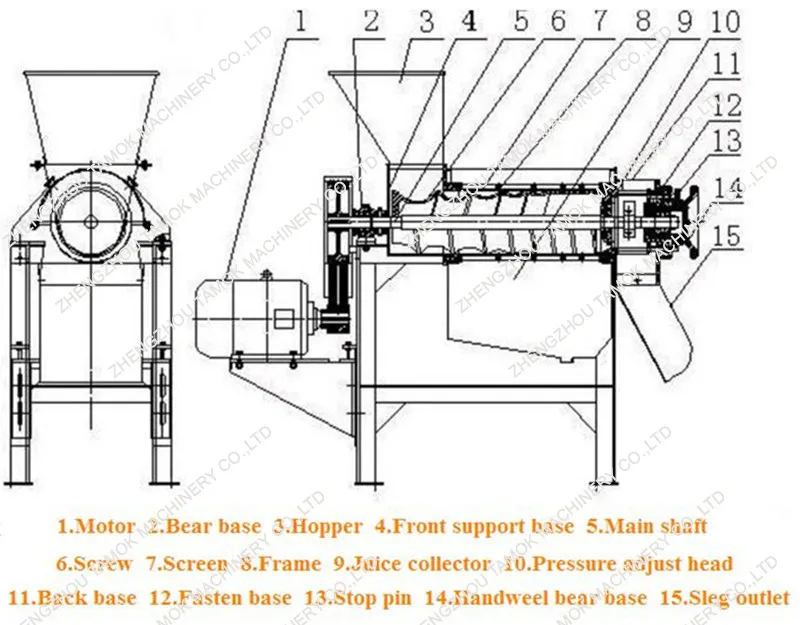

1. The main component of this juice extruder is the screw. The bottom diameter of the screw gradually increases but the screw pitch decreases when the screw advances along the dreg exit. When the material is pushed by the screw, the cavity volume decreases, which forms the press to the material.
2. The rotation direction is clockwise looked from the feed hopper to the dreg exit. Material is pressed by the pushing of screw, juice inflows into the bottom container, while dregs are expelled through the cyclic gap.
3. The axial movement of the pressure controller adjusts the gap space. Clockwise adjustment increases resistance to dreg expelling and adjusts dreg yield.
Application
Suitable for all kinds of berries, kernel fruit and broken vegetable juice. It can also process larger fruits and vegetables softened by cooking to reduce viscosity for juicing. Common applications include celery, spinach, tomato, pineapple, pear, apple, and orange.
Technical Parameters
| Type |
LZ-0.5 |
LZ-1.5 |
LZ-2.5 |
| Capacity(t/h) |
0.1-0.5 |
0.3-1.5 |
1.0-2.5 |
| Power(kw) |
1.5 |
4 |
11 |
| Voltage(v) |
380 |
380 |
380 |
| Size(mm) |
1020*300*900 |
1560*450*1340 |
2200*600*1560 |
| Net weight(kg) |
85 |
240 |
520 |
| Filter aperture(mm) |
0.6 |
0.6 |
0.6 |
| Spiral diameter(mm) |
88 |
175 |
250 |
| Screw speed |
600r/min |
400r/min |
400r/min |
We also provide fruit vegetable pulping machines, twin screw juicers, fruit vegetable washing and peeling machines, and cutting machines. Welcome to inquire.
Frequently Asked Questions
What types of fruits and vegetables can this machine process?
It is suitable for berries (grapes, mulberries), kernel fruits (kiwi, peach), and various vegetables like celery, spinach, tomato, and peppers.
What is the material of the machine?
All parts that come into contact with the material are made of high-quality stainless steel to ensure food safety and durability.
How does the automatic discharging process work?
The machine features a combined structure of a crusher and spiral juicer that automatically completes crushing, juicing, and dreg discharging in one process.
Can the juice yield be adjusted?
Yes, the juice yield can be adjusted by moving the pressure controller along the axial direction to change the gap space at the dreg exit.
What power supply is required for this juicer?
The standard voltage is 380V/50Hz, but 220V or other customized power specifications can be provided upon request.
What is the processing capacity of the different models?
We offer different models: LZ-0.5 (0.1-0.5 t/h), LZ-1.5 (0.3-1.5 t/h), and LZ-2.5 (1.0-2.5 t/h).
