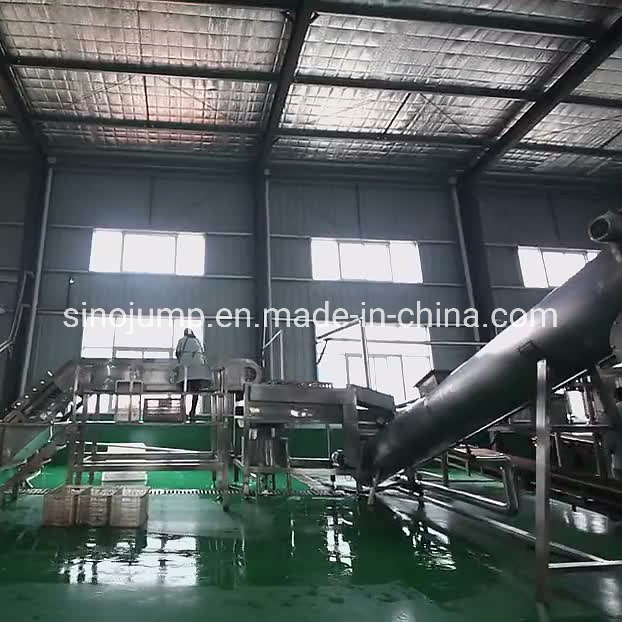

This multifunctional spiral presser is applicable for juicing various fruits and vegetables such as tomatoes, pineapples, apples, and oranges. It integrates advanced crushing and juicing technologies into one seamless process.
| Model | Capacity (T/H) | Power (KW) | Size (mm) |
|---|---|---|---|
| JP-0.5 | 0.1~0.5 | 1.1 | 800×320×750 |
| JP-1.5 | 0.3~1.5 | 4 | 1560×450×1340 |
| JP-2.5 | 1.0~2.5 | 11 | 2200×600×1560 |
Compact structure with beautiful appearance. Assembled from crusher and screw juicer parts.
Tapered screw design ensures large capacity and high juice yield with low noise and no pollution.
All contact parts are made of high-quality stainless steel (SUS304/SUS316) for safety and durability.
| Machine Type | Core Functionality |
|---|---|

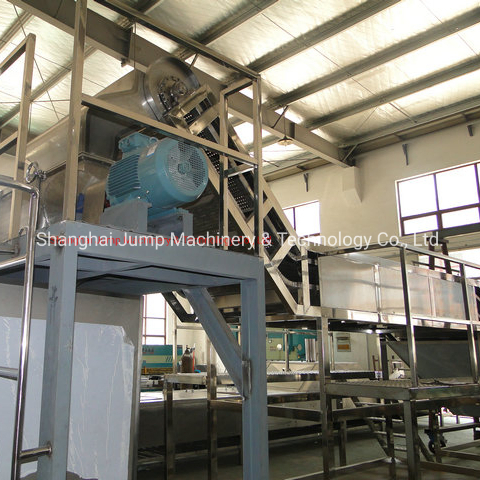

| Bucket Elevator | Smooth bucket structure prevents fruit clamping. Suitable for strawberries, tomatoes, and more. Adjustable speed. |
| Air Blowing & Washing | Special surfing and bubbling design ensures thorough cleaning while minimizing fruit damage. |
| Crushing Machine | Used to crush whole fruits into smaller pieces for optimized further pulping and extraction. |
| Pre-heater | Inactivates enzymes and protects the natural color of the fruit paste. Features automatic temperature control. |
| Belt Press Extractor | High efficiency dehydration unit with extraction rates reaching 75-85% depending on raw material. |

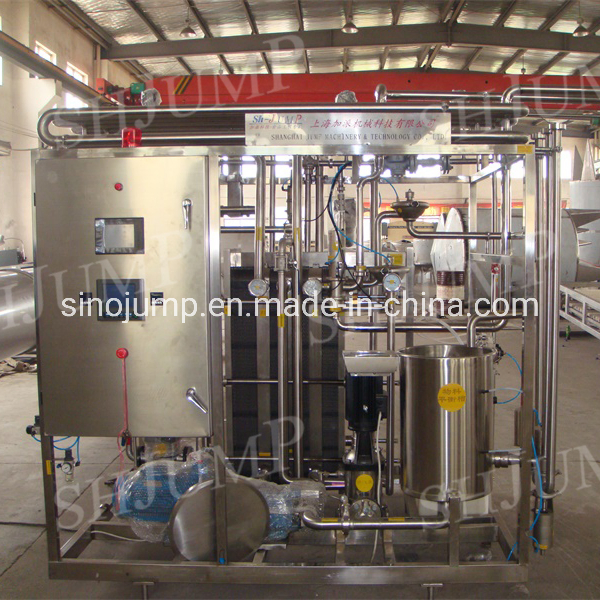

| Sterilizer & Aseptic Filler | Tube-in-tube heat exchangers and aseptic filling for 5L-220L bags, ensuring long shelf life. |

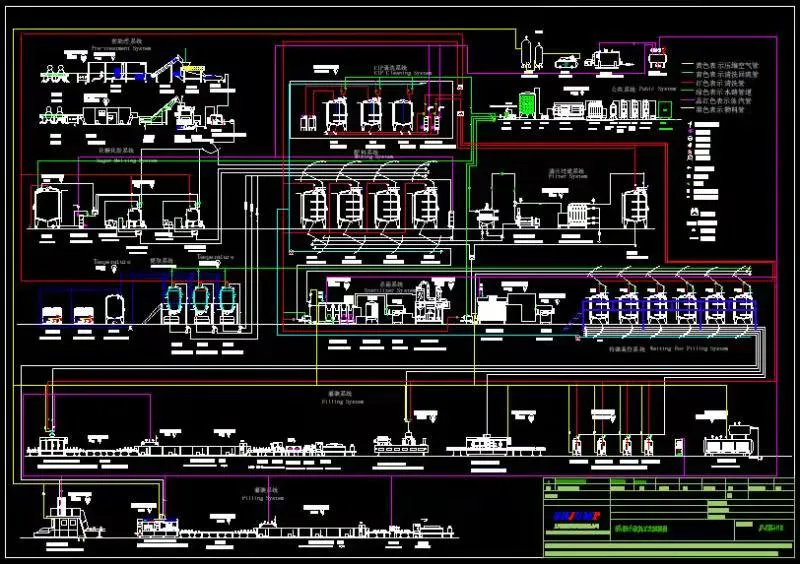

Accurate processing line layout design based on your specific factory size and requirements.

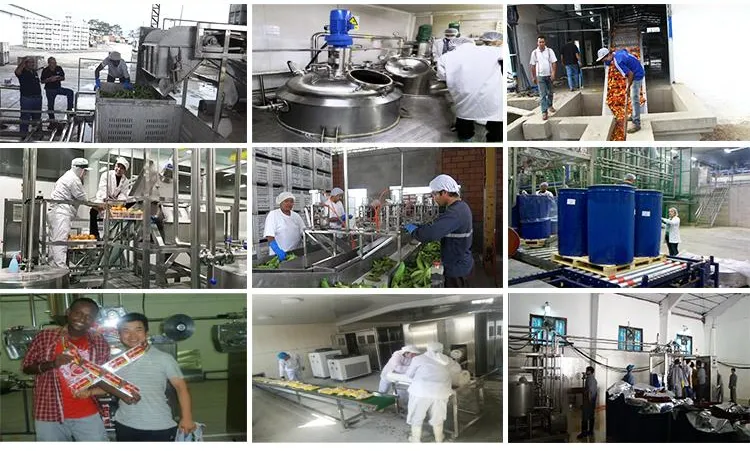

On-site installation and labor training to ensure your staff can operate and maintain all equipment.
Access to our lab for pilot production and customized formula research for your unique end products.
With over 30 years of history since 1986, we maintain a leadership position in fruit and vegetable processing technology. We have completed more than 330 full processing lines for domestic and overseas customers, utilizing several patented technologies that reduce energy consumption by up to 30% compared to industry standards.
💡 Project Customization Reminder:
Please note that production lines are highly customized. To provide an accurate proposal, please prepare data regarding your estimated capacity (T/H), target end products, packaging types, and your project timeline.
