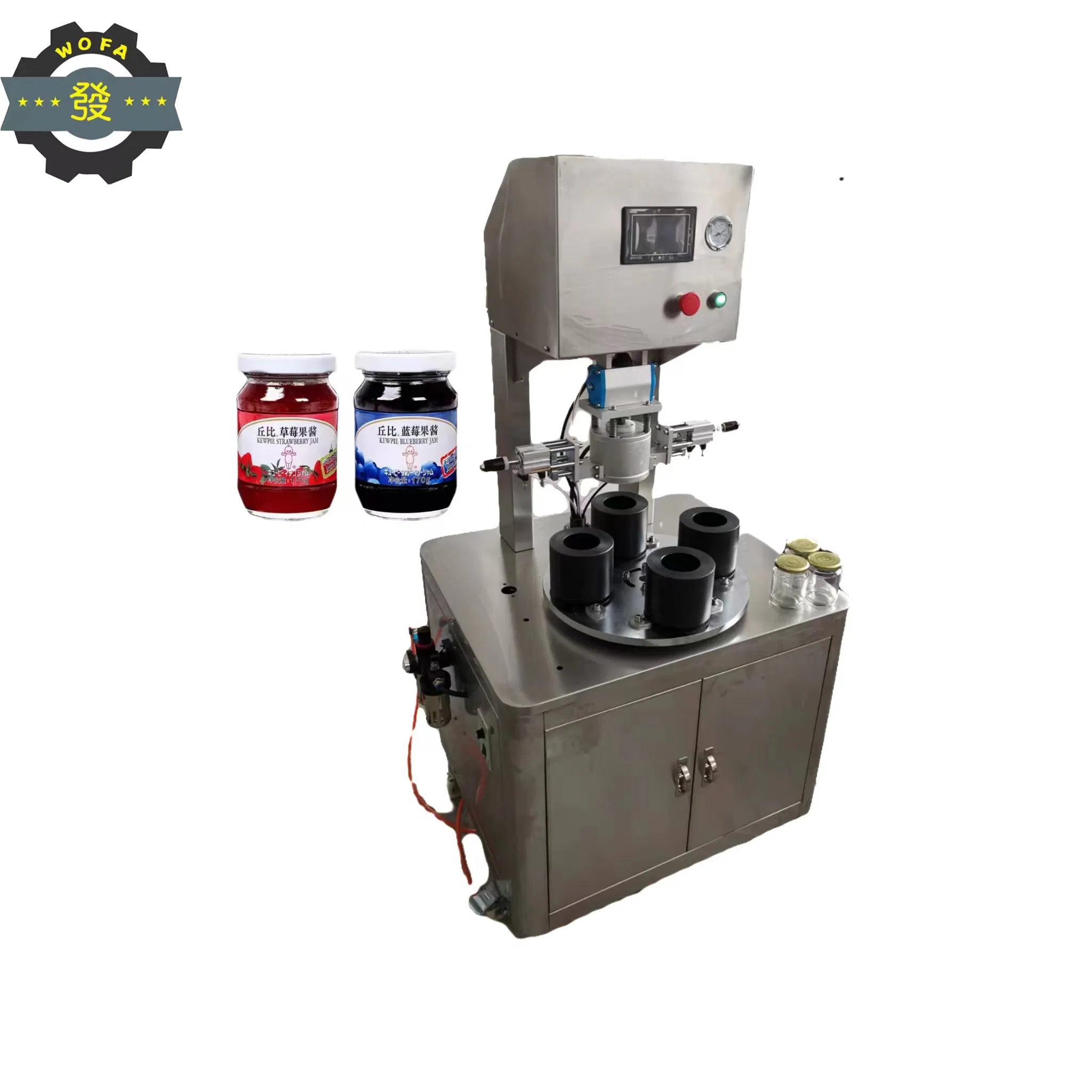

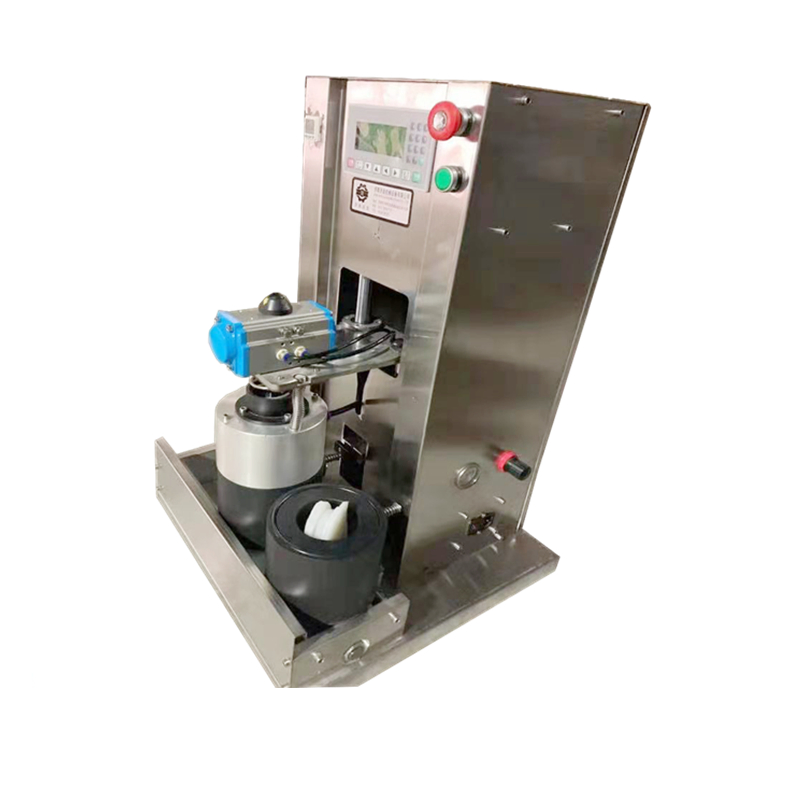

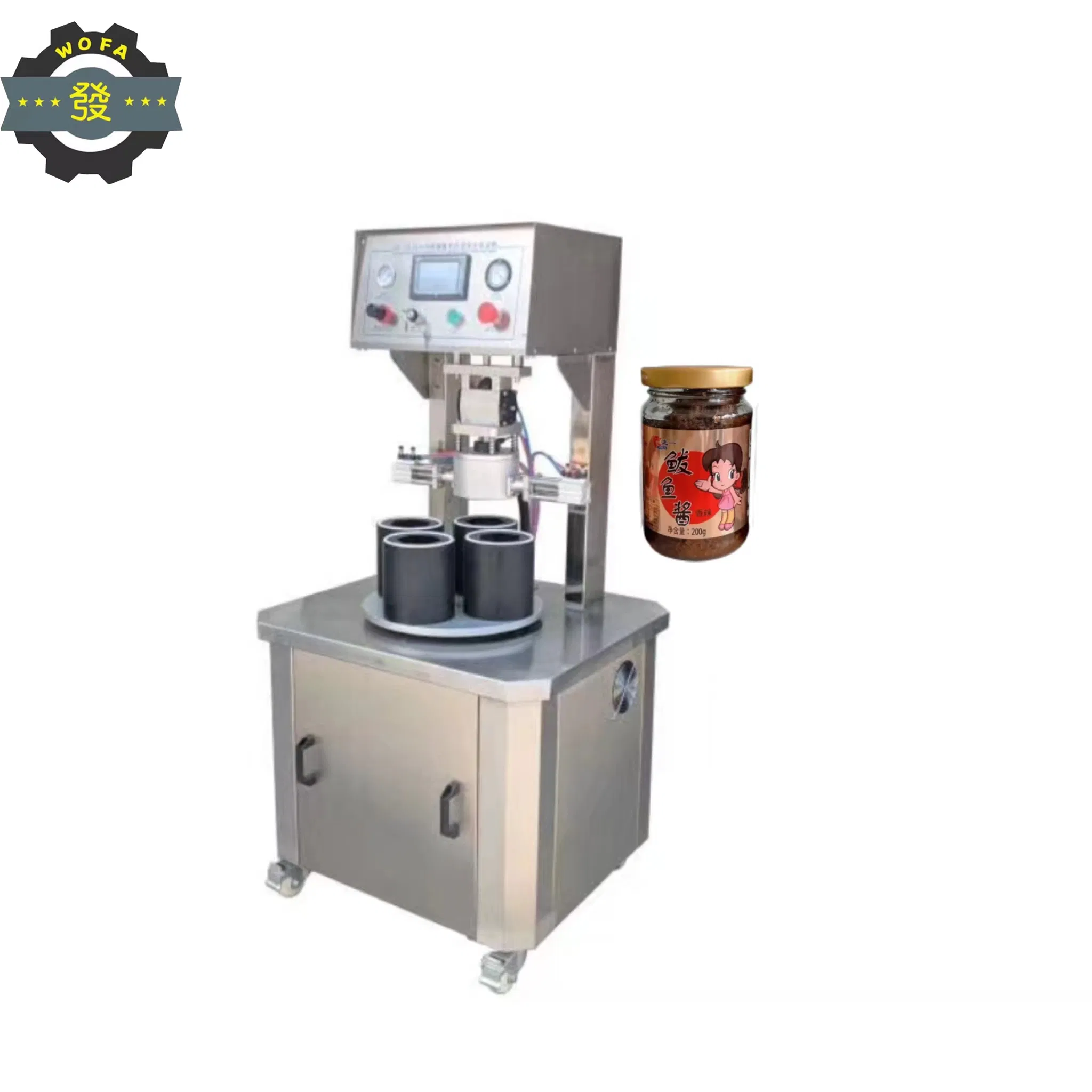

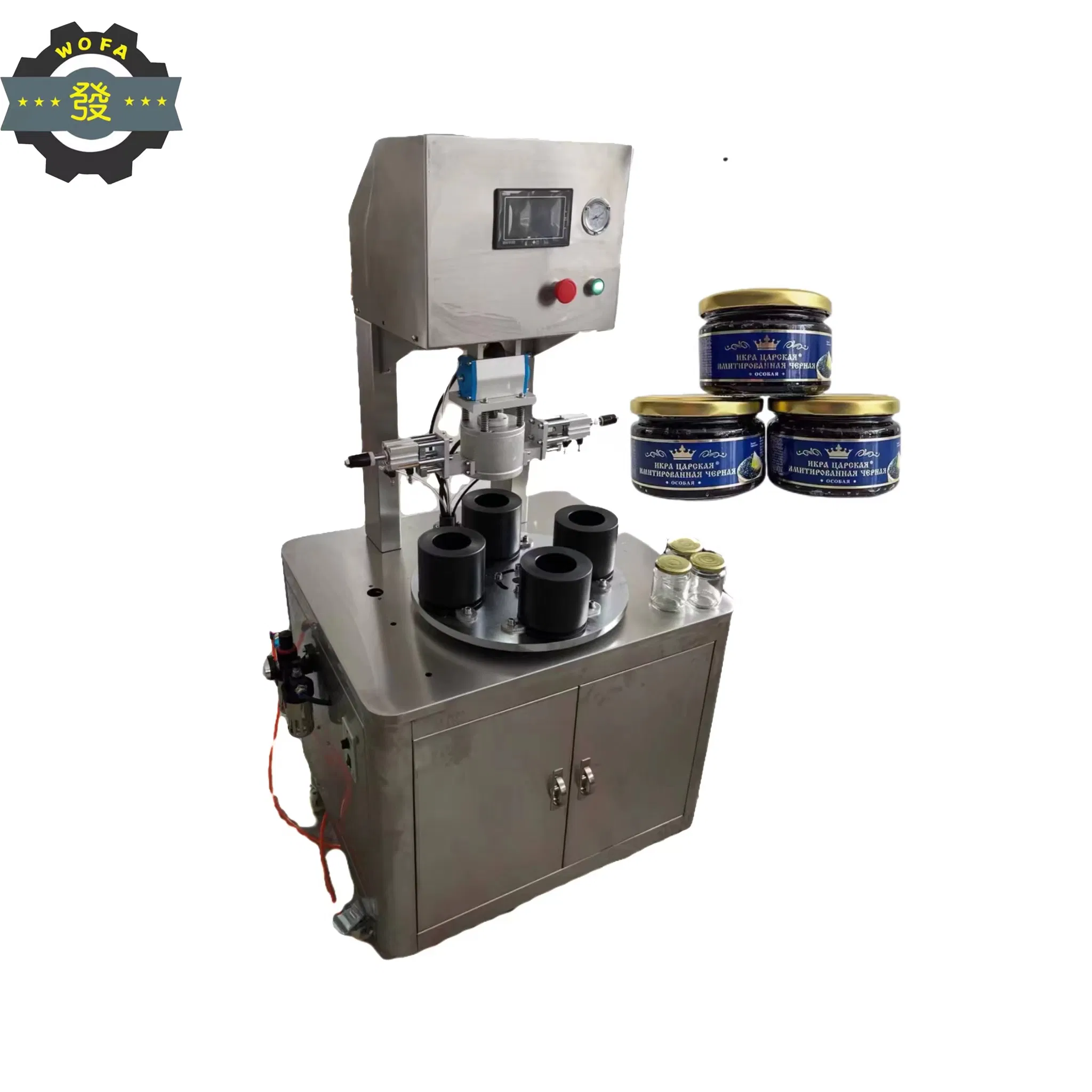

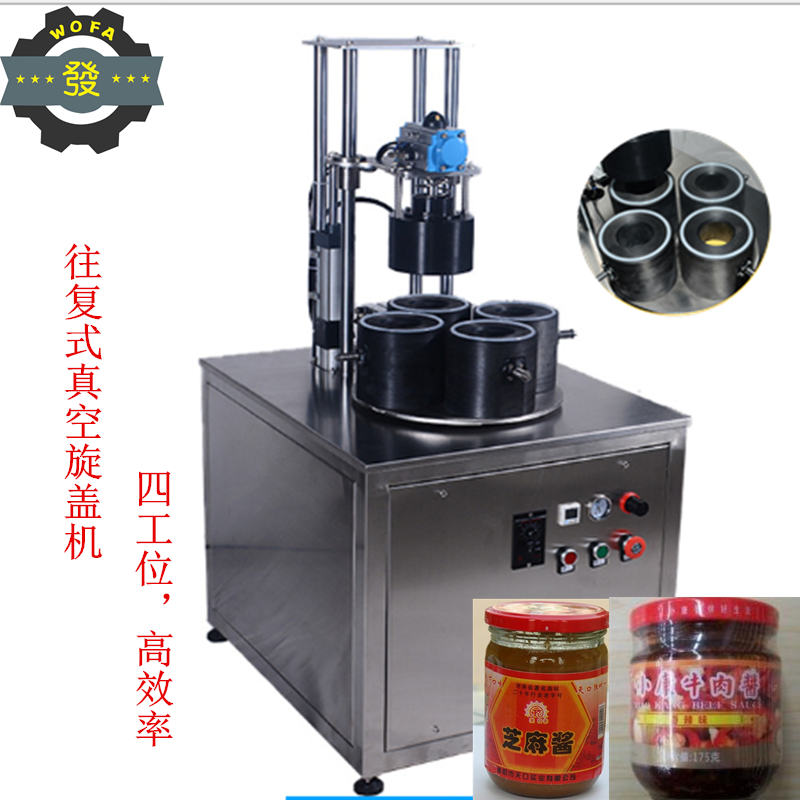

Jia He Wf-Xg4 Tomato Sauce Vacuum Sealer Machine Bottle Sealer Vacuum Sealer Capping Machine for Bottle Capper Glass Jar

1 / 5

Jia He Wf-Xg4 Tomato Sauce Vacuum Sealer Machine Bottle Sealer Vacuum Sealer Capping Machine for Bottle Capper Glass Jar

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.:WF-XG4

Application:Food

Power:Pneumatic

Automation:Semi-Automatic

Type:Inside Pumping Vacuum Packing Machine

Object State:Liquid

Power Supply:650W

Capping Range:Φ (63-80 mm)

Air Source:0.4-0.6 MPa

Rated Voltage:AC220V 50/60Hz

Package Size:85.00cm * 85.00cm * 160.00cm

Gross Weight:180.000kg

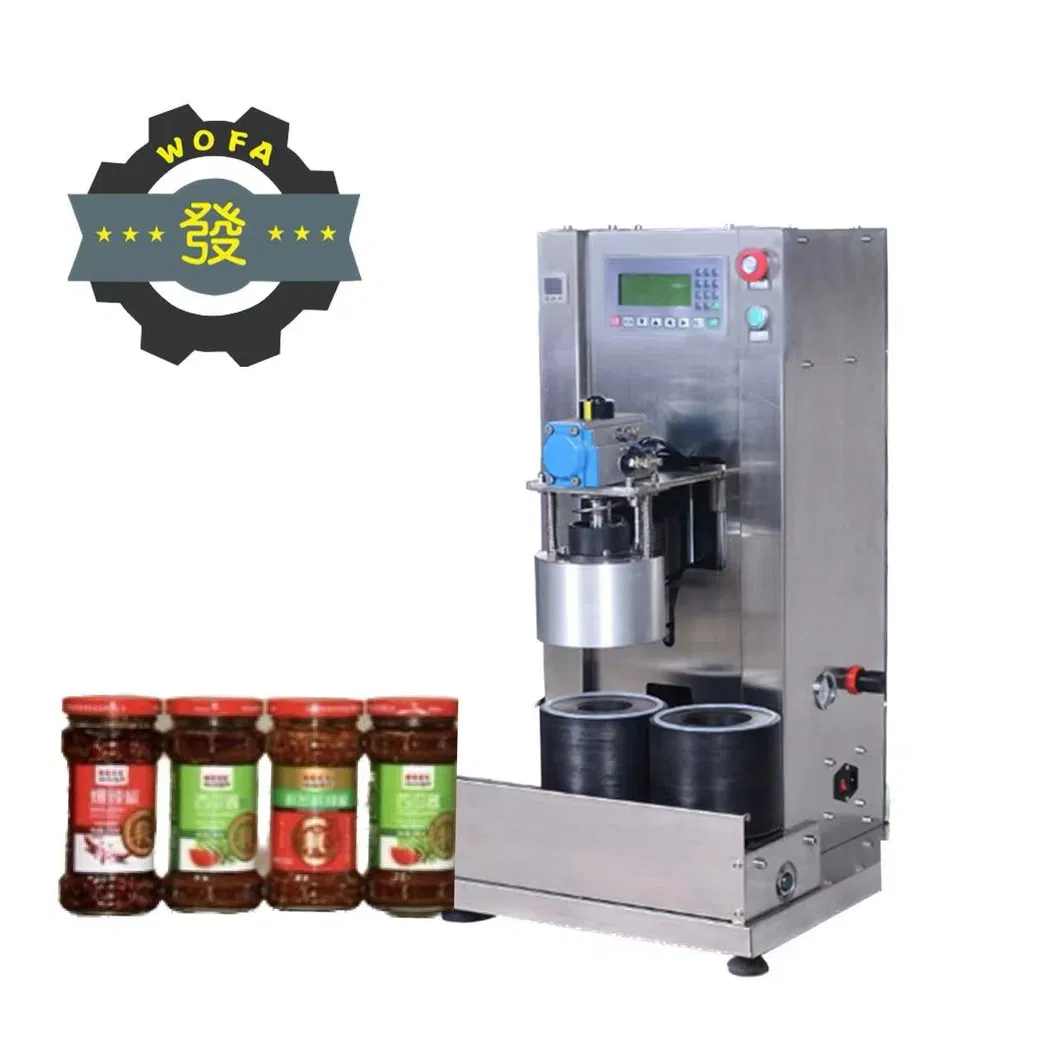

Product Overview

WF-XG2 Double station vacuum capping machine

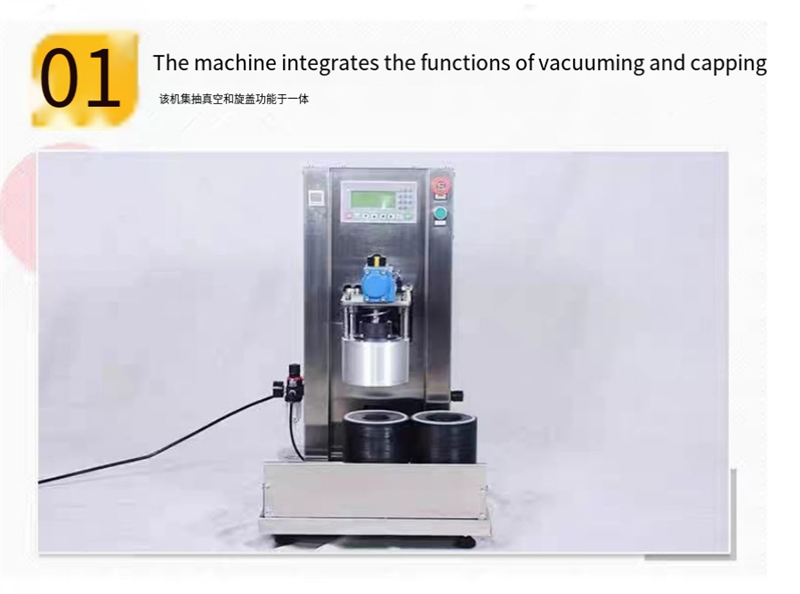

Used for food packaging, the standard tinplate claw type screw open cover sealed glass bottle packaging. The achievable function is to pump the air in the packaging container to reach the set negative pressure value (that is, to vacuum), and then tighten the lid. It is a semi-automatic model, featuring manual entry and exit of bottles and manual matching of caps, while other processes are automatic.

Visual Display & Elevations

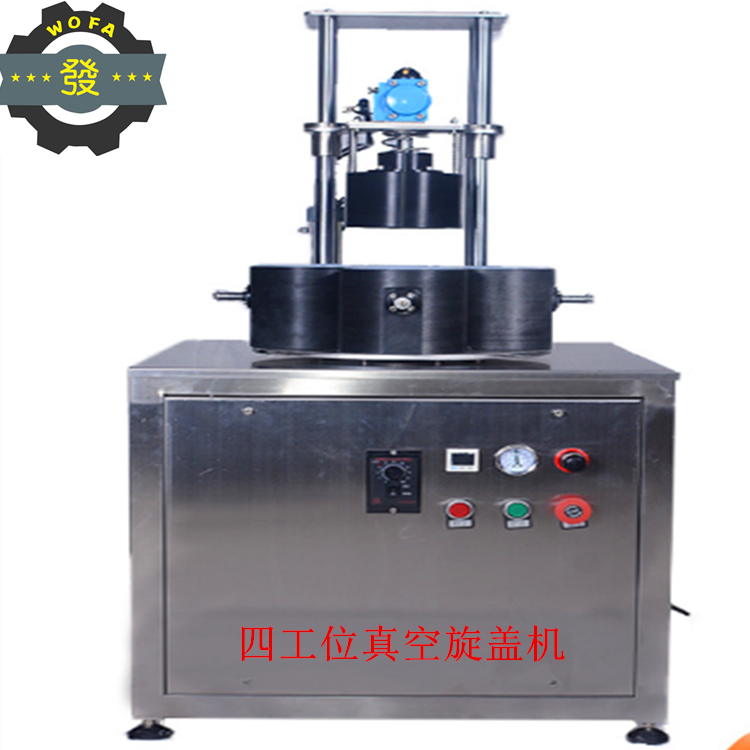

Front Elevation

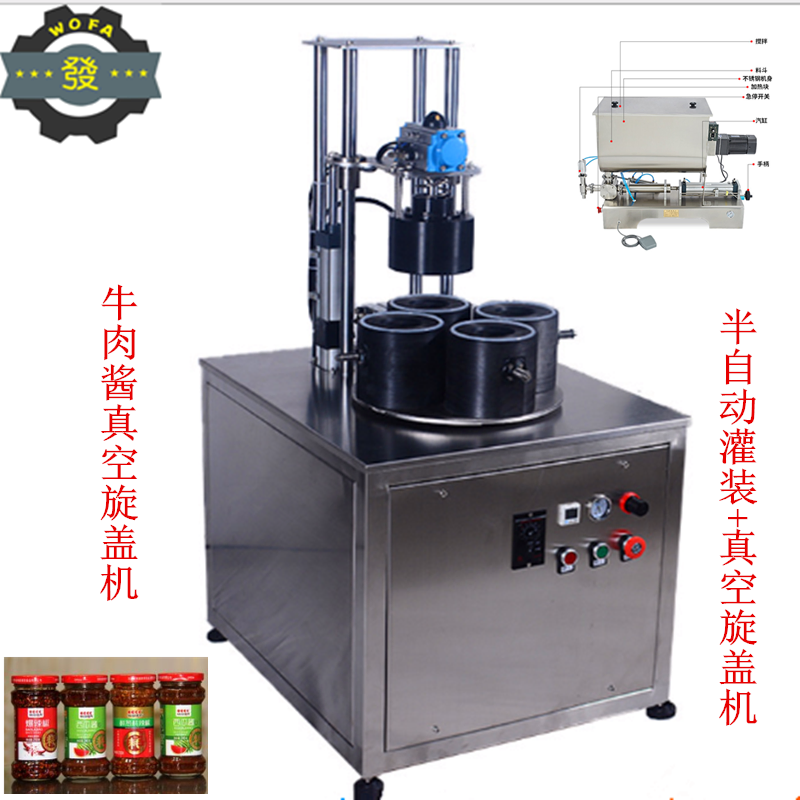

Right Elevation

Product Specifications

No	Item	Data
1	Product model	WF-XG4
2	Power	650w
3	Capping range	Φ (63-80 mm)
4	Rated voltage	AC220V 50/60Hz
5	Air source	0.4-0.6 MPa
6	Machine weight	190kg
7	Apparent dimension	800×800×1550(mm)
8	Package size	850×850×1600(mm)
9	Capping velocity	25-55 bottles/min
10	Adaptive bottle height	100-150(mm)

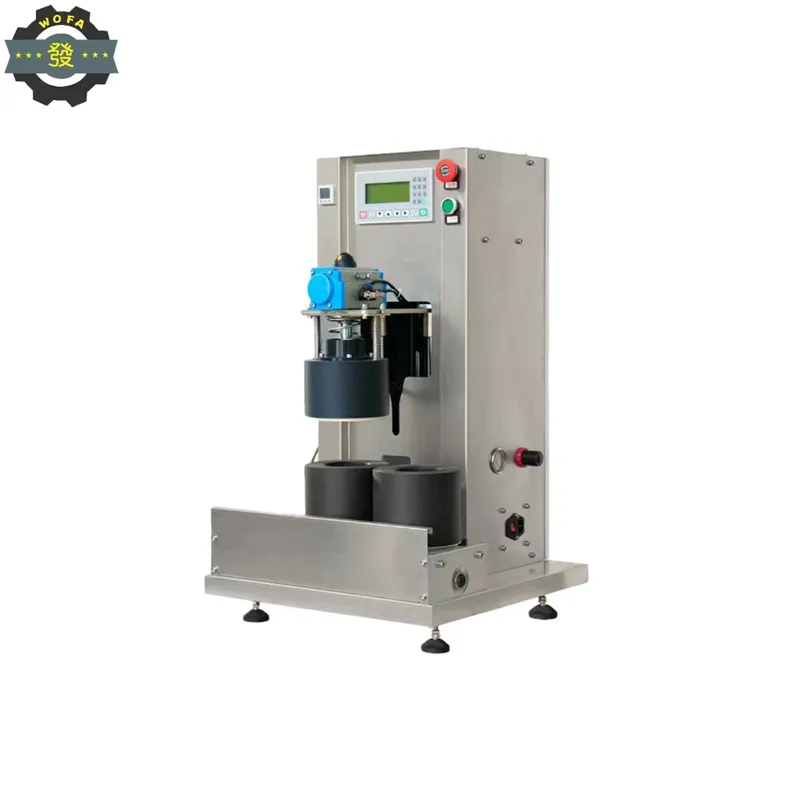

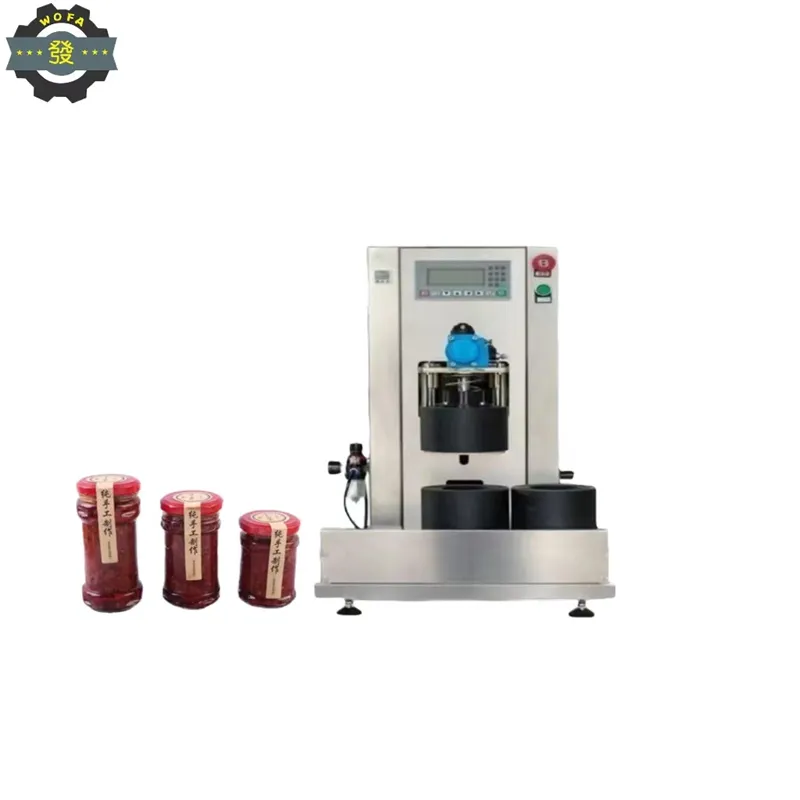

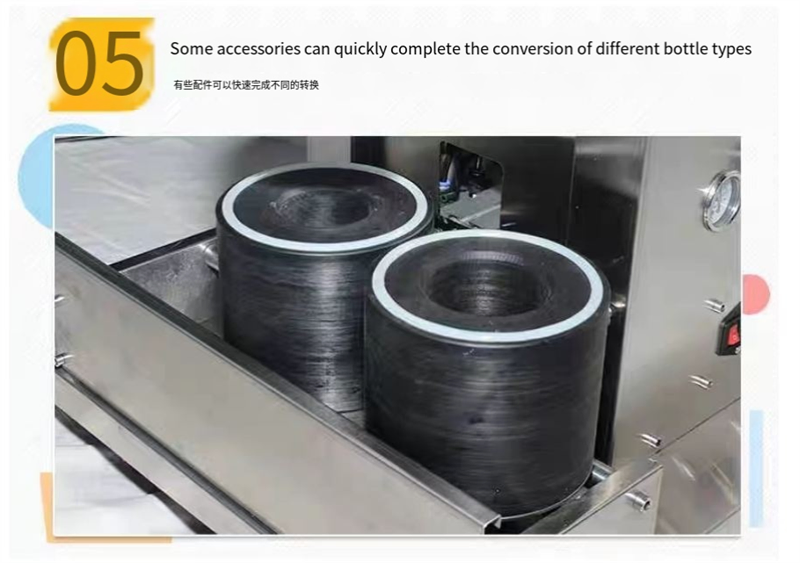

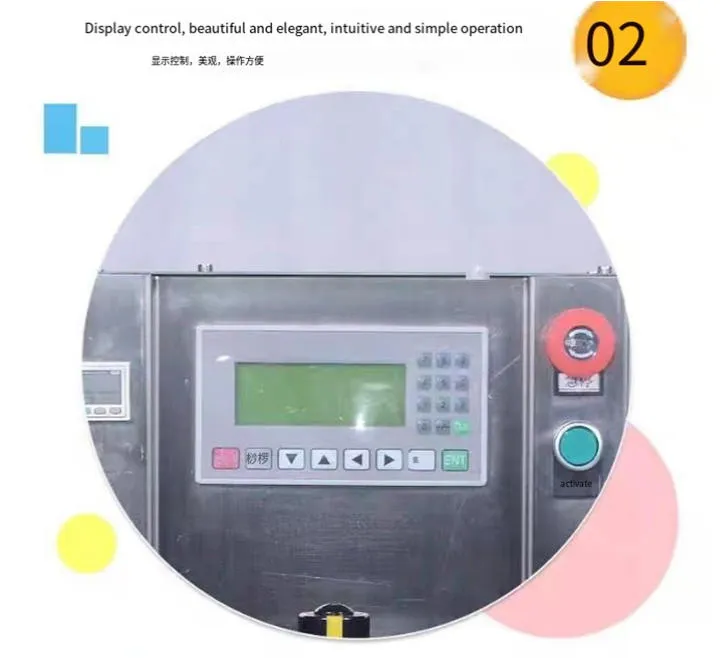

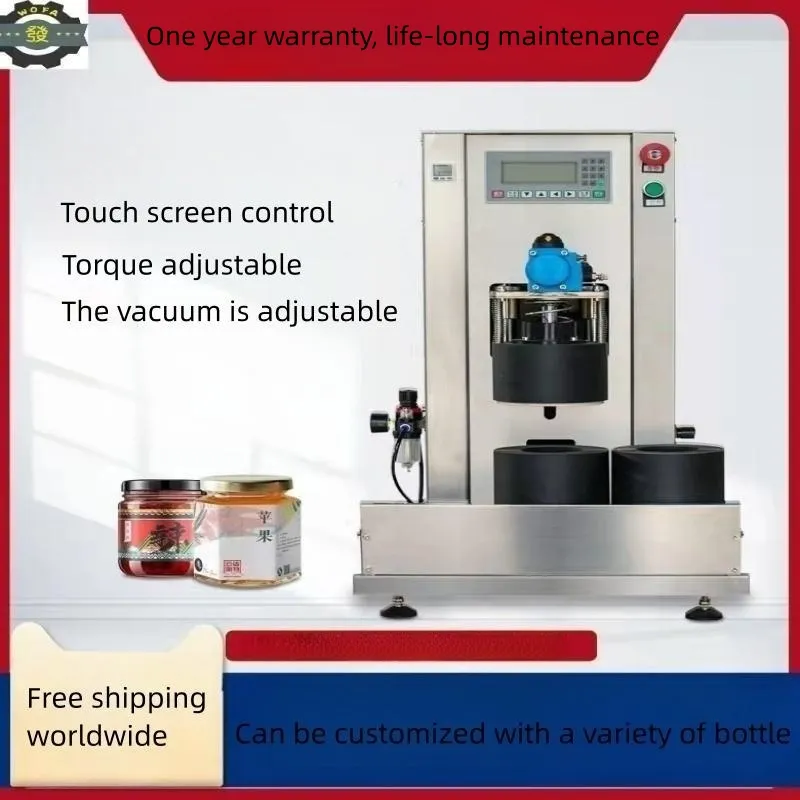

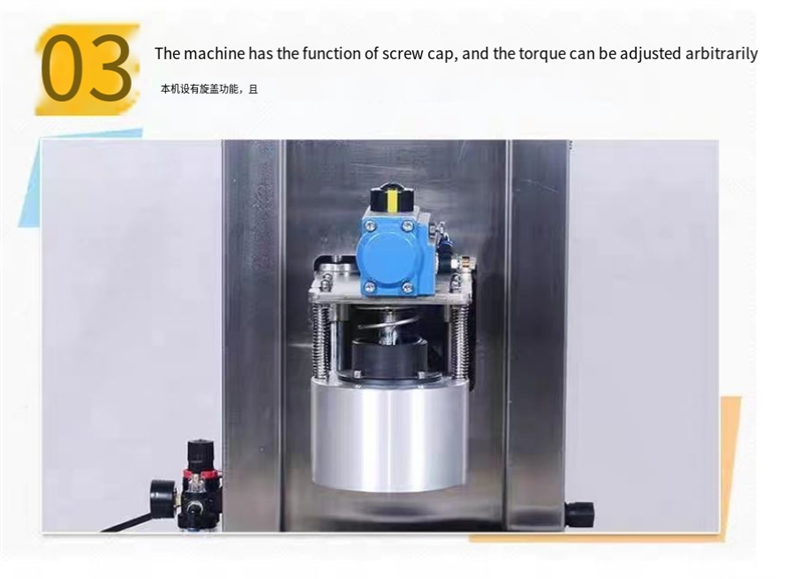

Product Configuration

Technical Details

Frequently Asked Questions

What types of bottles and caps is this machine suitable for?

The machine is specifically designed for standard tinplate claw-type screw caps and glass bottle packaging, commonly used in the food industry.

Is the vacuum level adjustable?

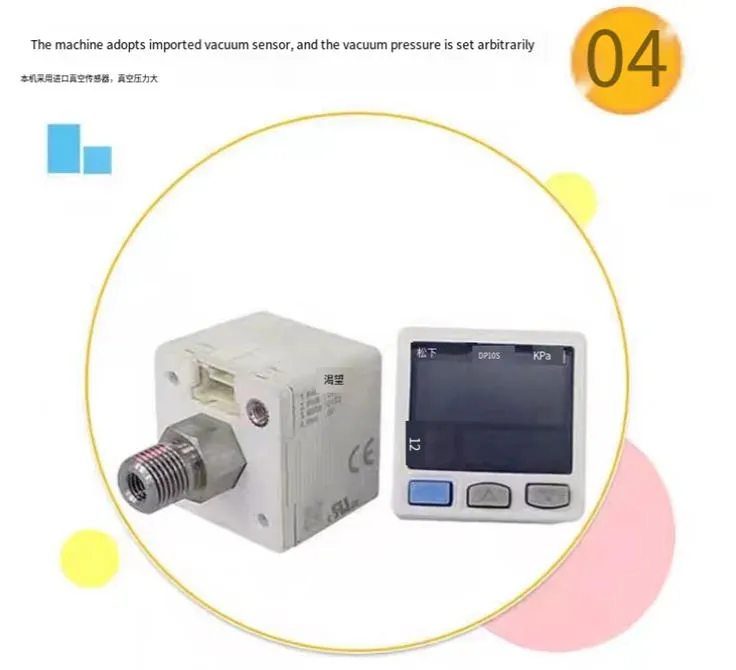

Yes, the machine pumps air to reach a set negative pressure value (vacuum) before tightening the lid, allowing you to achieve the desired vacuum level for your product.

What is the production capacity of the WF-XG4?

The capping velocity ranges between 25 to 55 bottles per minute, depending on the operator's speed and the specific bottle size.

Does the machine require an external air source?

Yes, this is a pneumatic-powered machine and requires an external air source providing between 0.4 to 0.6 MPa.

What is the compatible bottle height and cap diameter?

The machine accommodates bottle heights between 100-150mm and capping ranges (diameters) of Φ 63-80 mm.

Is this a fully automatic system?

It is a semi-automatic model. The operator manually places and removes the bottles and matches the caps, while the vacuum pumping and capping processes are automated.
