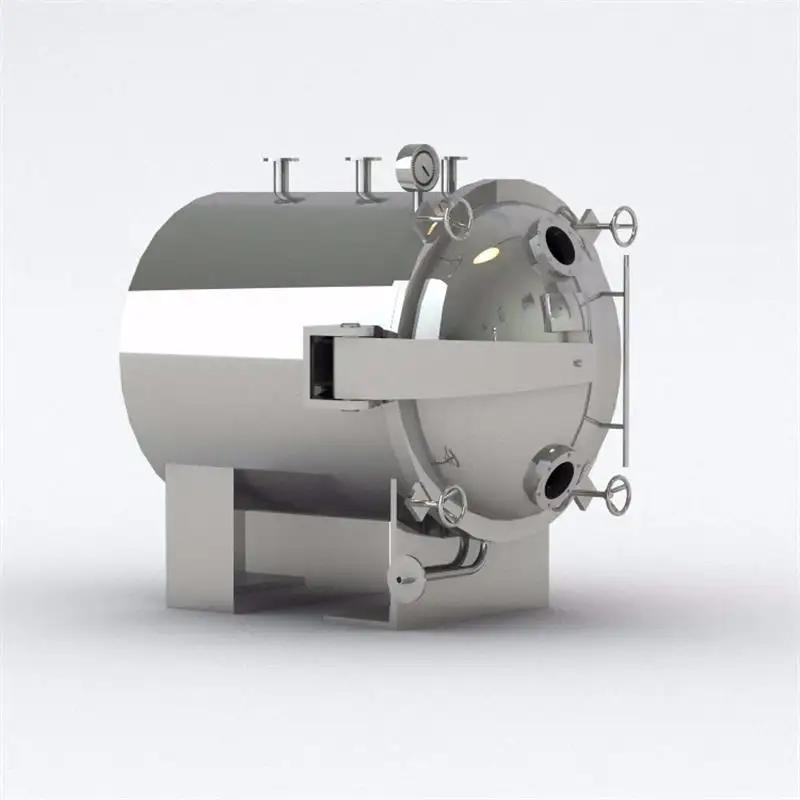

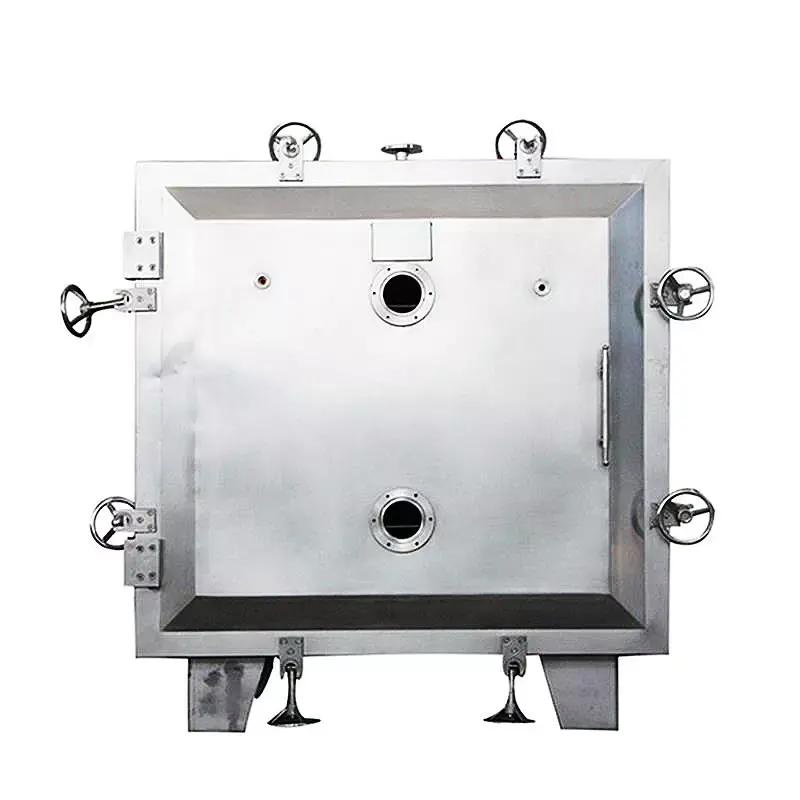

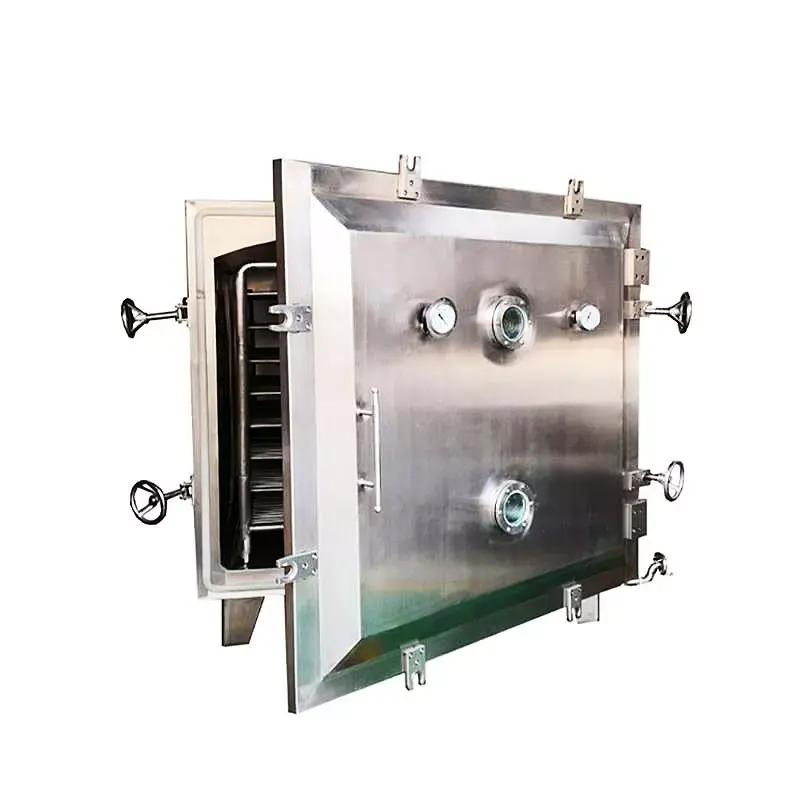

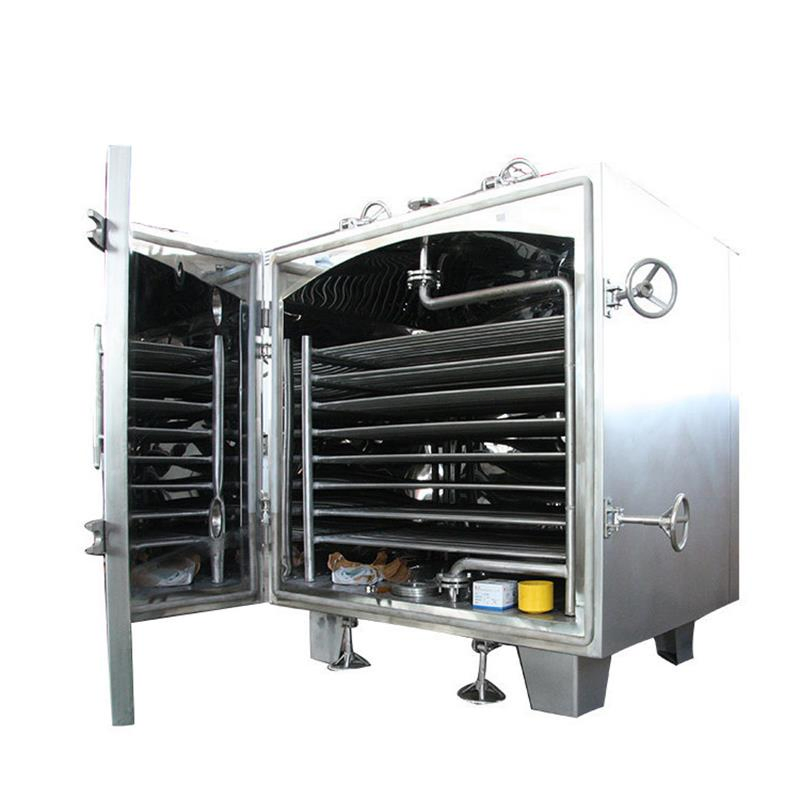

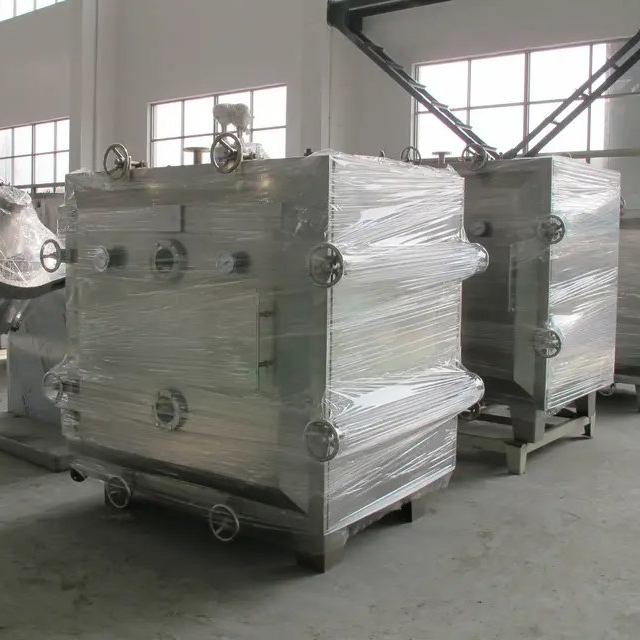

Industrial Lyophilizer Food Vegetable Fruit Dehydrator Freeze Dryer Vacuum Drying Machine Price
Industrial Lyophilizer Food Vegetable Fruit Dehydrator Freeze Dryer Vacuum Drying Machine Price
Industrial Lyophilizer Food Vegetable Fruit Dehydrator Freeze Dryer Vacuum Drying Machine Price
Industrial Lyophilizer Food Vegetable Fruit Dehydrator Freeze Dryer Vacuum Drying Machine Price
Industrial Lyophilizer Food Vegetable Fruit Dehydrator Freeze Dryer Vacuum Drying Machine Price
1 / 5
Industrial Lyophilizer Food Vegetable Fruit Dehydrator Freeze Dryer Vacuum Drying Machine Price
Industrial Lyophilizer Food Vegetable Fruit Dehydrator Freeze Dryer Vacuum Drying Machine Price
Industrial Lyophilizer Food Vegetable Fruit Dehydrator Freeze Dryer Vacuum Drying Machine Price
Industrial Lyophilizer Food Vegetable Fruit Dehydrator Freeze Dryer Vacuum Drying Machine Price
Industrial Lyophilizer Food Vegetable Fruit Dehydrator Freeze Dryer Vacuum Drying Machine Price

Industrial Lyophilizer Food Vegetable Fruit Dehydrator Freeze Dryer Vacuum Drying Machine Price

Customization: Available
Movement Way: Heat Drying
Flow: Cross Flow
Send Inquiry

Product Description

● Basic Information
Model NO.
FZG-15 (Inner wall: Stainless steel)
Heating Mode
Transmission
Material Status
Powder, Feed, Milk Powder, Food, Fruit
Drying Medium
Superheated Steam
Operational Method
Continuous
Type
Static Drier
Chamber Inside Size
1500*1220*1400 mm
Baking Shelf Layers
8
Number of Baking Disks
32
Temperature Range
≤150 °C
Chamber Weight
2100 Kg
Origin
Liaoning
● Product Overview

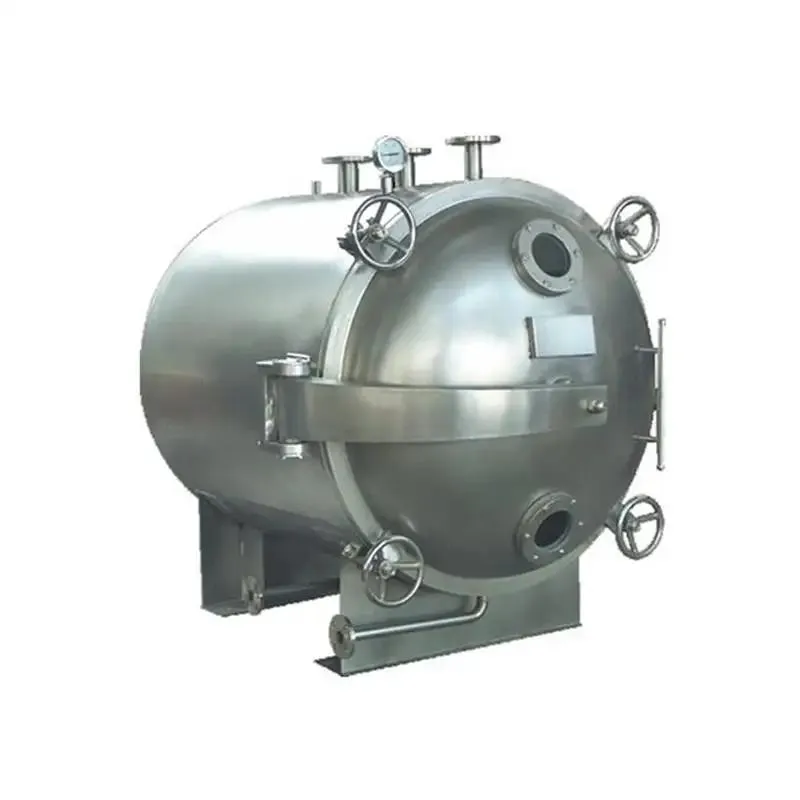

Vacuum Drying Machine View 1

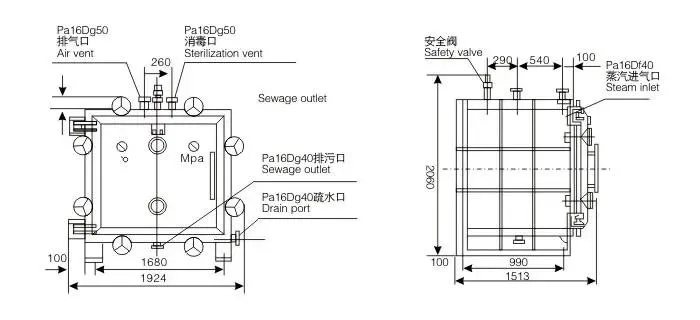

Vacuum Drying Machine View 2

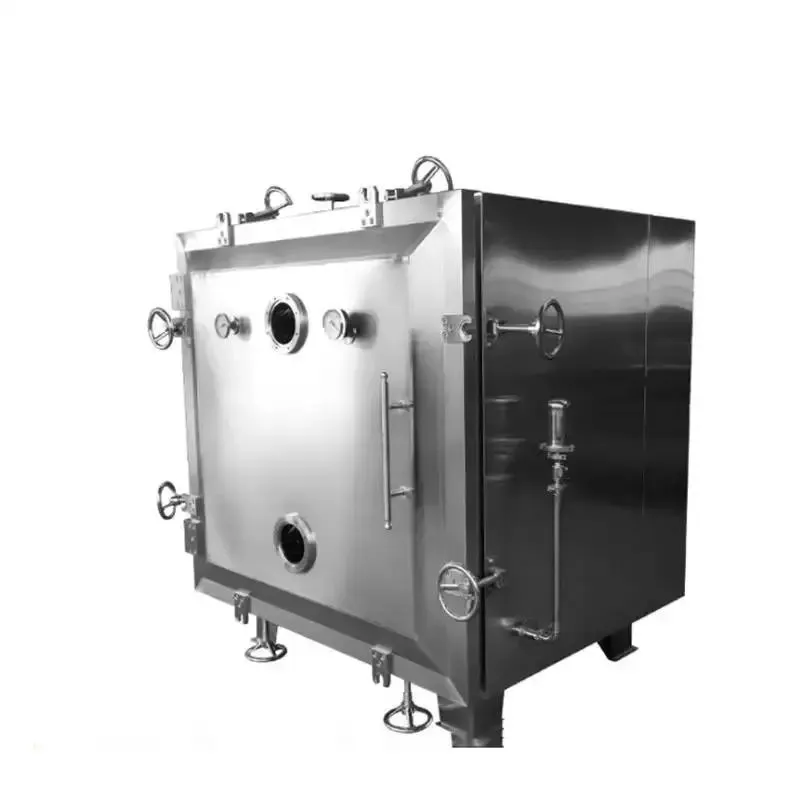

Vacuum Drying Machine View 3
Working Principles

Vacuum drying operates by placing raw materials under vacuum conditions for heating and drying. By utilizing a vacuum to remove air and humidity, the drying speed is significantly increased. Note: if a condensate is used, the solvent in the raw material can be recovered. Using SK series water ring vacuum pump sets can save investment when condensate recovery is not required.

Key Features
  • ✓ Boiling point of materials decreases under vacuum, increasing the pushing force.
  • ✓ Evaporator conducting area is saved for a specific heat radiation amount.
  • ✓ Heat source can be low-pressure steam or surplus heat steam.
  • ✓ Reduced heat loss and ability to perform disinfection before drying.
  • ✓ GMP compliant: no impurity mixing and material shape is preserved (static drying).
● Technical Specifications
Specification Name YZG-600 YZG-1000 YZG-1400 FZG-10 FZG-15 FZG-20
Inside size (mm) φ600*976 φ1000*1572 φ1400*2054 1500*1060*1220 1500*1220*1400 1500*1220*1600
Baking shelf layers 4 6 8 5 8 12
Baking disk size (mm) 310x600x45 460x640x45 460x640x45 460x640x45 460x640x45 460x640x45
Disk Number 4 12 32 20 32 48
Chamber Temp (°C) ≤150 ≤150 ≤150 ≤150 ≤150 ≤150
Vacuum Level (Mpa) -0.09 ~ 0.096
● Application & Delivery

This equipment is ideal for drying heat-sensitive raw materials that may decompose, polymerize, or metamorphose at high temperatures. It is widely utilized in the pharmaceutical, chemical, foodstuff, and electronic industries.

Packing and Delivery
Our Customers

We have established long-term business relations with many international customers, serving as a trusted partner for industrial drying solutions.

● Frequently Asked Questions (FAQ)
Q1: What materials are suitable for this vacuum drying machine?
It is designed for heat-sensitive materials that are prone to decomposition or polymerization at high temperatures, such as powders, food products, and pharmaceutical ingredients.
Q2: How does vacuum drying improve the drying speed?
Under vacuum, the boiling point of the moisture within the raw material decreases, which significantly increases the evaporation force and speed compared to atmospheric drying.
Q3: Is this machine GMP compliant?
Yes, the design ensures no impurity mixing during the drying period, meeting the strict requirements of Good Manufacturing Practice (GMP).
Q4: Can solvents be recovered during the drying process?
Yes, if a condensate system is used in conjunction with the vacuum dryer, the evaporated solvents can be efficiently recovered.
Q5: What is the maximum temperature the chamber can reach?
The temperature inside the drying chamber can be maintained up to ≤150°C, depending on the heat source and material requirements.
Q6: Does the drying process damage the shape of the material?
No. Since this is a static dryer, the raw material remains stationary, ensuring its physical shape and structure are not destroyed during the process.
