New Heavy Duty Horizontal Continuous Bag Pouch Vacuum Band Sealer Machine

Customization:	Available
After-sales Service:	Lifelong
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.	LW-350Q	Packaging	Bag
Automatic Grade	Automatic	Material	Plastic, Aluminum
Application	Cosmetics, Tea, Food, Seasoning	Type	Sealing Machine
Power	1100W	Belt Speed	0-24m/Min
Heating Range	0-260 Degree	HS Code	8422309090

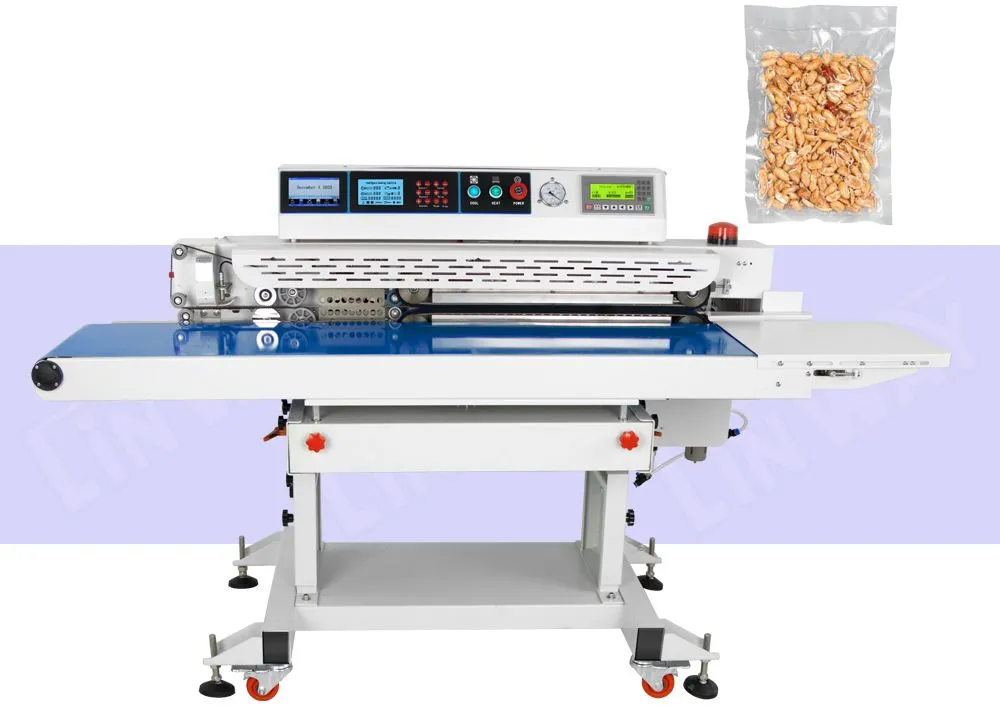

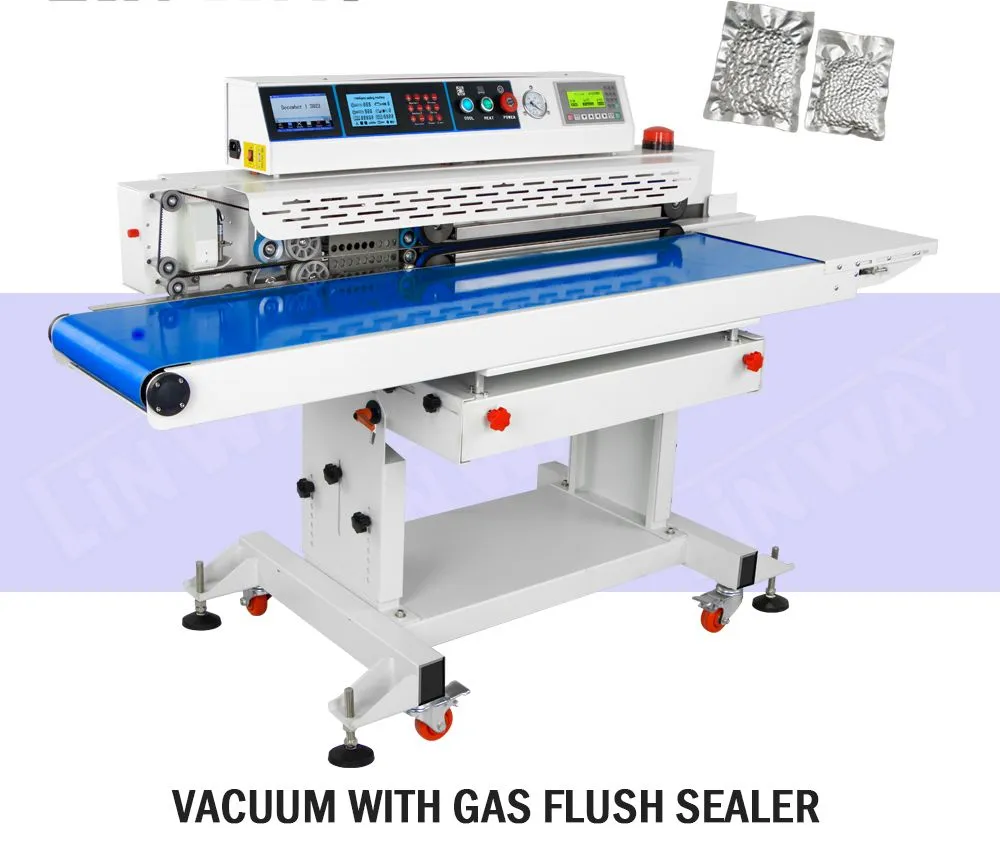

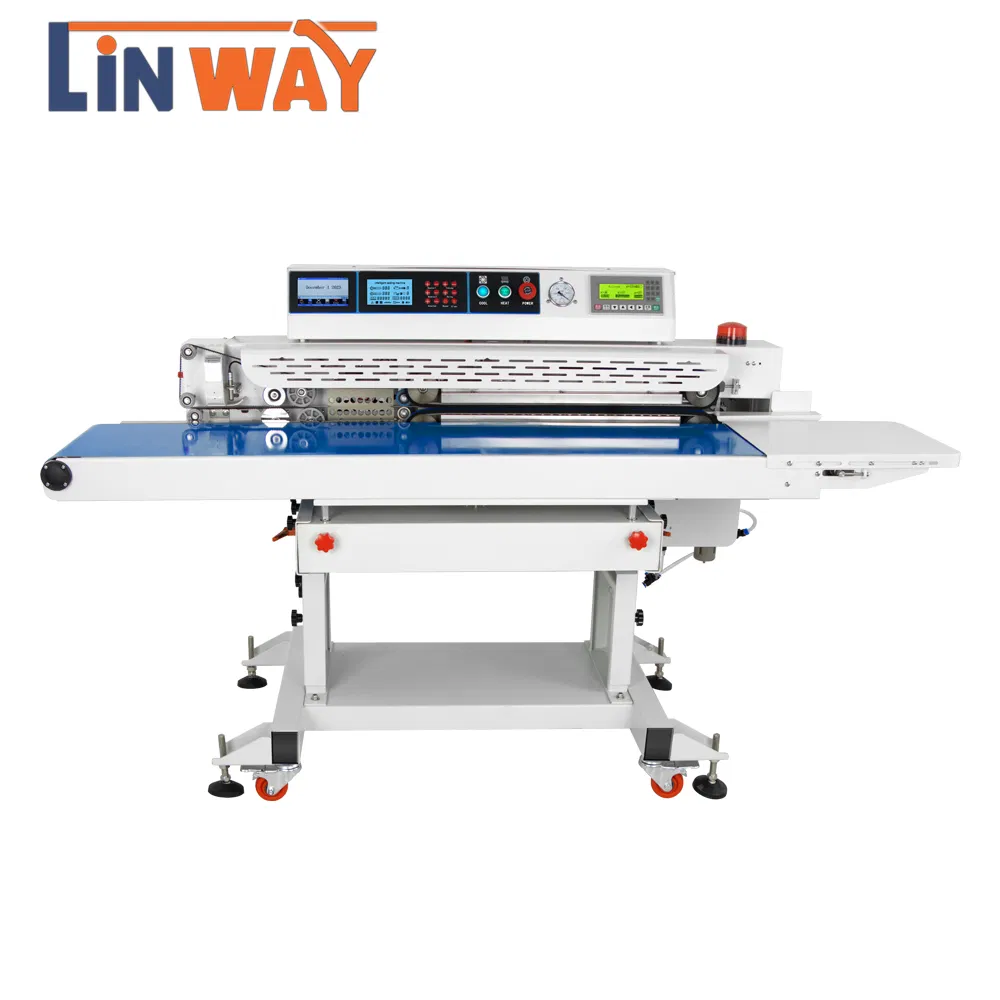

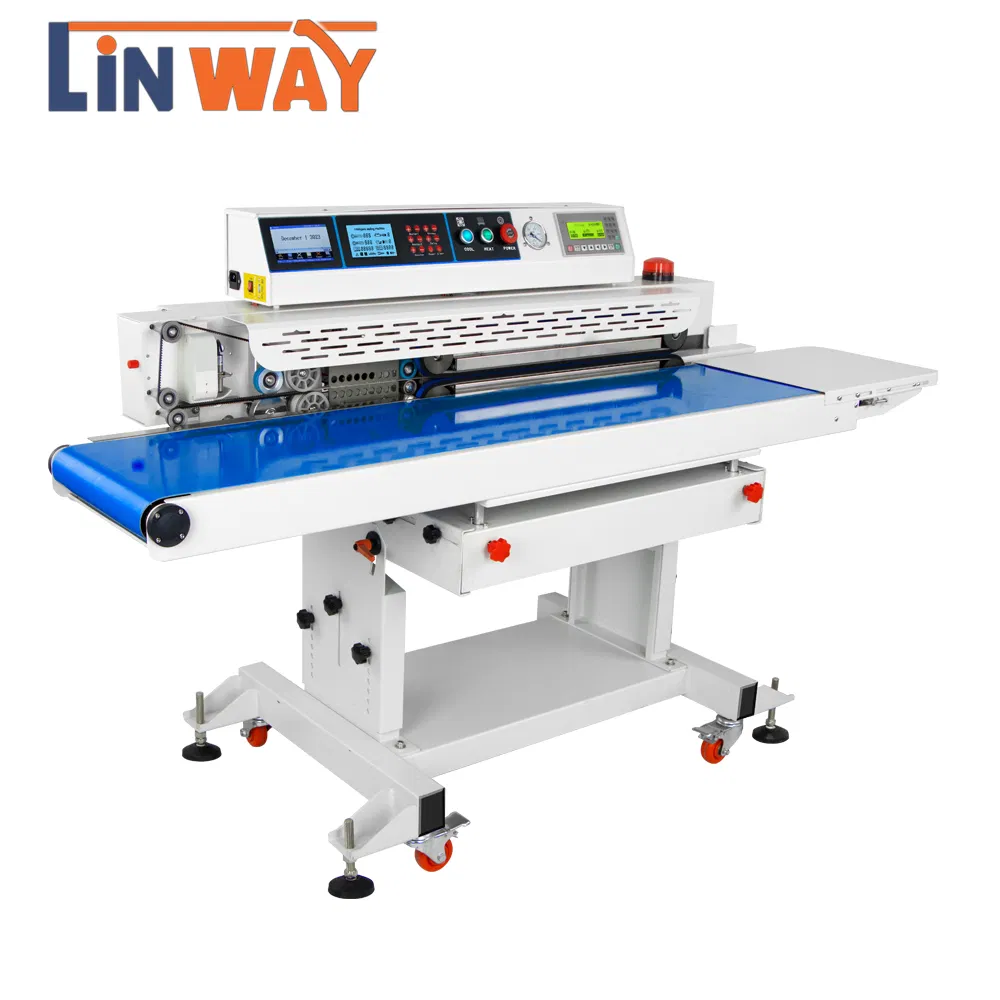

LW-350Q Horizontal Band Vacuum Sealer

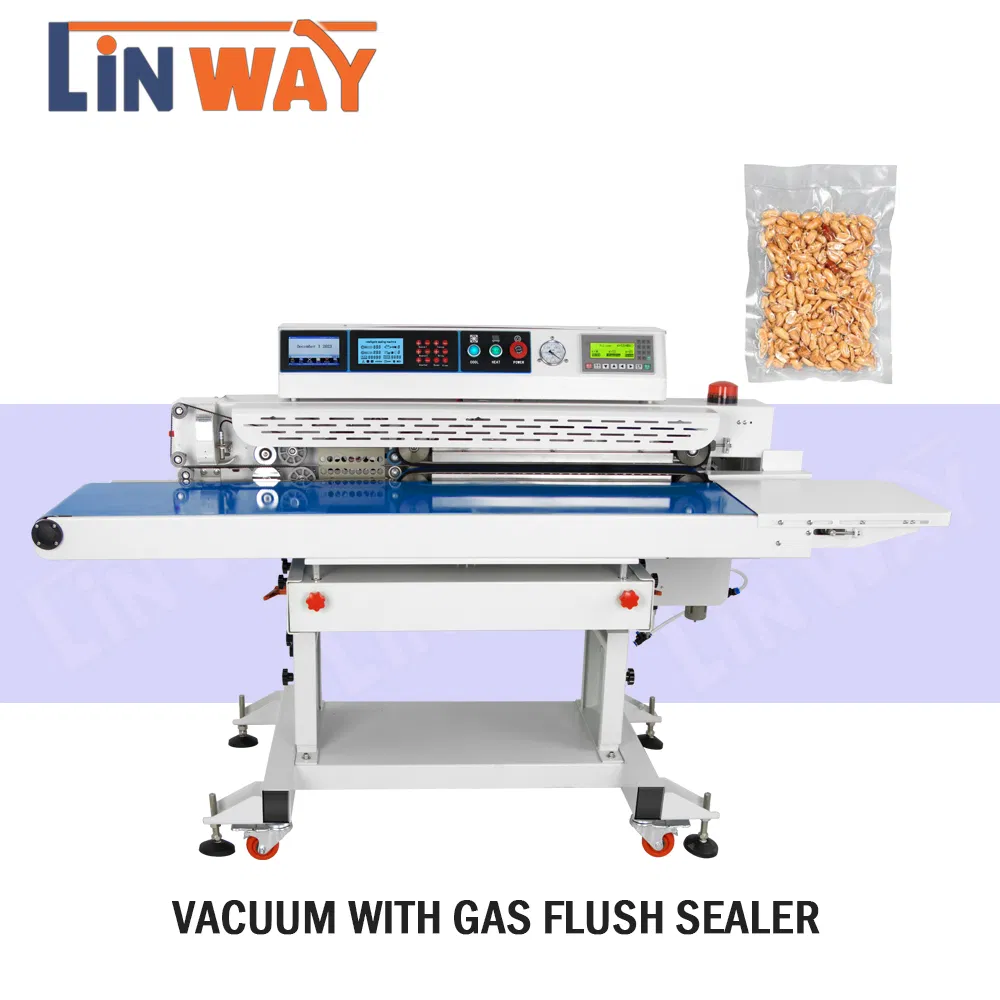

This unit is a new-developed generation with horizontal automatic vacuum with nitrogen flush sealing machine. It is designed to finish bag loading, opening, conveying, vacuuming, and gas flushing sealing. An optional printer can be integrated. With vacuum performance reaching -0.95mpa, it is an ideal choice for snack food packaging projects.

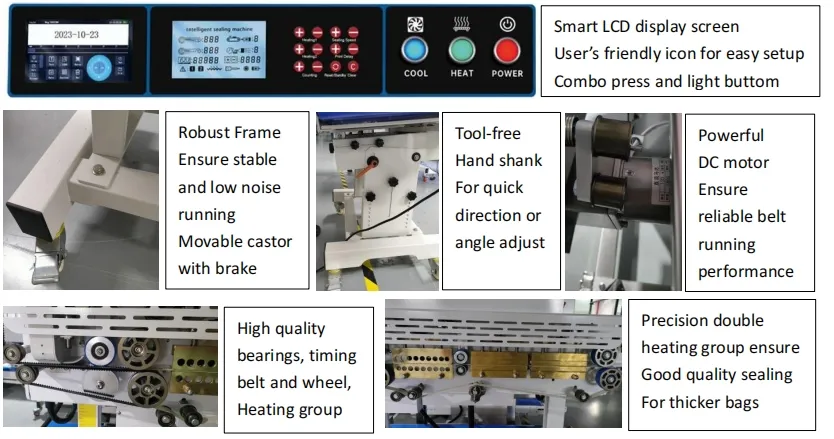

Key Technology

Rigid heavy-duty painted steel frame
Compact horizontal structure design
Flexible 15 degree bag holding belt adjustment
Digital intelligent main board control system
Steel coating fiber glass band for durability
Automatic tension adjustable sealing band
Tool-free quick adjust sealing head
User-friendly LCD screen with keypad setup
Double heating group for aluminum bags
Universal castors for flexible movement

Technical Specifications

Power Supply	220V/50-60HZ, 1P	Sealing Band Size	1210180.22mm
Motor	24V/120W/18K	Moving Belt Size	24402502mm
Sealing speed	0-20m/min	Max. Bag Size	420*400mm
Sealing Width	10mm	Belt Height	100-600mm
Heating Degree	0-260 ºC	Max. Loading	15kg
Machine Size	13005201060mm	Gross Weight	90kg

Note: Specifications are standard but can be customized based on pouch size and material. Product updates may occur without prior notice.

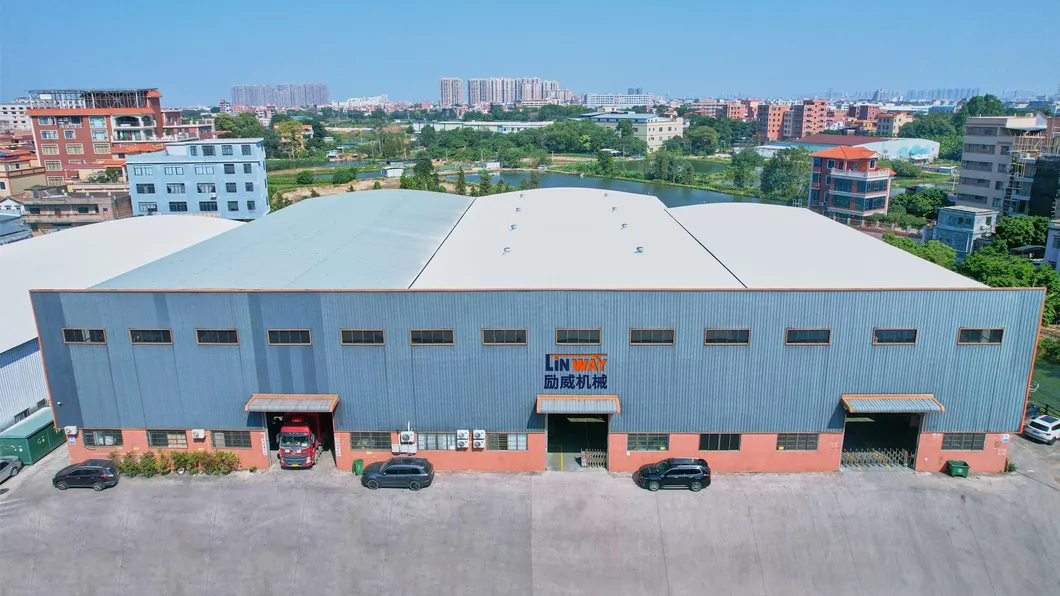

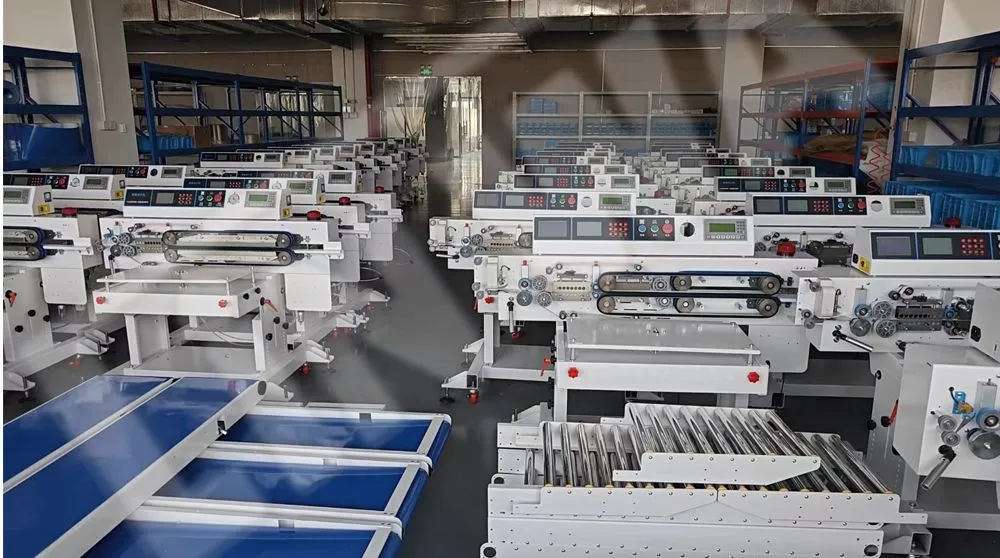

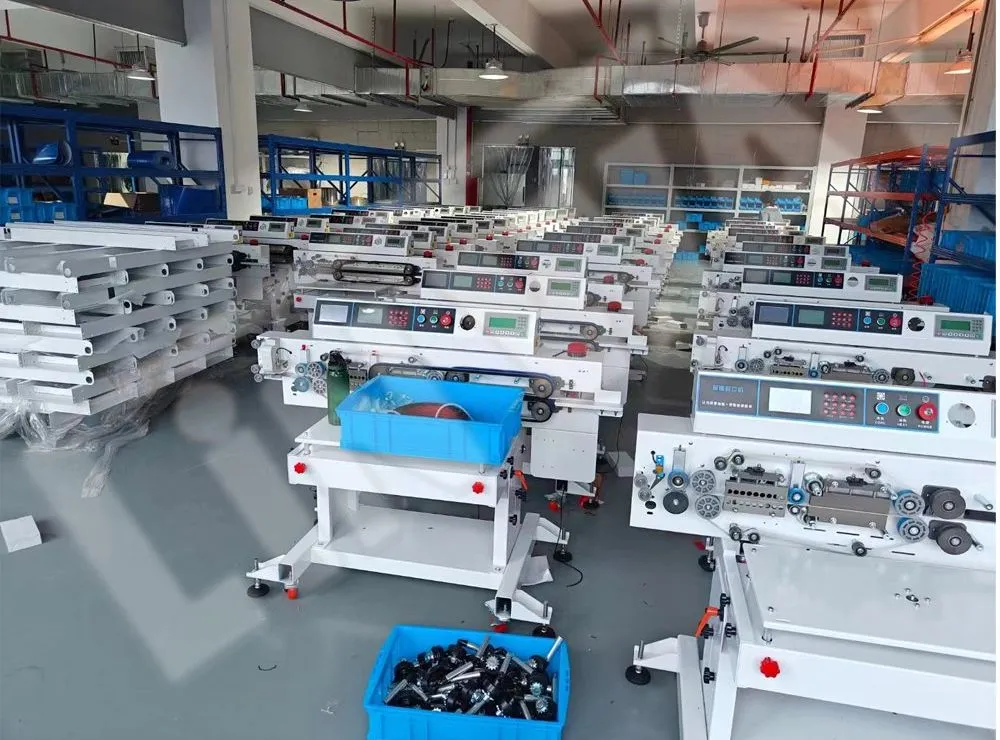

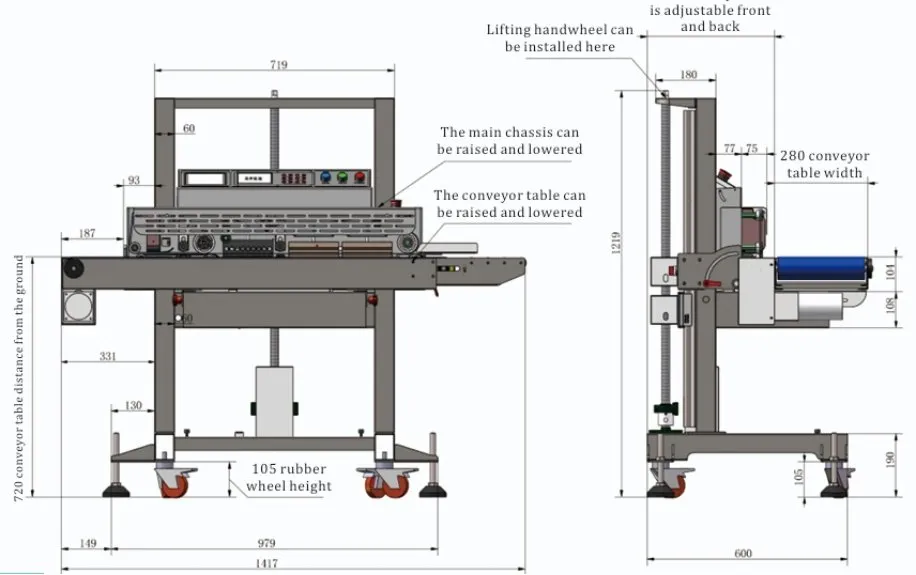

Main Structure & Factory

Frequently Asked Questions

Q1: What types of bags can the LW-350Q seal? It is designed for various plastic and aluminum foil bags, specifically suitable for pouches containing cosmetics, tea, vegetables, meat, and snacks.

Q2: Does the machine support both vacuum and nitrogen flushing? Yes, the machine features horizontal automatic vacuuming and nitrogen gas flushing to ensure food freshness and extended shelf life.

Q3: How fast can this machine seal bags? The sealing speed is adjustable, ranging from 0 to 20 meters per minute, allowing for flexible production arrangements.

Q4: Is the sealing temperature controllable for different materials? Absolutely. It uses an intelligent digital control board that allows for precise temperature adjustments between 0 and 260 degrees Celsius.

Q5: What is the maximum bag weight the conveyor can handle? The heavy-duty conveyor system can support a maximum loading weight of up to 15kg.

Q6: Can I add a date printer to the machine? Yes, various printing options such as ribbon, inkjet, or laser printers are available as optional add-ons.
