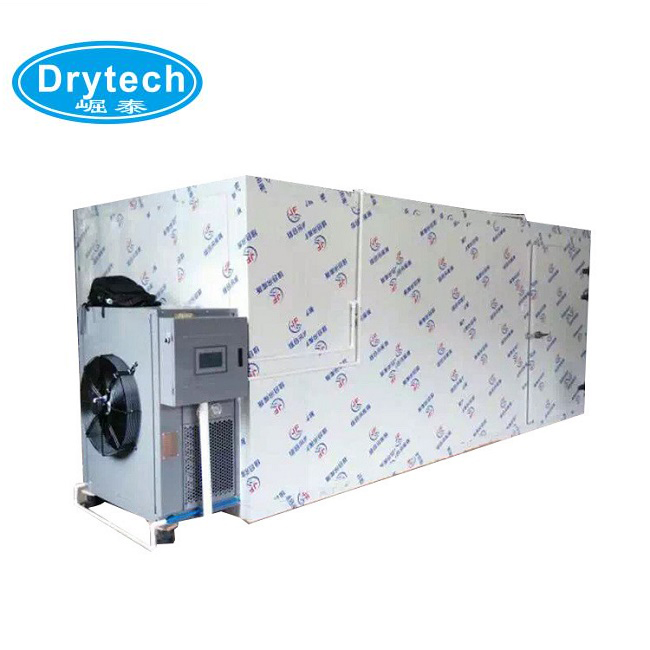

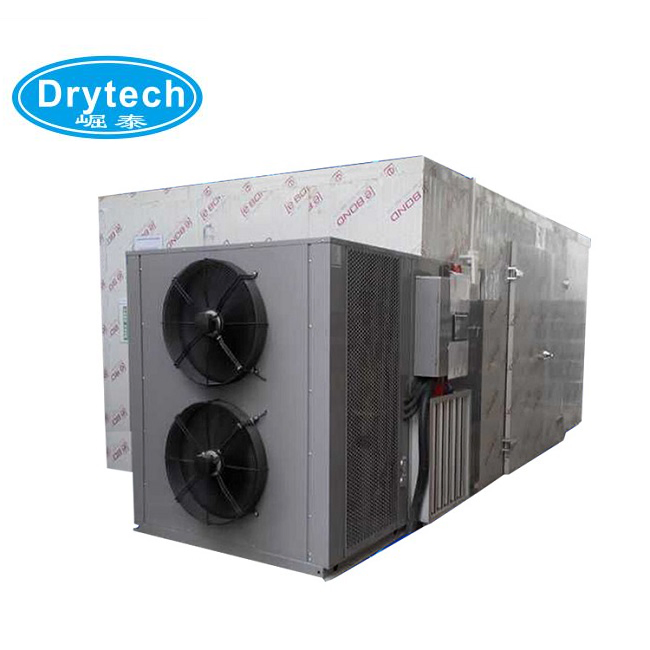

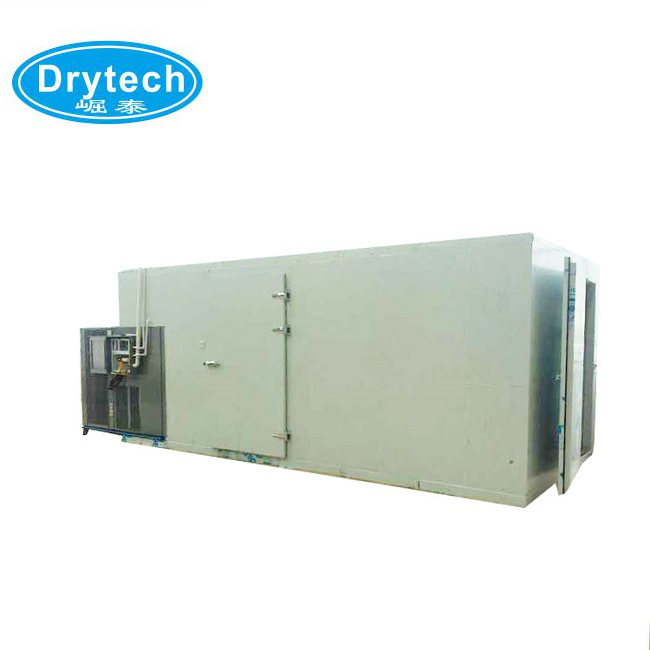

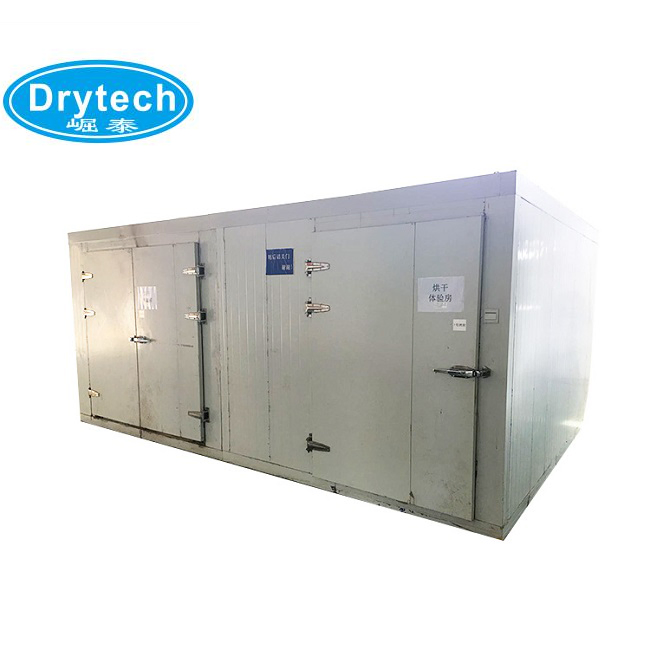

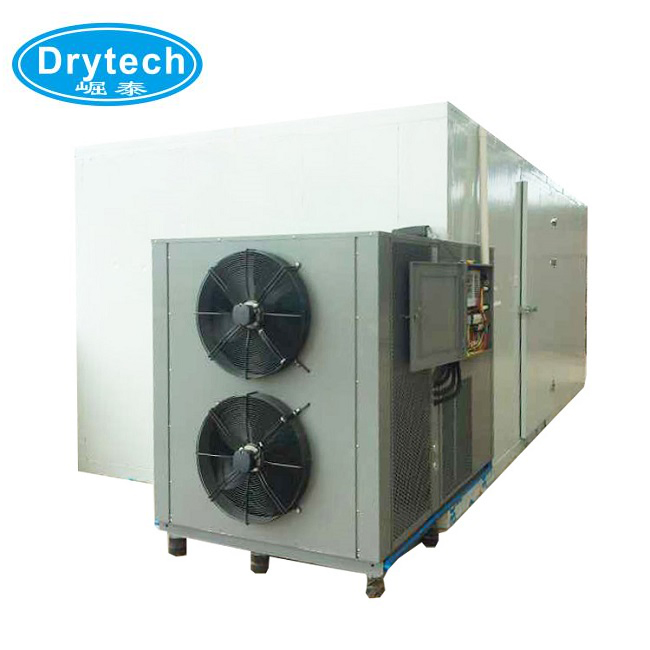

Selling Well Around The World Haw Slice Dryer Yam Dryer Thyme Drying Machine Commercial Food Dehydrator
Selling Well Around The World Haw Slice Dryer Yam Dryer Thyme Drying Machine Commercial Food Dehydrator
Selling Well Around The World Haw Slice Dryer Yam Dryer Thyme Drying Machine Commercial Food Dehydrator
Selling Well Around The World Haw Slice Dryer Yam Dryer Thyme Drying Machine Commercial Food Dehydrator
Selling Well Around The World Haw Slice Dryer Yam Dryer Thyme Drying Machine Commercial Food Dehydrator
1 / 5
Selling Well Around The World Haw Slice Dryer Yam Dryer Thyme Drying Machine Commercial Food Dehydrator
Selling Well Around The World Haw Slice Dryer Yam Dryer Thyme Drying Machine Commercial Food Dehydrator
Selling Well Around The World Haw Slice Dryer Yam Dryer Thyme Drying Machine Commercial Food Dehydrator
Selling Well Around The World Haw Slice Dryer Yam Dryer Thyme Drying Machine Commercial Food Dehydrator
Selling Well Around The World Haw Slice Dryer Yam Dryer Thyme Drying Machine Commercial Food Dehydrator

Selling Well Around The World Haw Slice Dryer Yam Dryer Thyme Drying Machine Commercial Food Dehydrator

Customization: Available
Type: Dryer
Voltage: 380V
Send Inquiry

Product Description

Basic Information
Model NO.
DT600H
Power
9.5kw
Heating Capacity
21kw
Drying Capacity
700kg
Material
Stainless Steel
Technology
Air Source Heat Pump
Application
Fruit, Vegetables, and Food Drying
Chamber Size
L6150xW2190xH2200mm
Trolley Qty
12PCS
Tray Qty
192PCS
Warranty
1 Year
Production Capacity
1200 PCS/Year
Product Description

What Are Heat Pump Drying Machines?

This drying machine takes advantage of the reversed Carnot principle, absorbing heat from the surroundings and transferring it to the materials to be dried. The system is mainly composed of a heat pump dryer and a drying chamber, controlled by an intuitive touch screen interface. It offers high efficiency with low electric consumption.

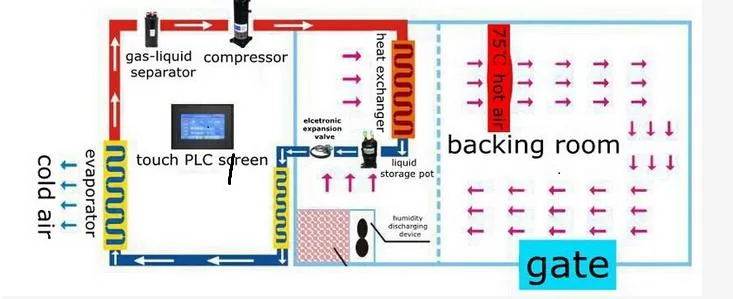

Working Principle
Drying + Dehumidify + Cooling

PLC + Touch Screen Control | 7-10 Days Delivery Time | No MOQ Limits

Technical Parameters
Model Power Supply Input (KW) Chamber Size (mm) Trolleys Trays Capacity/Batch
DT100H220V/1PH31655x1585x1500136100kg
DT300H220V/380V5.53200x2190x2200696300kg
DT600H380V/480V9.56150x2190x220012192600kg
DT1200H380V/480V19.46350x3230x2200203201300kg
DT1500HD380V/480V43.612470x4670x22007211525000kg
Project Cases & Processing
Project Display

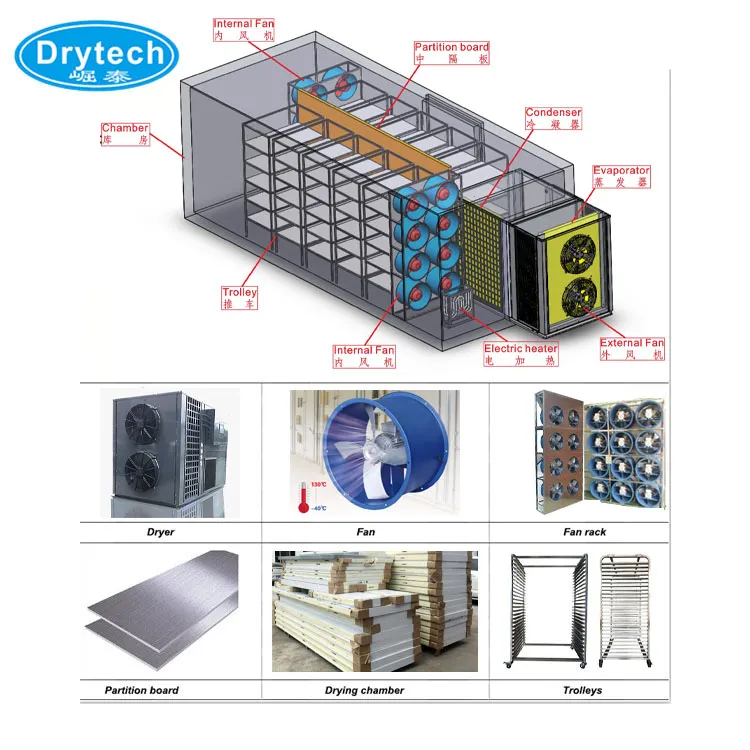

Equipment Overview

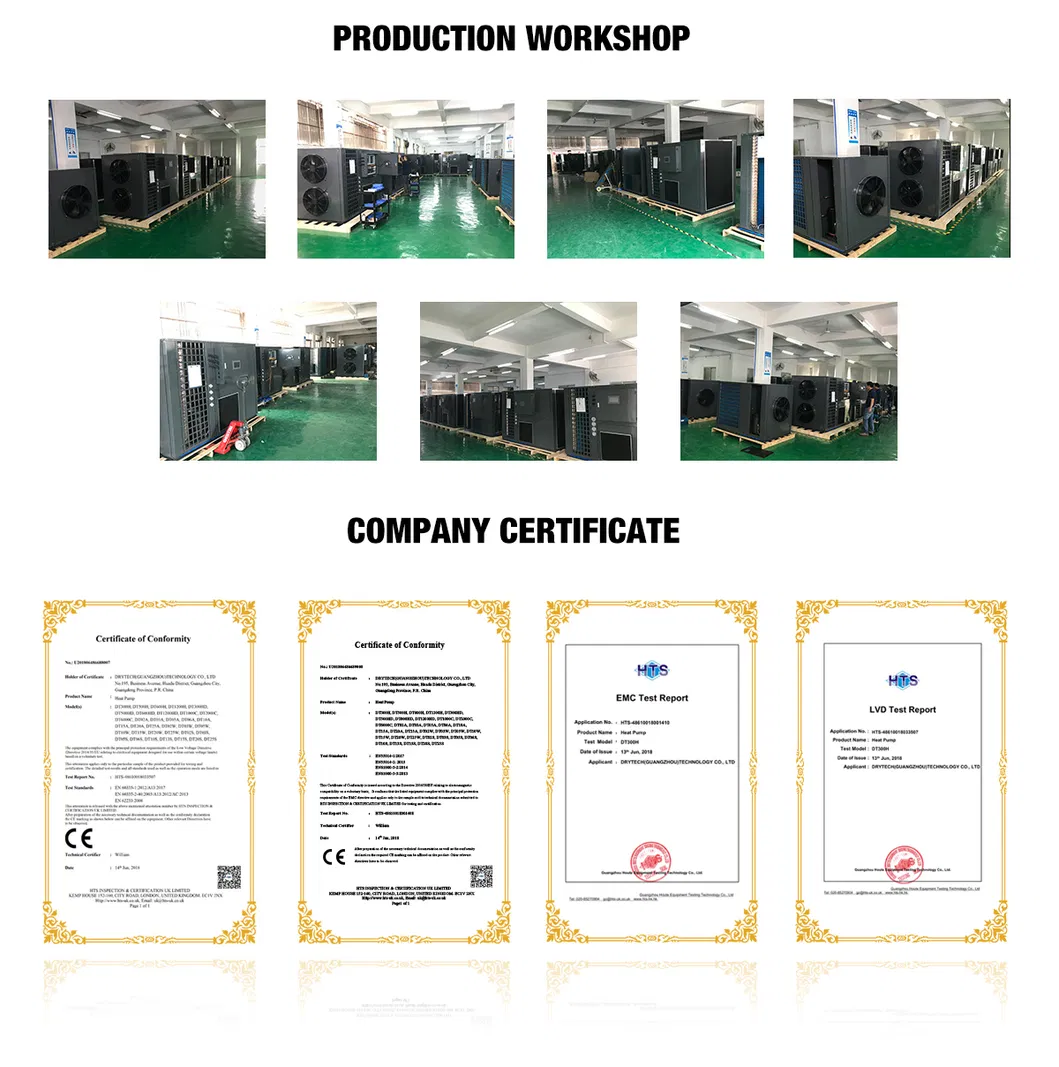

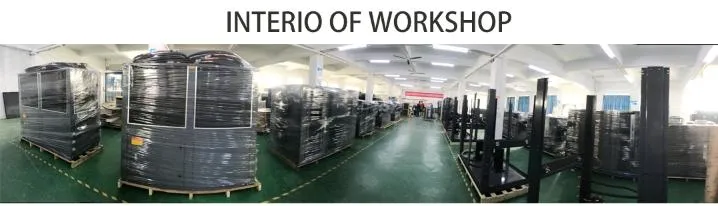

Processing 1 Processing 2

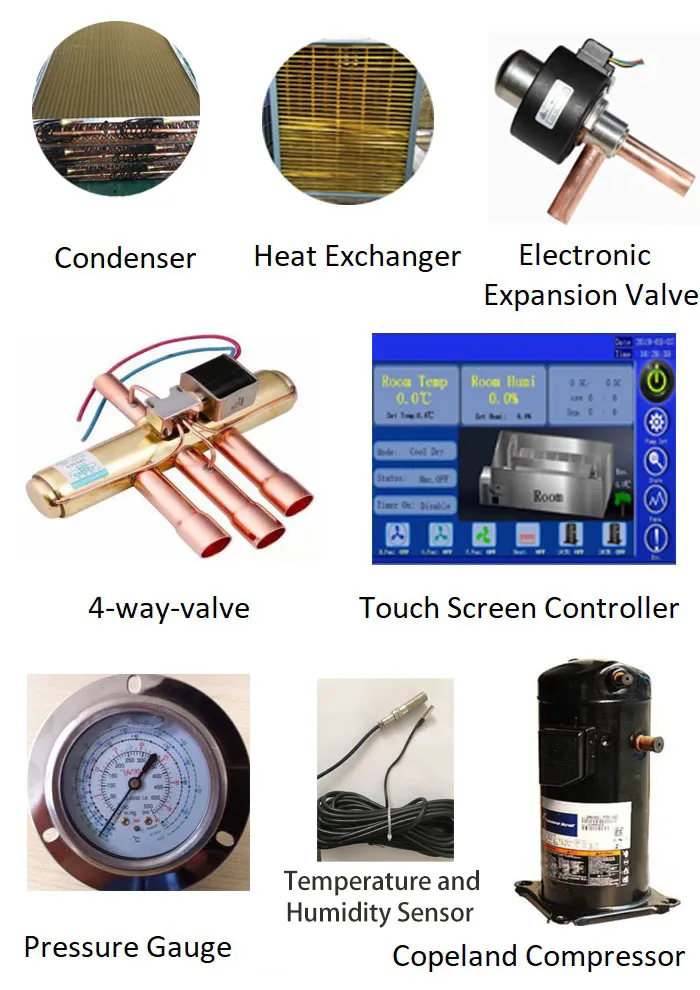

Main Components
Main Components
Professional Service

Technical Support:

  • Capacity calculation and model recommendation.
  • Refrigeration and electronic technical support.
  • Installation, debugging, and operation assistance.
  • Spare parts support during and after warranty.

After-Sales:

  • One-year standard warranty.
  • Extended warranty options available.
  • Economic spare parts replacement.
  • Online technical maintenance support.
Service Guarantee

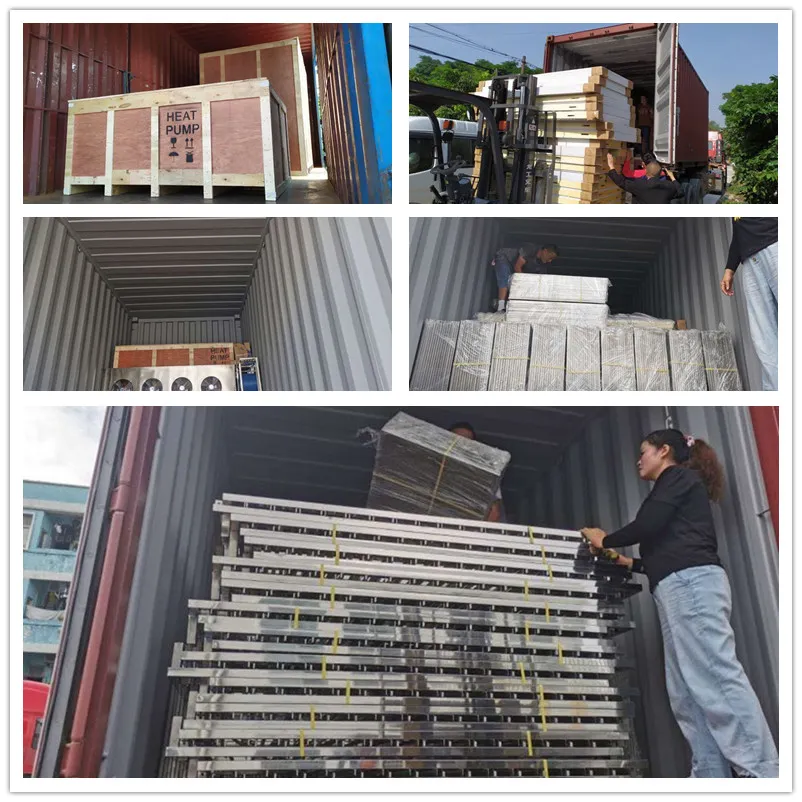

Packaging & Shipping
Packaging 1 Packaging 2
FAQ - Frequently Asked Questions
Q1: What are the main working modes of the dryer?
The machine features three primary modes: 1. Drying (fast temperature rise), 2. Drying + Dehumidify (temperature rise with moisture discharge), and 3. Cooling (can cool down to a minimum of 10°C).
Q2: What should I check if "High Pressure Protection" is triggered?
Check if the hot air circulating fans are working, ensure trays are not overloaded (blocking airflow), and verify that the electronic expansion valve is not jammed.
Q3: How do I handle "Low Pressure Protection" in cold weather?
Check for gas leaks first. If the weather is extremely cold, you may need to expand the check time for low pressure protection or use a low-temperature specific refrigerant gas.
Q4: What causes slow moisture discharge?
Slow discharge is usually caused by a damaged dehumidify fan, a controller error, or insufficient power to the dehumidifying system.
Q5: Is it possible to customize the chamber size?
Yes, we offer customized solutions. While we have standard models like the DT600H, the chamber dimensions and trolley quantities can be adapted to your specific site requirements.
Q6: What materials are suitable for this food dehydrator?
This commercial dehydrator is ideal for a wide range of products including haw slices, yam, thyme, fruits, vegetables, and various food items requiring energy-saving drying.
