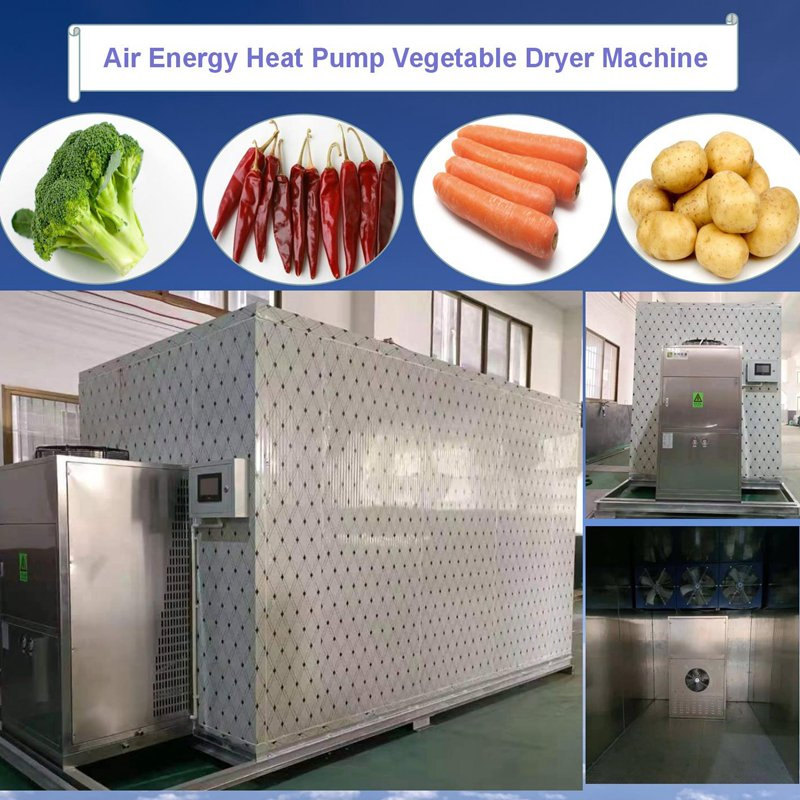

Food Industrial Fruit Dryer Digital Control Garlic Grape Drying Machine Seafood Potato Dehydration Hot Air Dryer Machinery Raisins Yam Vegetable Dehydrator
Food Industrial Fruit Dryer Digital Control Garlic Grape Drying Machine Seafood Potato Dehydration Hot Air Dryer Machinery Raisins Yam Vegetable Dehydrator
Food Industrial Fruit Dryer Digital Control Garlic Grape Drying Machine Seafood Potato Dehydration Hot Air Dryer Machinery Raisins Yam Vegetable Dehydrator
Food Industrial Fruit Dryer Digital Control Garlic Grape Drying Machine Seafood Potato Dehydration Hot Air Dryer Machinery Raisins Yam Vegetable Dehydrator
Food Industrial Fruit Dryer Digital Control Garlic Grape Drying Machine Seafood Potato Dehydration Hot Air Dryer Machinery Raisins Yam Vegetable Dehydrator
1 / 5
Food Industrial Fruit Dryer Digital Control Garlic Grape Drying Machine Seafood Potato Dehydration Hot Air Dryer Machinery Raisins Yam Vegetable Dehydrator
Food Industrial Fruit Dryer Digital Control Garlic Grape Drying Machine Seafood Potato Dehydration Hot Air Dryer Machinery Raisins Yam Vegetable Dehydrator
Food Industrial Fruit Dryer Digital Control Garlic Grape Drying Machine Seafood Potato Dehydration Hot Air Dryer Machinery Raisins Yam Vegetable Dehydrator
Food Industrial Fruit Dryer Digital Control Garlic Grape Drying Machine Seafood Potato Dehydration Hot Air Dryer Machinery Raisins Yam Vegetable Dehydrator
Food Industrial Fruit Dryer Digital Control Garlic Grape Drying Machine Seafood Potato Dehydration Hot Air Dryer Machinery Raisins Yam Vegetable Dehydrator

Food Industrial Fruit Dryer Digital Control Garlic Grape Drying Machine Seafood Potato Dehydration Hot Air Dryer Machinery Raisins Yam Vegetable Dehydrator

Customization: Available
After-sales Service: on-Site Service&Online Support
Warranty: 1 Year
Send Inquiry

Product Description

Fruits Vegetable Food Dryer Digital Control Dehydrator

Food Dehydrator Main

Technical Specifications

Model NO.
DY-60YL/YH(20HP)
Type
Dryer
Voltage
380V
Heating Capacity
60kw
Dehumidification
60L/H
Rated Power
18.4kw
Package Size
240.00cm * 190.00cm * 170.00cm
Gross Weight
690.000kg

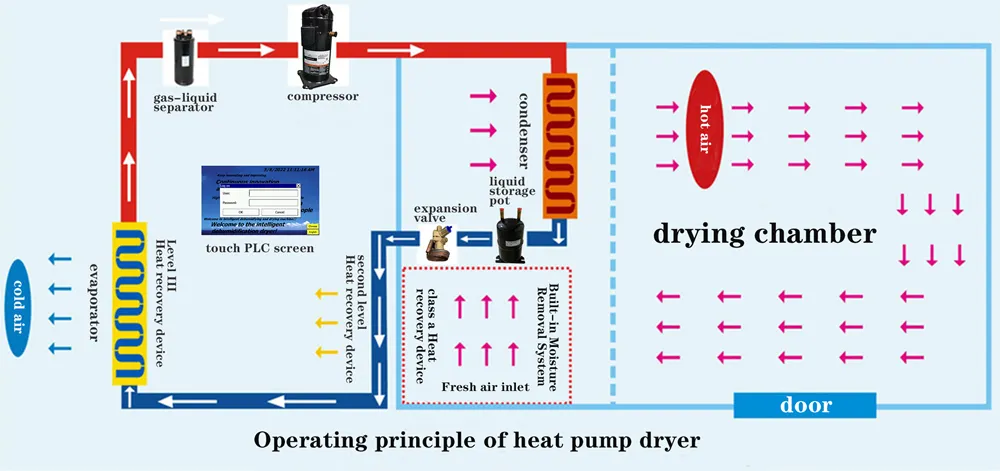

Working Principle

The energy-saving heat pump dryer machine utilizes the inverse Carnot cycle principle, driven by minimal electric energy:

⚡ 1) Refrigerant (Freon) is pressurized by the compressor into high-temperature gas (up to 100ºC).
🔄 2) Heat energy is released in the condenser and transferred to the drying chamber via a circulating fan.
💧 3) Moisture in materials is vaporized by hot air and discharged by the dehumidification system.
🌡️ 4) The system continuously absorbs low-level heat from the surrounding air to maintain the heating cycle.

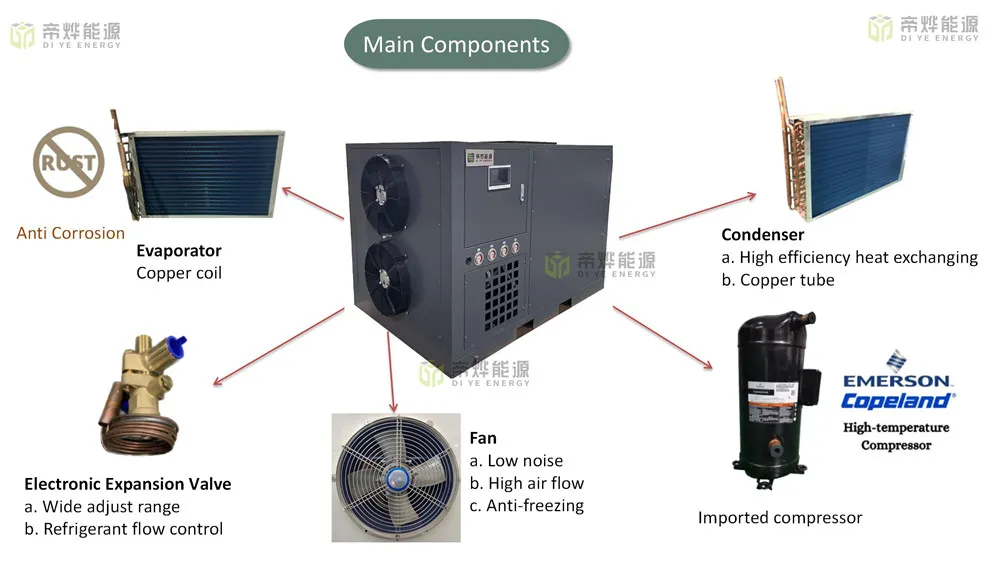

Components 1

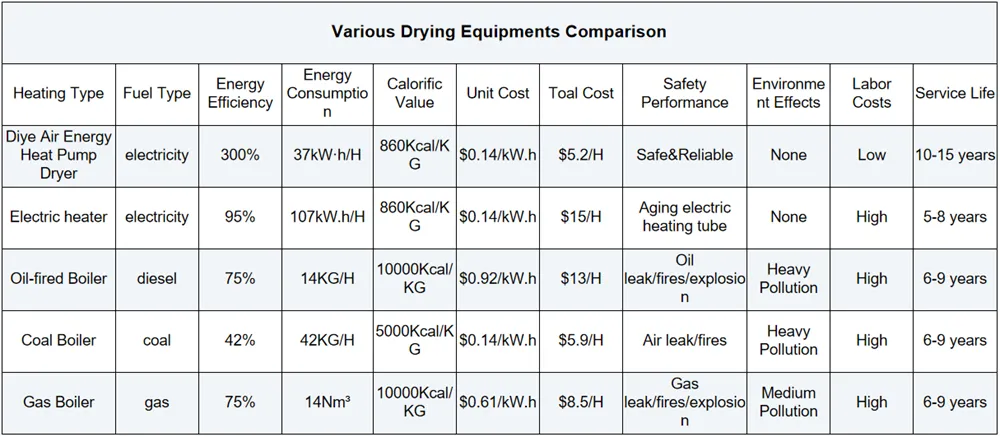

Components 2

Main Advantages

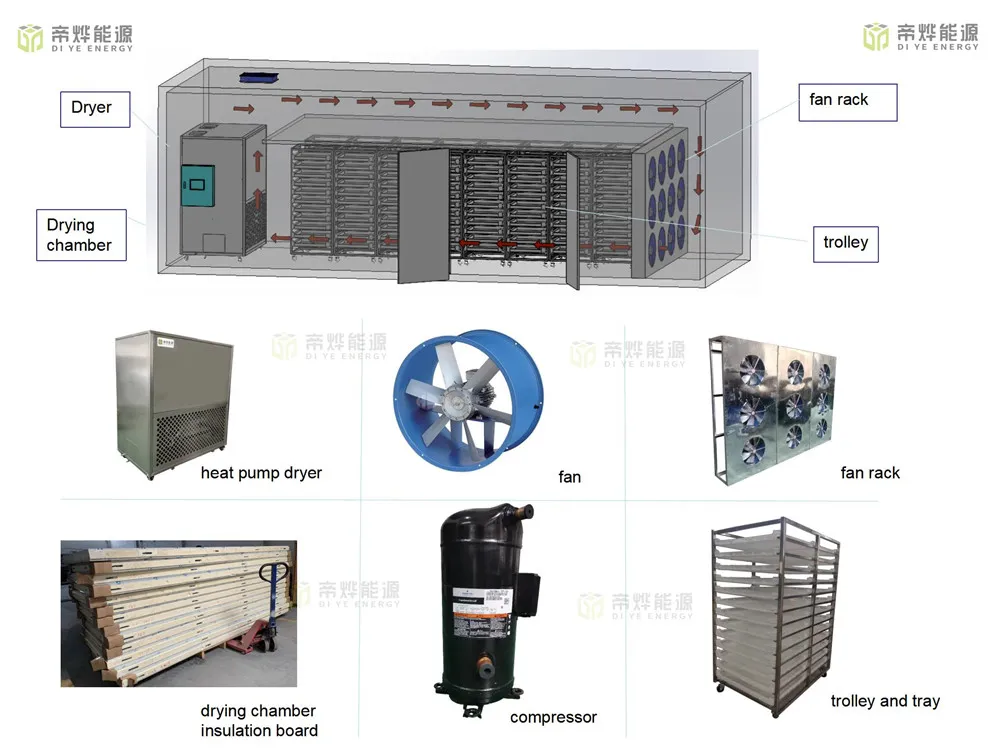

Advantages Overview
  • ✅ Automatic Control: PLC and touch screen fully automatic control mode with remote access.
  • ✅ Energy Saving: Save more than 50% energy compared to traditional drying methods.
  • ✅ Stable Operation: Dedicated compressor and expansion valve ensure stability in all conditions.
  • ✅ Weather Independent: Not affected by external temperatures; works efficiently in cold climates.
  • ✅ Multi-Functional: Adopts both cold-air dehumidification and hot-air drying methods.

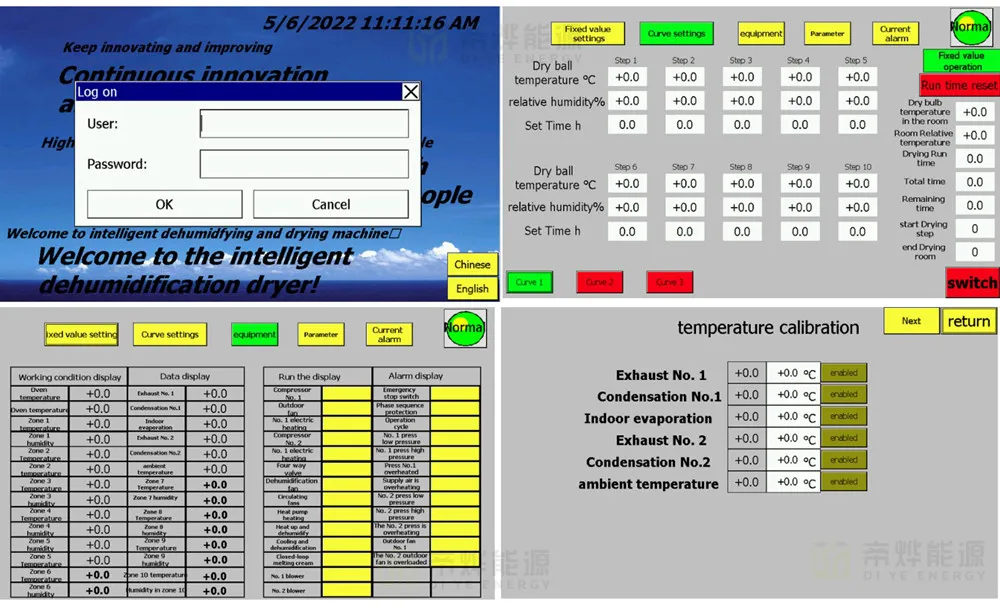

Touch Screen Control

Technical Parameters Comparison

Model Number DY-18YL/YH(6HP) DY-36YL/YH(12HP) DY-45YL/YH(15HP) DY-60YL/YH(20HP) DY-75YL/YH(25HP)
Heating Capacity 18kw 36kw 45kw 60kw 75kw
Moisture Removal 18L/H 36L/H 45L/H 60L/H 75L/H
Rated Power 5.2kw 11.5kw 15.4kw 18.4kw 22.8kw
Voltage/Freq 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Drying Temp 35~70ºC 35~70ºC 35~70ºC 35~70ºC 35~70ºC

Wide Range Applications

Suitable for 85% of Material Solutions:

• Vegetables & Fruits: Apples, mangoes, pitaya, carrots, cassava, etc.
• Meat & Seafood: Sausage, beef, fish, shrimp, squid, etc.
• Crops & Herbs: Grains, noodles, ginseng, Ganoderma, etc.
• Industrial: Incense, rubber, leather, paper tubes, wood, etc.

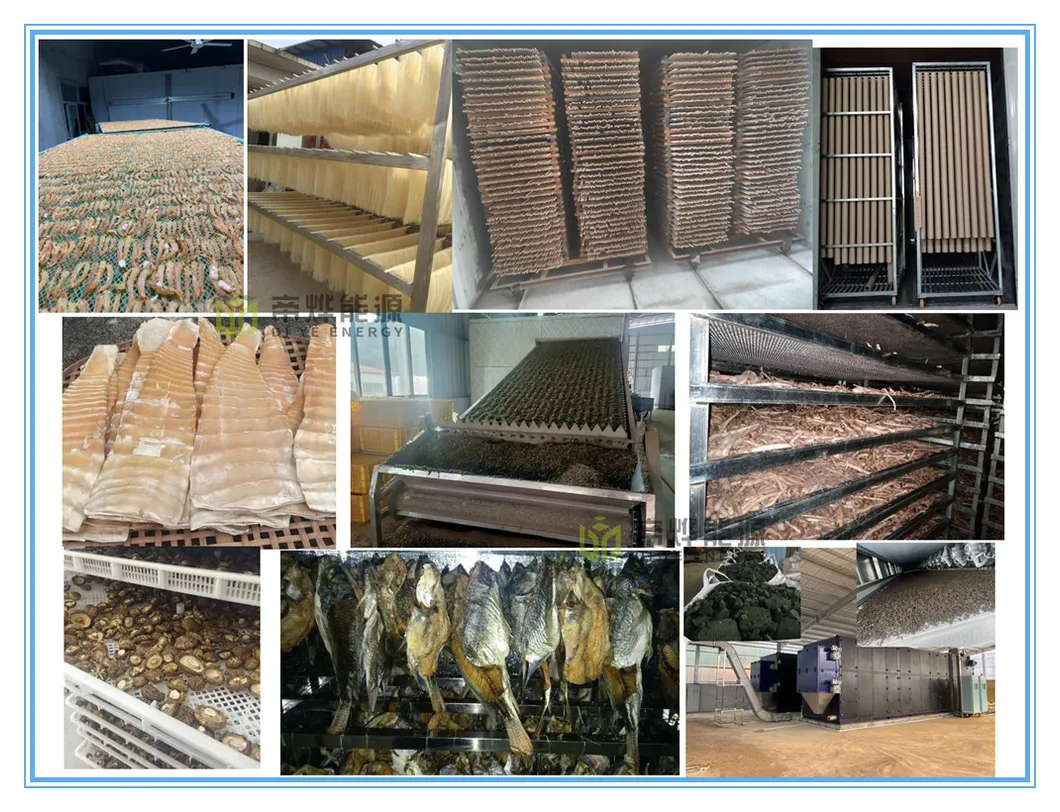

Application Gallery

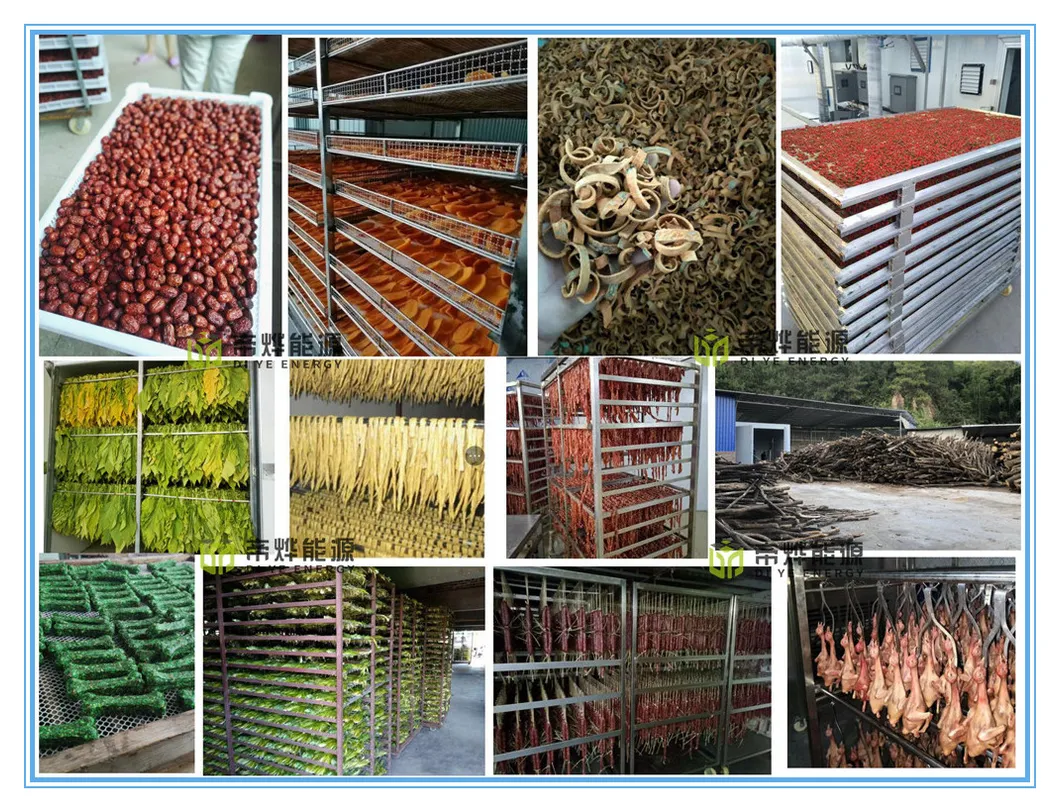

Project 1
Project 2

Workflow & Quality Assurance

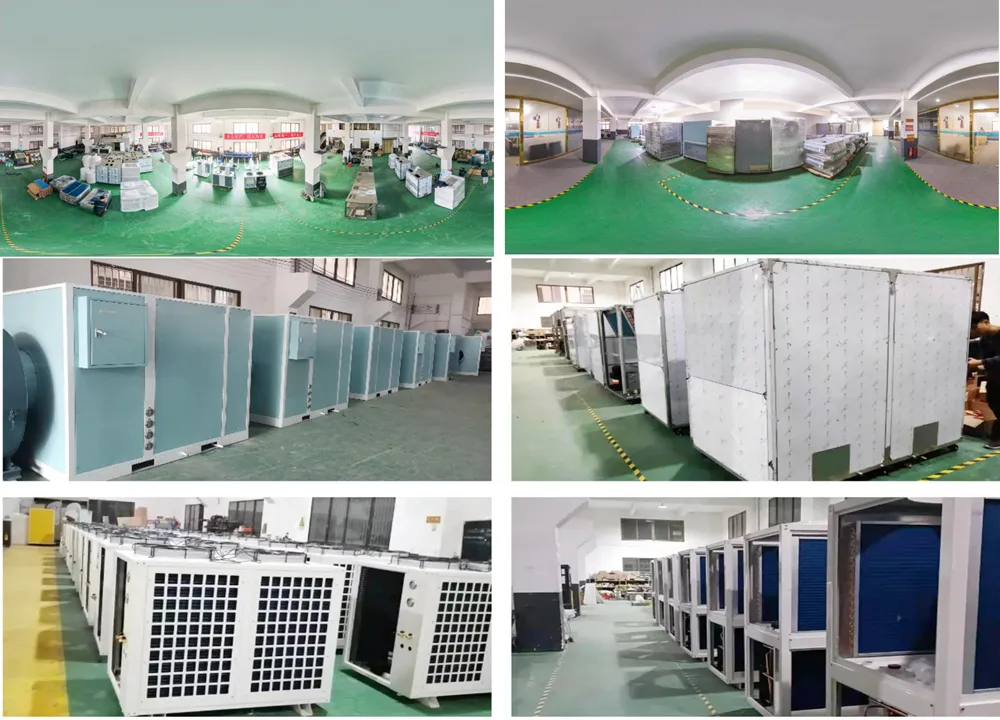

Workflow 1
Workflow 2
Workflow 3

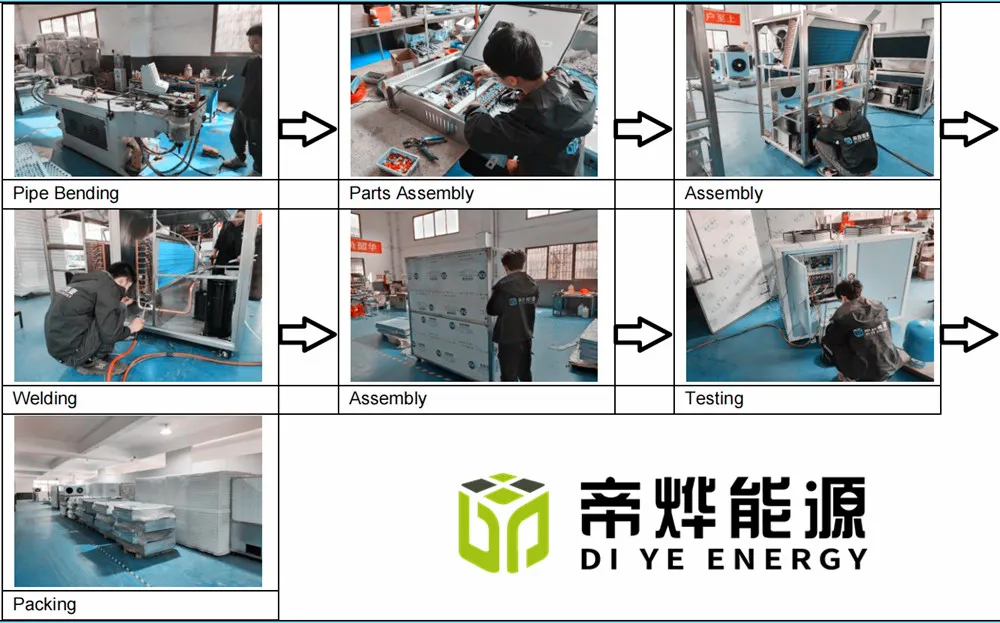

Chart
Certification 1
Certification 2
Packaging

Frequently Asked Questions

What materials can this heat pump dryer process?
It is suitable for a wide range of products including fruits, vegetables, meat, seafood, agricultural crops, Chinese herbs, and industrial materials like wood or ceramics.
How much energy does the system save?
By using regenerative circulation heat pump dehumidification technology, our dryers can save more than 50% energy compared to traditional drying methods.
What is the adjustable temperature range in the drying chamber?
The drying chamber temperature can be accurately controlled between 35°C and 70°C, making it suitable for temperature-sensitive materials.
Is the equipment easy to operate for non-technical users?
Yes, it features a PLC and intelligent touch screen with a fully automatic control mode. Once the parameters are set, the microcomputer completes the process automatically.
Can it work in cold winter environments?
Absolutely. The closed-loop design ensures that the drying efficiency is not affected by external ambient temperatures, making it ideal for use in cold areas.
Does the machine provide environmental protection?
Yes, the system offers zero pollution and uses closed-type condensation technology which can even recover volatile components from materials if needed.
