Electric Screw Crushing Ginger Vegetable Squeeze Juicer Juice Extractor Machine Automatic Slag Juice Separation Equipment

Customization:	Available
After-sales Service:	One-Year Warranty, Lifelong Maintenance Service.
Warranty:	1 Year

Send Inquiry

Product Description

🍊 Basic Information

Model NO.

PSZZ-1.5

Type

Industrial Juicer

Voltage

380V

Power

7.7kw

Material

SUS304 Stainless Steel

Capacity

1000-1500 Kg/H

Mesh Diameter

φ0.6-φ1.2 mm

Function

Multi-Functional Juicing

Certificate

ISO9001, CE

Weight

360kg

📦 Packaging & Delivery

Package Size

128.00cm * 82.00cm * 190.00cm

Gross Weight

400.000kg

Transport

Wooden Case, Wrapping Film

⚙️ Product Description

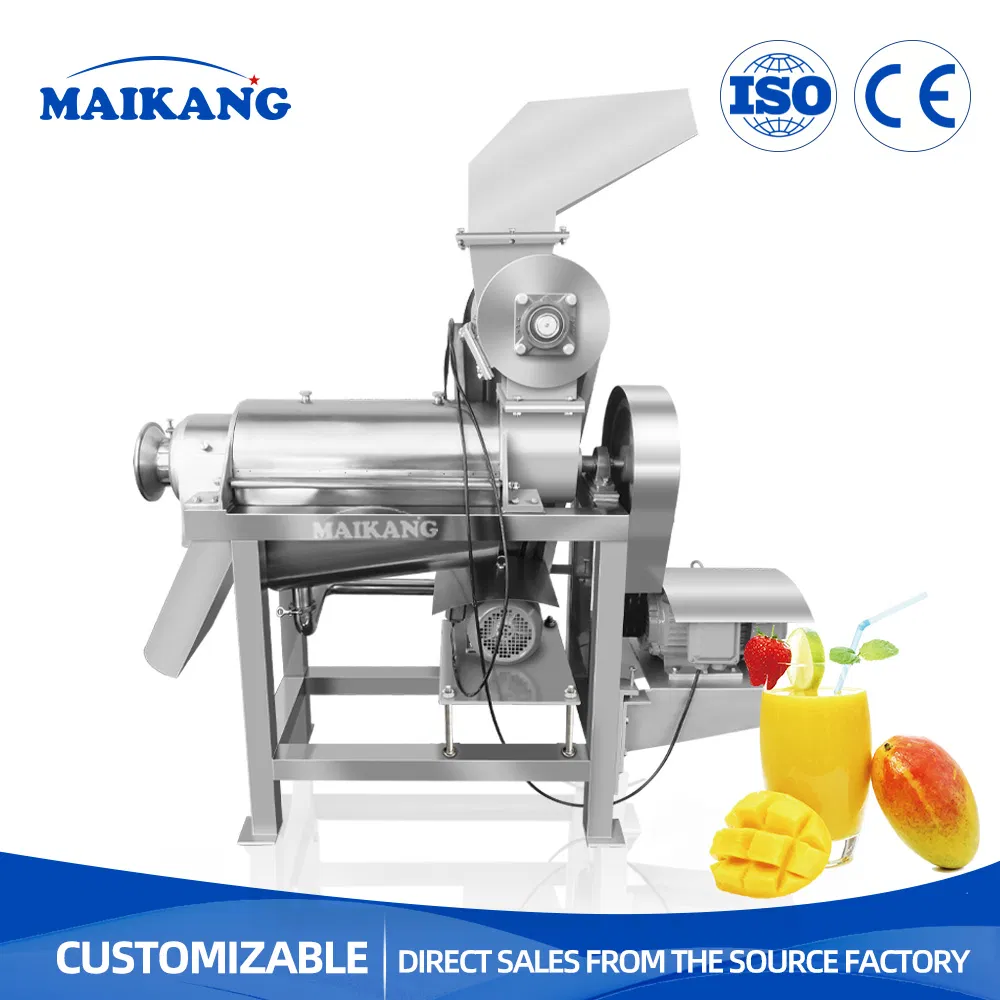

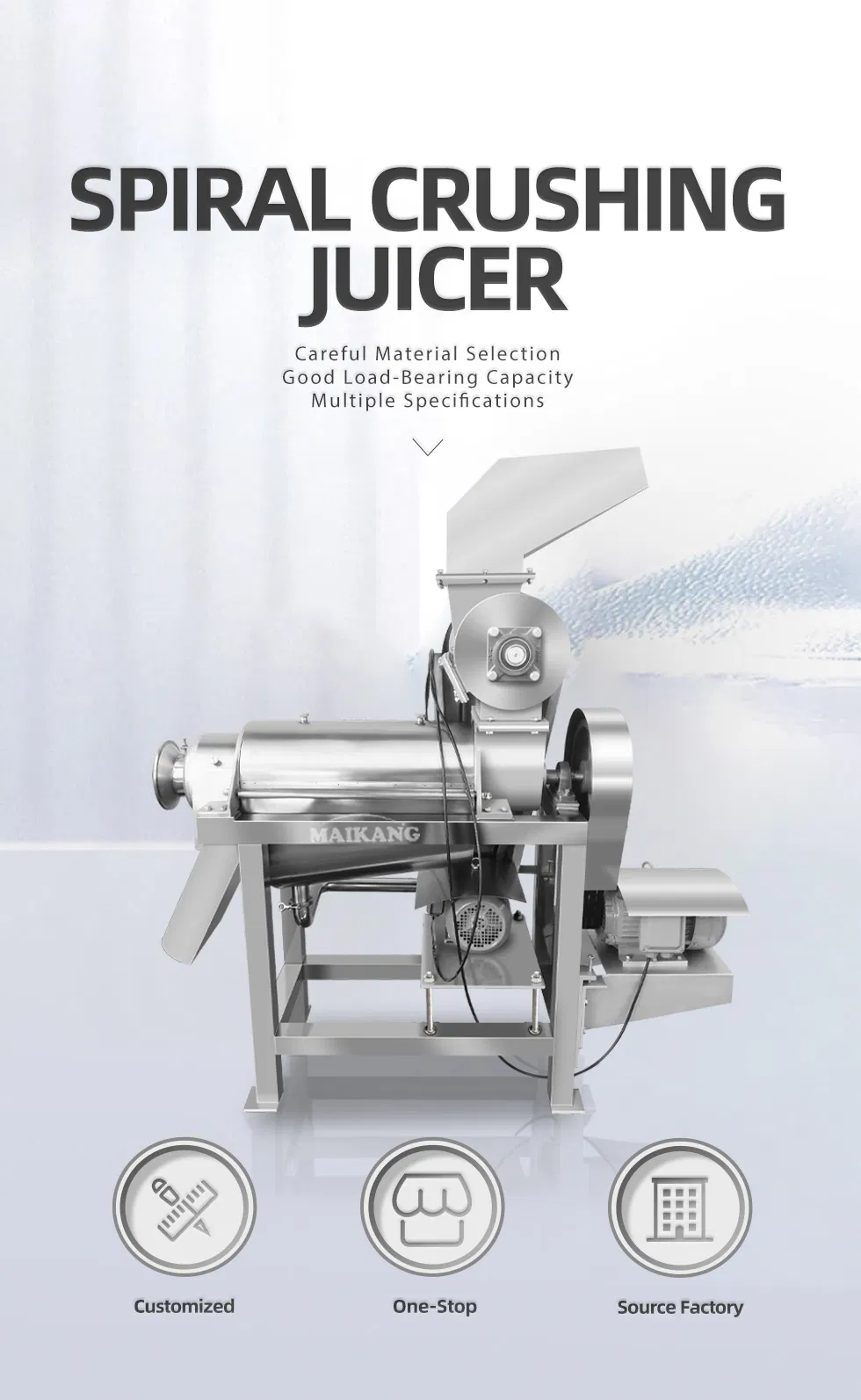

Electric Screw Crushing Ginger Vegetable Squeeze Juicer Machine

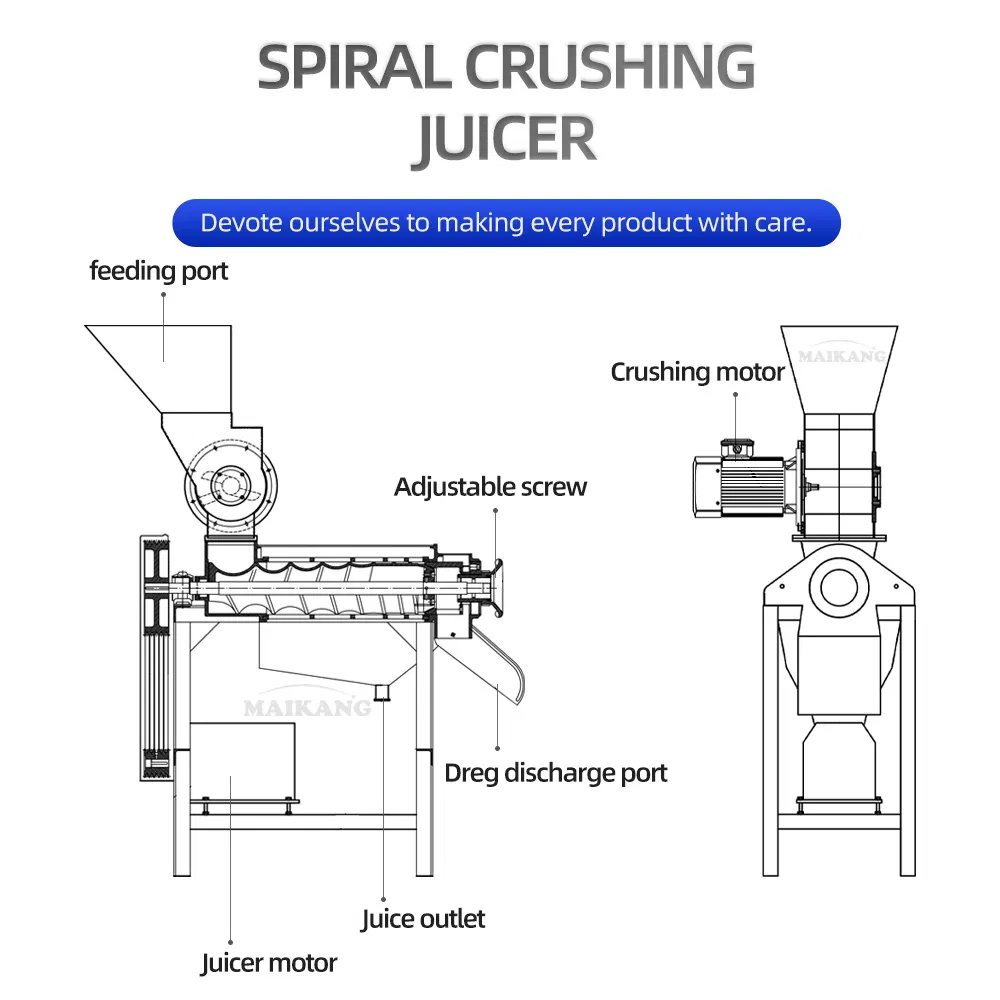

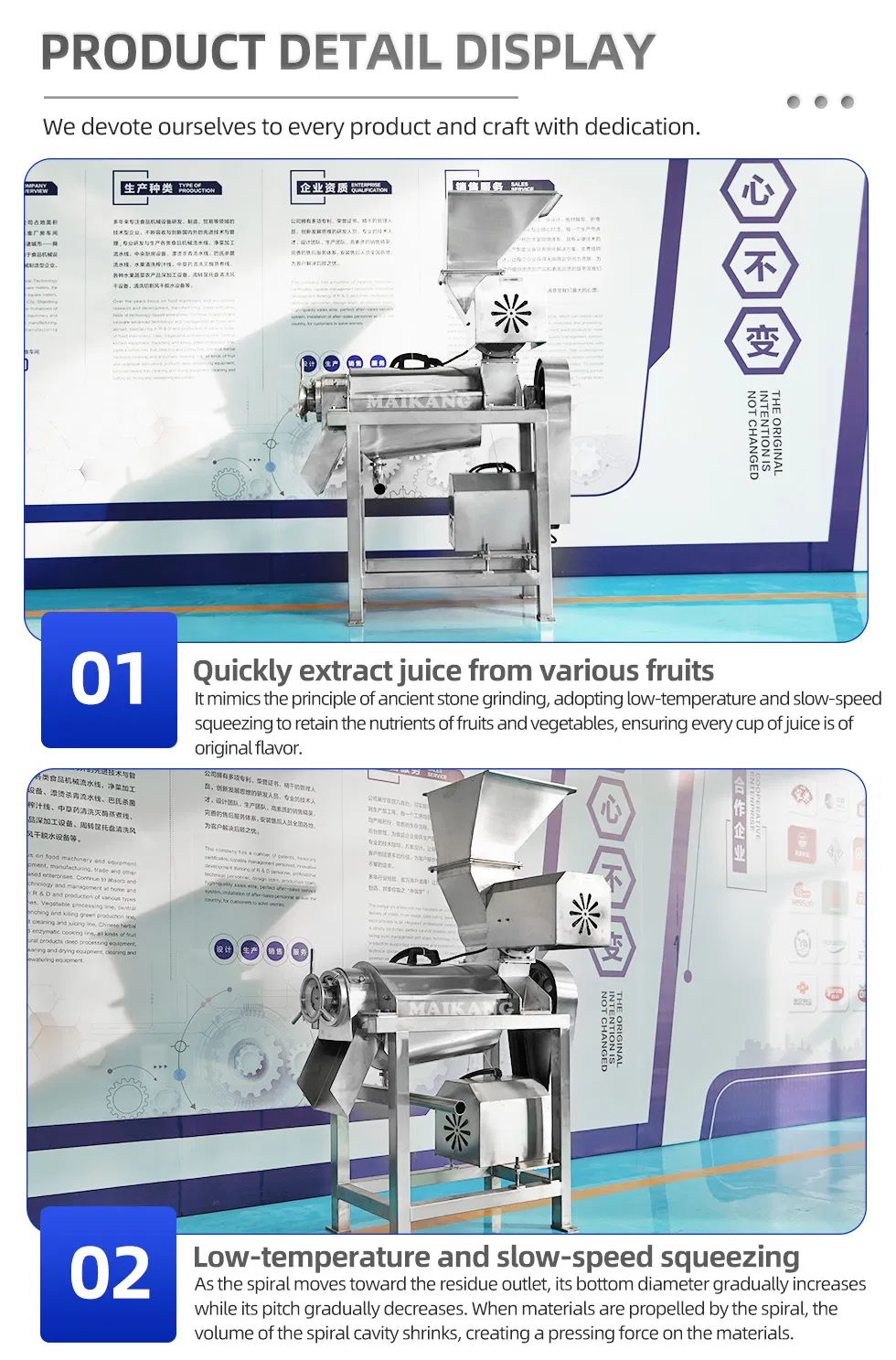

This crushing juicer operates around a central screw. As the screw rotates, it transports material from the hopper toward the pulp outlet. The screw is uniquely designed with a gradually increasing root diameter and a decreasing pitch along its length. This design progressively reduces the volume of the compression chamber, systematically squeezing the material. The extracted juice passes through a surrounding filter screen into a collection container, while the dry pulp is expelled through an adjustable gap between the screw and a conical pressure regulator.

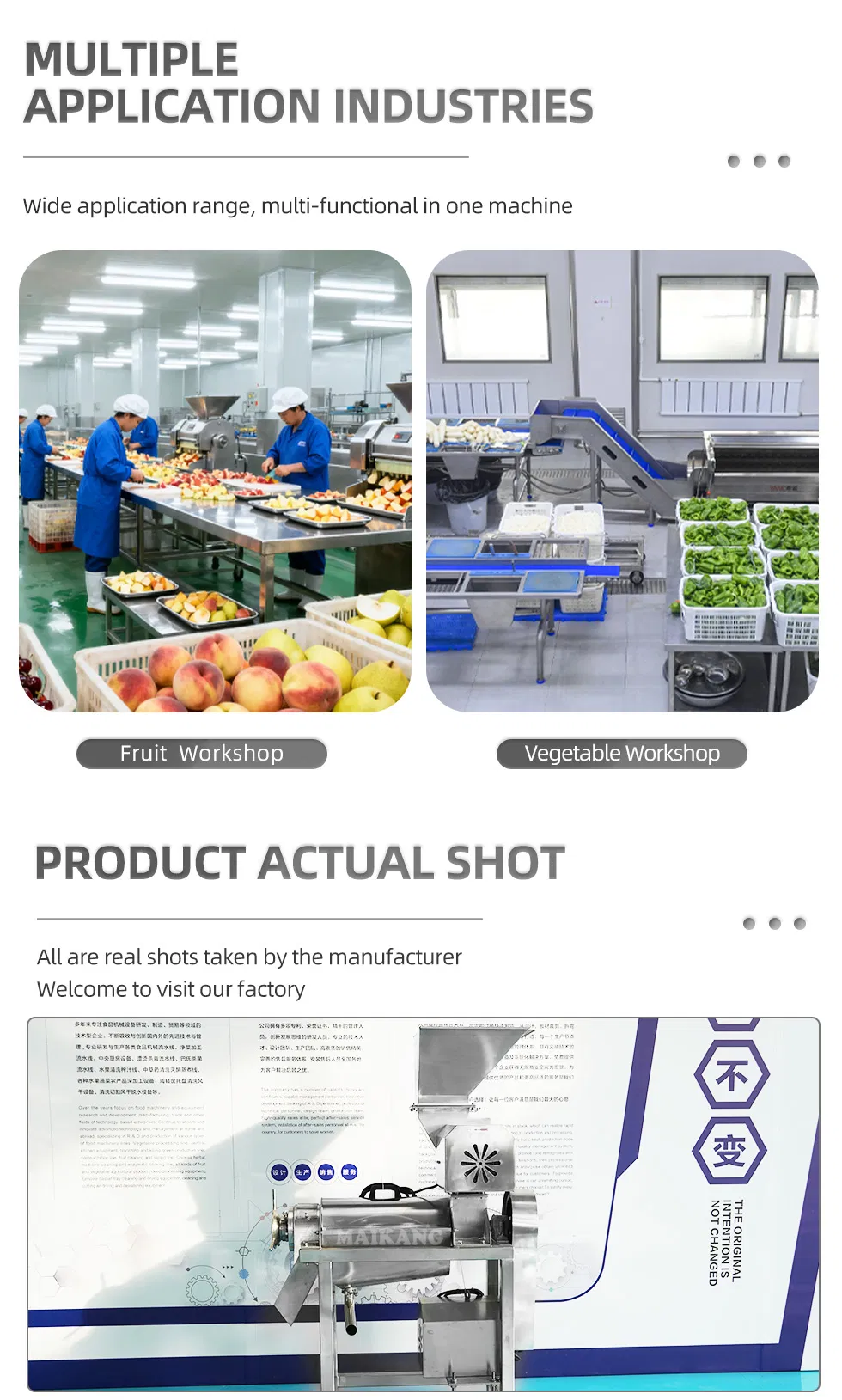

Widely used for extracting fruit juice, vegetable juice, enzyme juice, medicinal juice, and more.

📊 Technical Specifications

Model	Overall Size	Total Power	Material	Capacity	Weight	Application
PSZZ-0.5	10305001650mm	4.5kw	SUS304	300-500kg/h	200kg	Watermelon, grapes, strawberries, pears, apples, lemons, oranges, tomatoes, papaya, carrot, ginger and other fruit and vegetable juice.
PSZZ-1.5	12608001880mm	7.7kw	SUS304	1000-1500kg/h	360kg
PSZZ-2.5	21007302100mm	19kw	SUS304	1500-3000kg/h	870kg

🌟 Why Choose Our Technology

💎

Higher Juice Yield and Drier Pulp

The progressive compression design more thoroughly squeezes ingredients, extracting more liquid and reducing food waste.

🌿

Superior Juice Quality

Low-speed squeezing avoids heat generation, preserving heat-sensitive vitamins and enzymes while reducing oxidation for a longer shelf life.

🔇

Low Noise Operation

A powerful motor drives the screw at low speeds, eliminating the harsh noise and vibration common in high-speed centrifugal juicers.

🍍

Wide Range of Ingredients

Efficiently processes hard fruits, leafy greens (kale, spinach), herbal plants (wheatgrass), and soft berries.

🔧

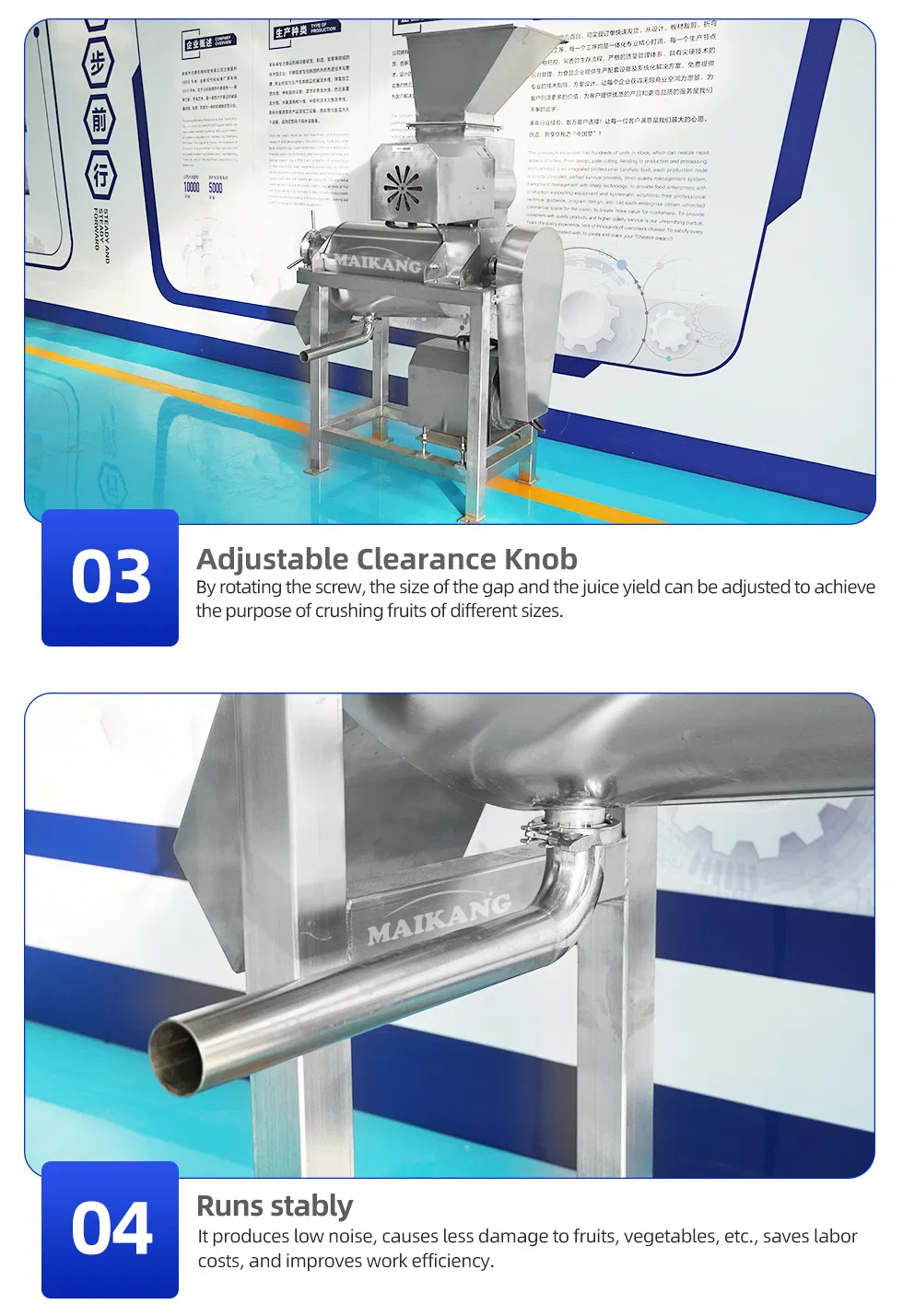

Adjustable Pulp Extraction

Users can flexibly adjust juice clarity and pulp dryness by moving the regulator axially.

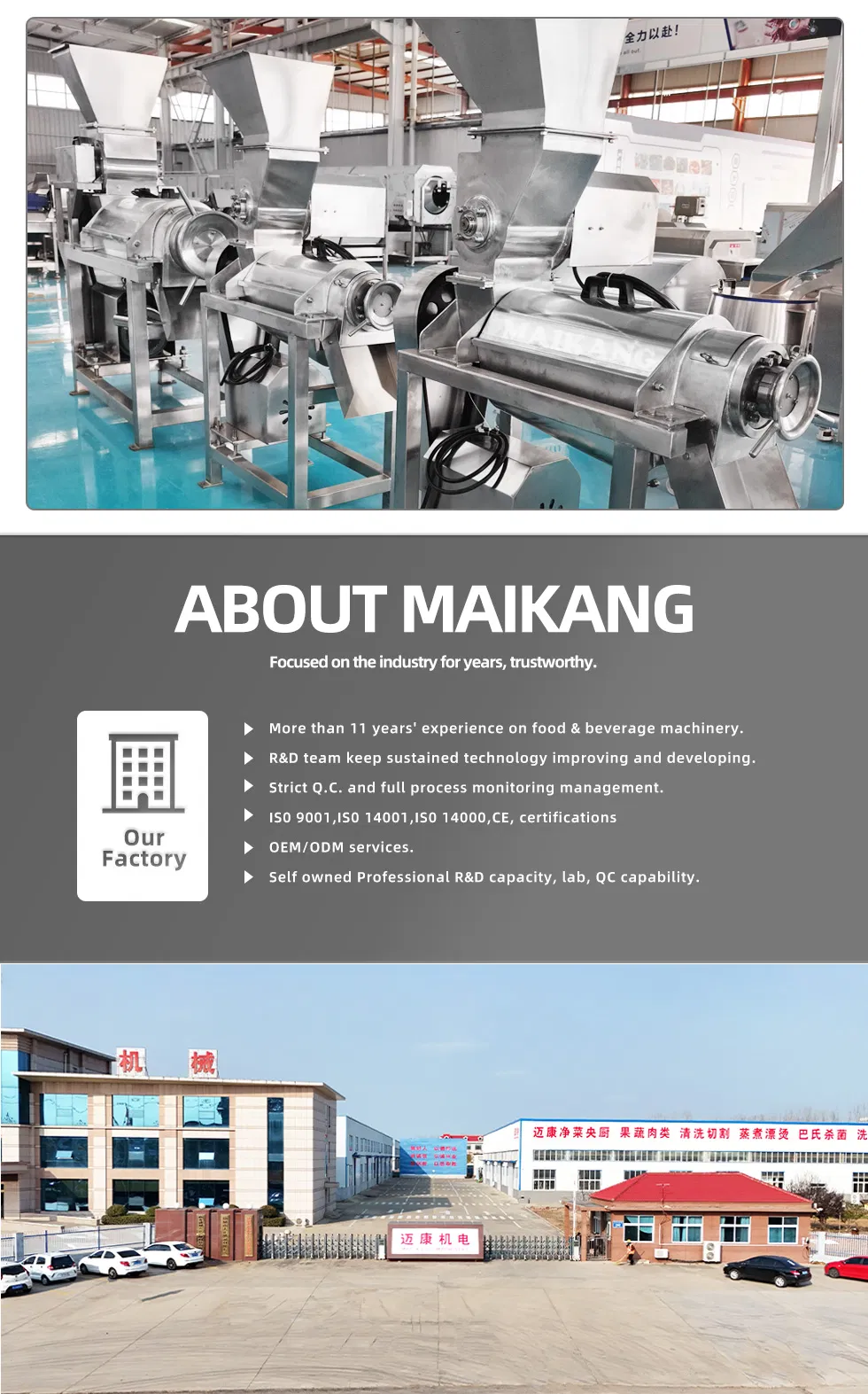

🏢 Professional Manufacturer Profile

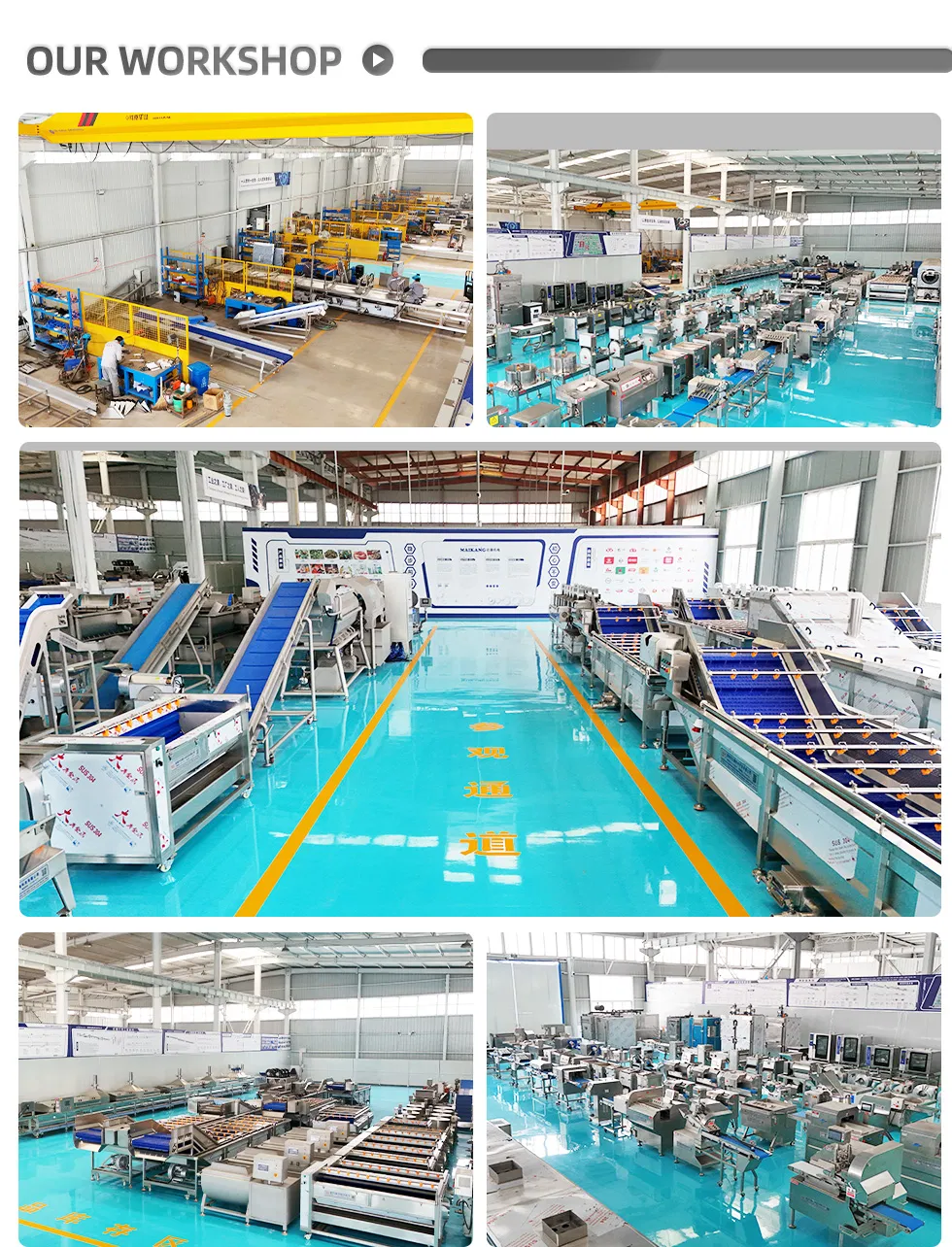

We are a leading manufacturer specializing in the R&D, production, sales, and after-sales service of food processing machinery. We provide customized, one-stop solutions including fruit and vegetable cleaning and juicing lines, thawing equipment, drying systems, and meat processing machinery. Adhering to the philosophy that "Quality Builds the Brand, Service Wins the Future," we strive to provide reliable equipment that enhances efficiency and product quality.

❓ Frequently Asked Questions

How much production experience do you have?

We have 11 years of production experience in food machinery and are a leading supplier in China.

What types of products do you manufacture?

Our range includes crate washers, fruit and vegetable cleaning and juicing lines, thawing equipment, heat pump drying ovens, and meat processing equipment.

Are you a direct manufacturer?

Yes, we have our own factory and professional R&D and sales departments to ensure the best pricing and service for our customers.

What is your after-sales service system?

We provide a one-year free warranty and lifetime maintenance. For overseas orders, we offer installation, commissioning, and training services.

Can we visit your factory to inspect the machines?

We highly appreciate factory visits and provide machine testing services and face-to-face project design discussions.

Can you help with customized designs for special requests?

Yes, our experienced mechanical designers can provide customized design solutions based on your factory layout and specific production requirements.
