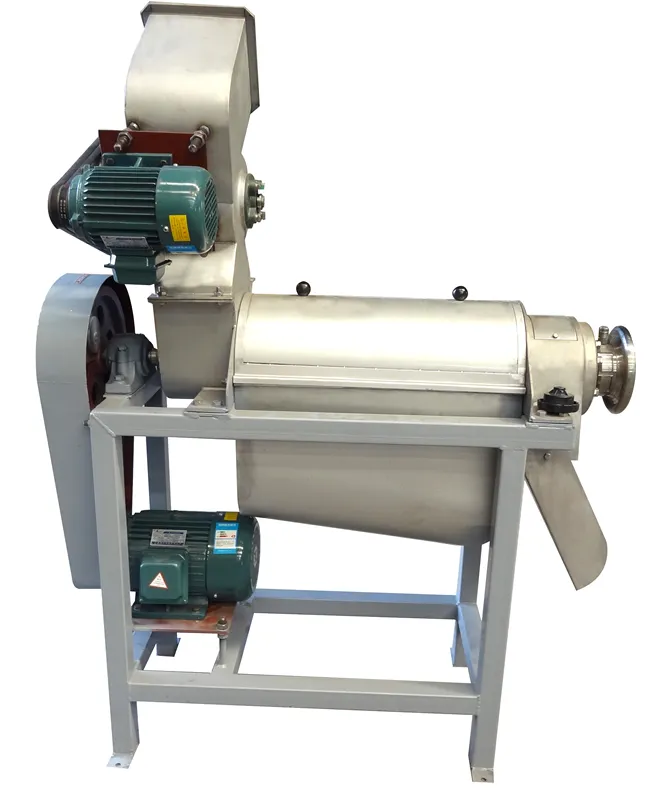

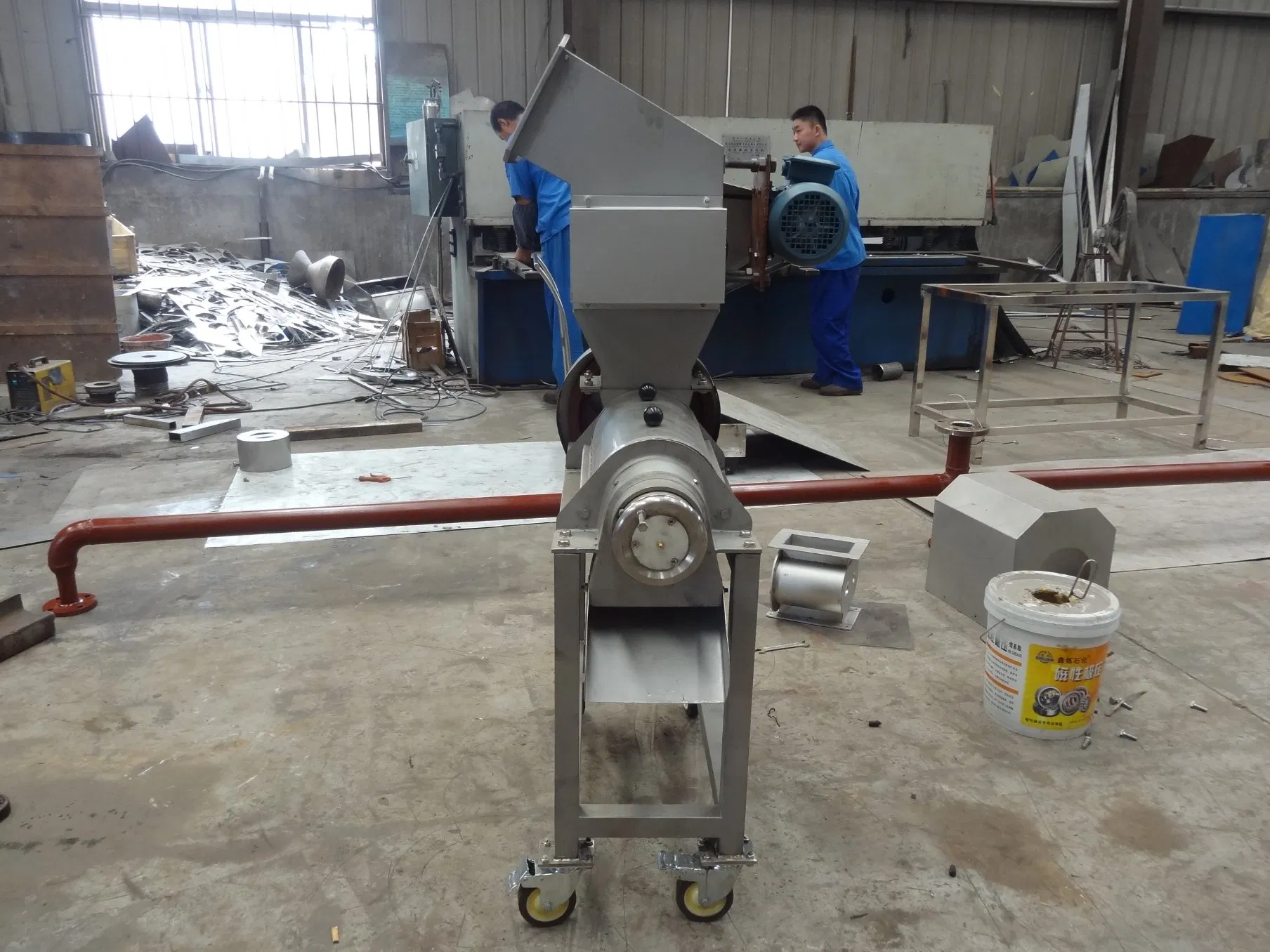

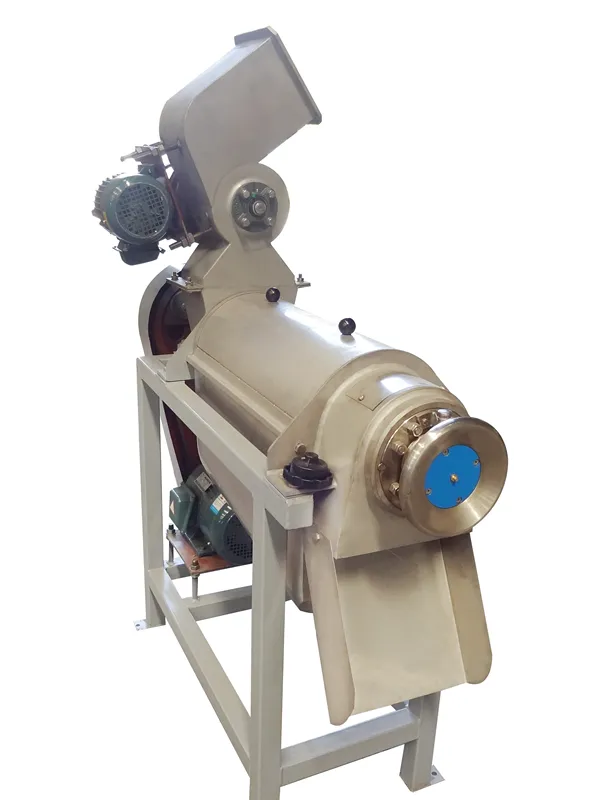

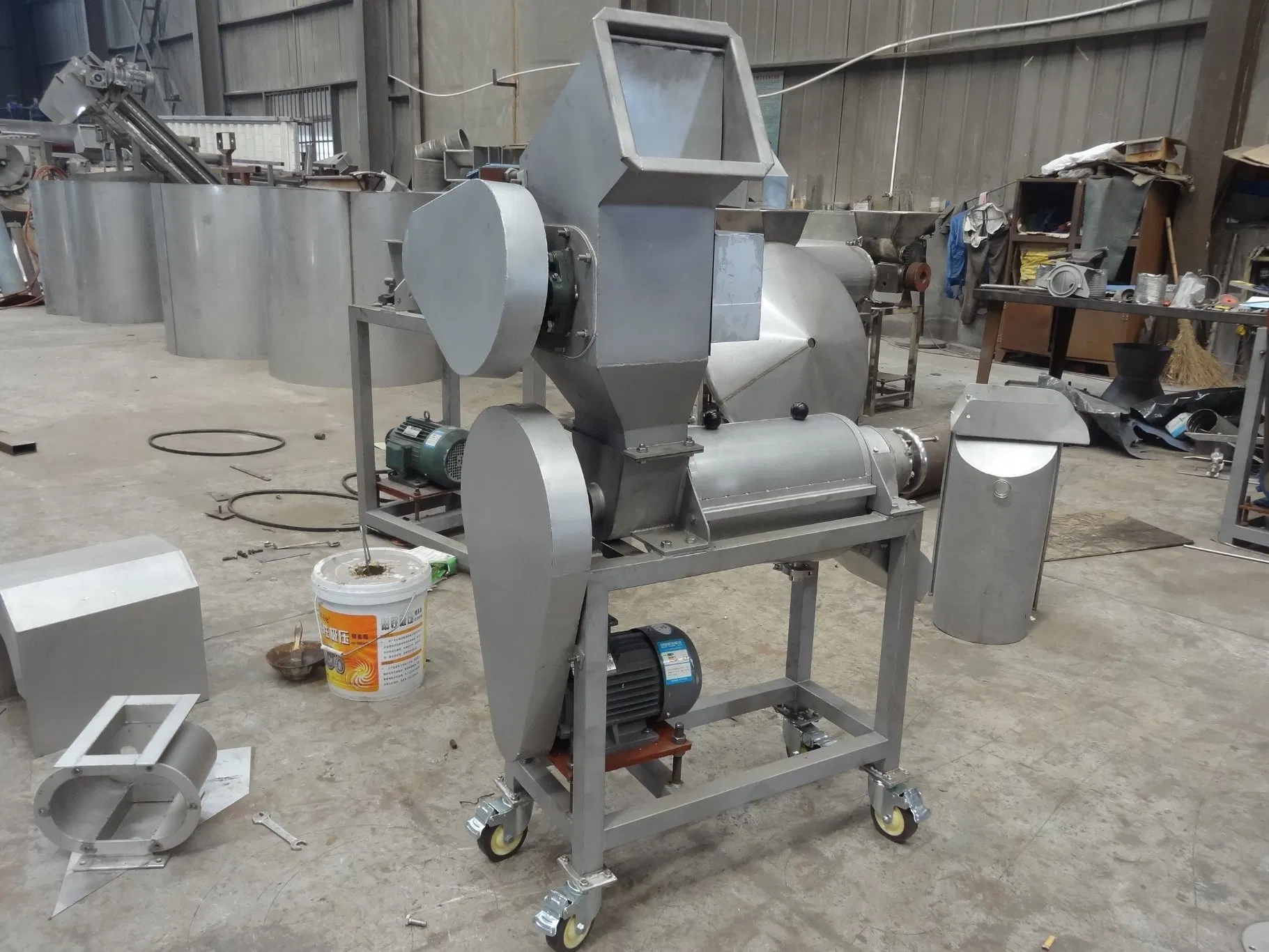

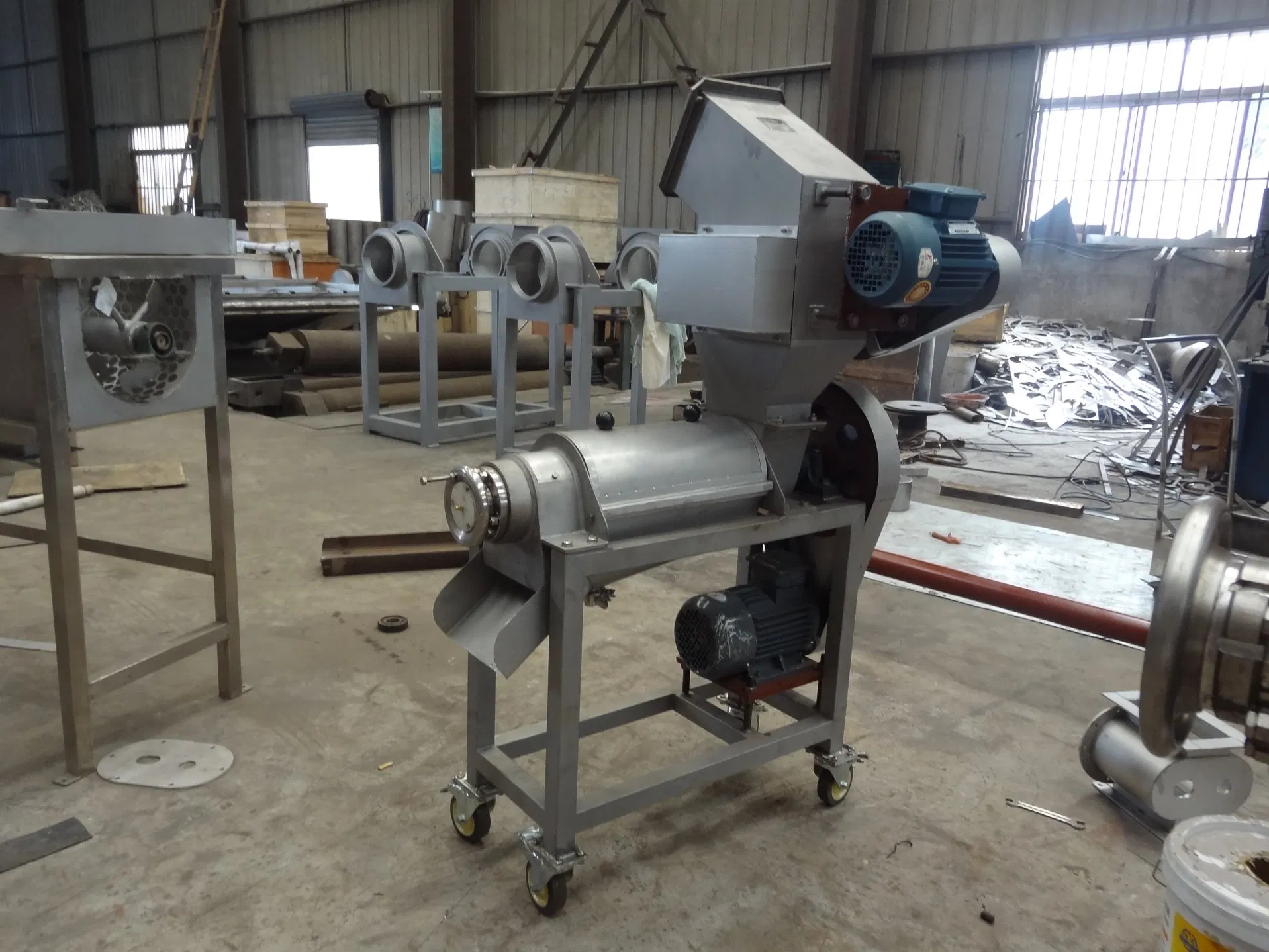

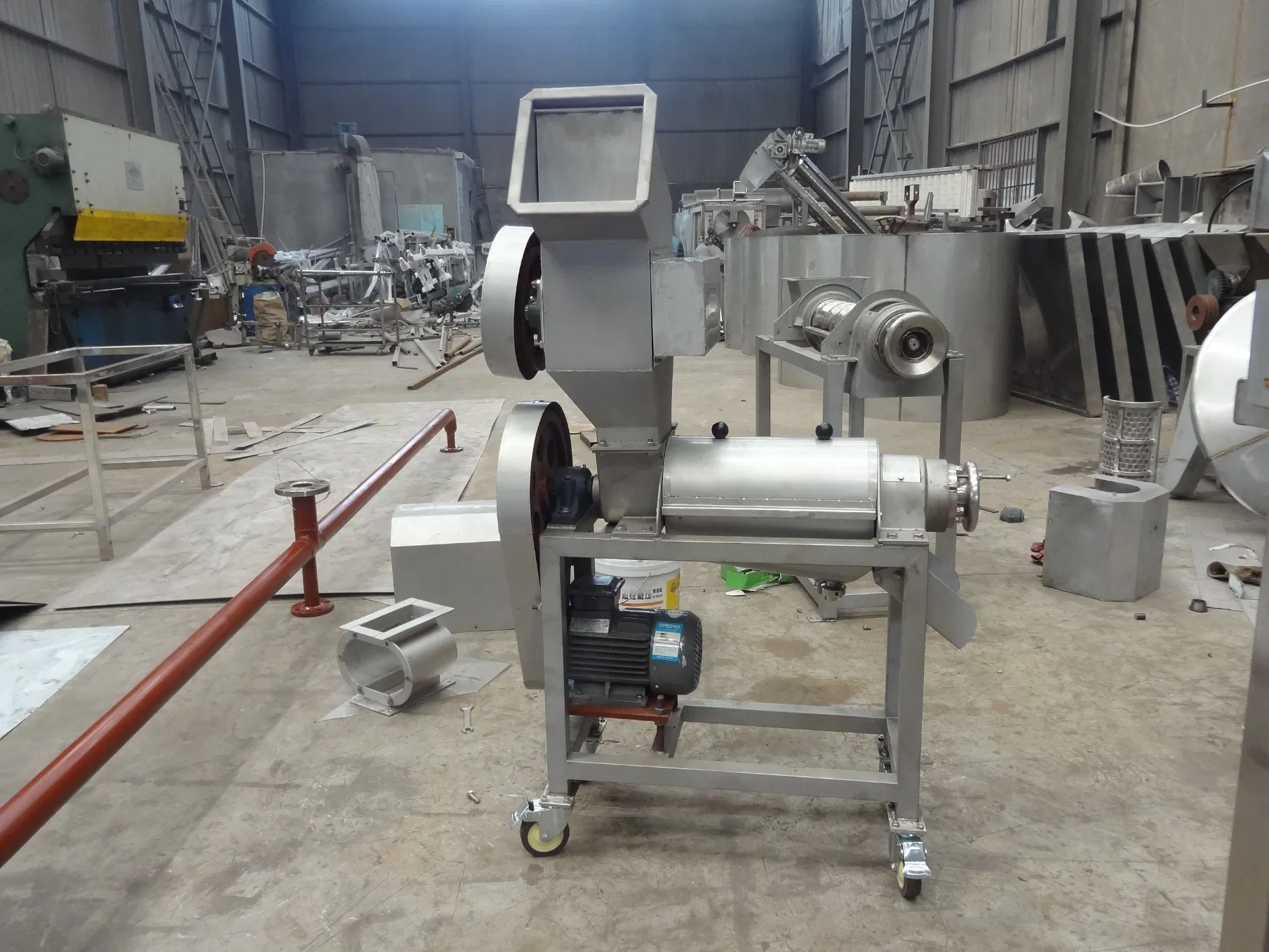

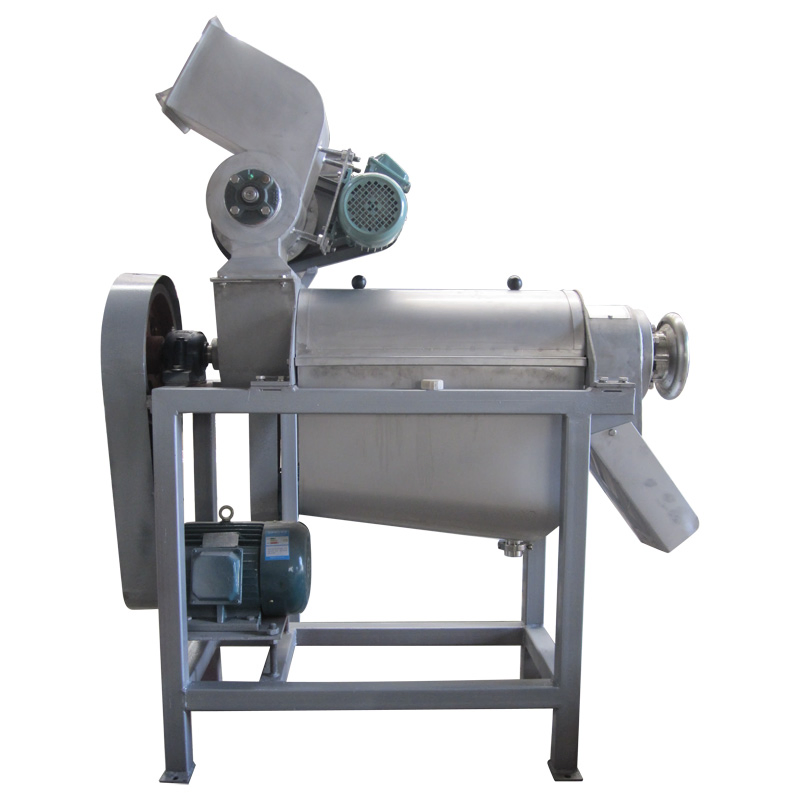

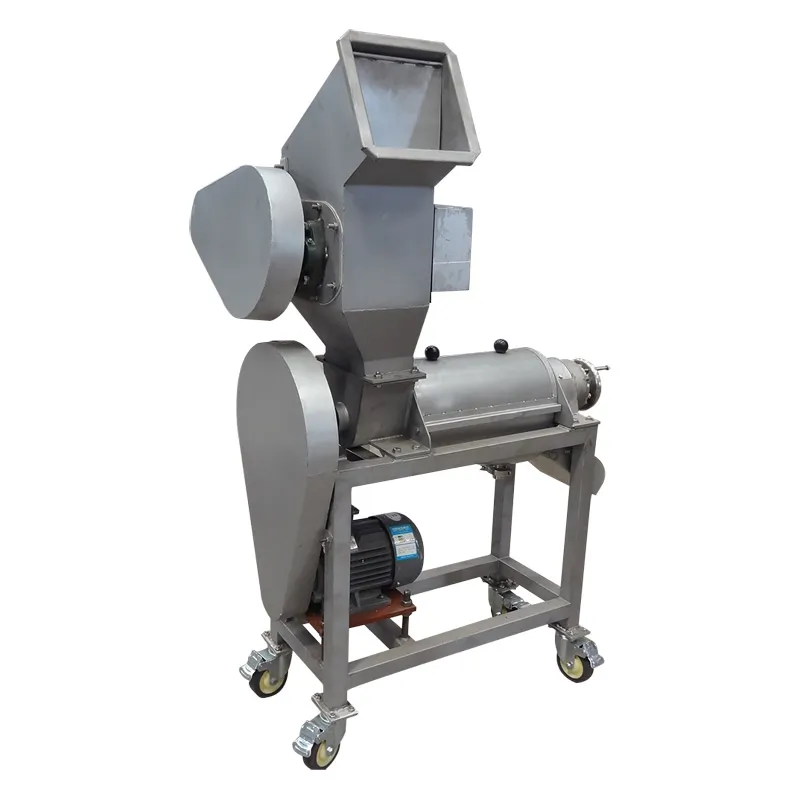

Introduction: The equipment is primarily designed to extract fruit and vegetable juices using a spiral mechanism. The screw pitch reduces gradually along the material residue outlet direction, causing volume contraction and effective juice extraction as the materials are pushed forward.

This spiral juicer combines fruit breaking and screw extraction functions, allowing for automatic residue removal. Different configurations are available: ordinary juicers for leafy vegetables like spinach and lettuce, and broken-function extractors for hard fruits like apples, pears, and carrots.

1. Materials enter via the feeding hopper and are pressurized by the boosting spiral. Extracted juice flows through the filter screen into the container, while waste is discharged through the ring interval between the spiral and the adjusting taper.

2. The extraction rate can be adjusted by moving the pressure adjusting head axially to change the interval size.
